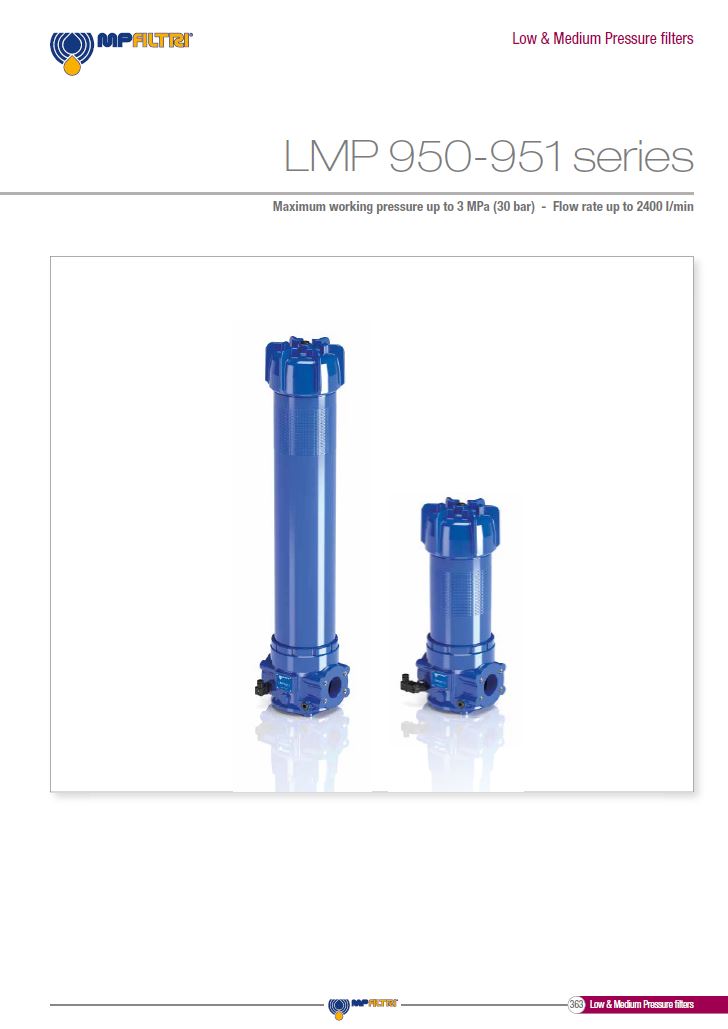

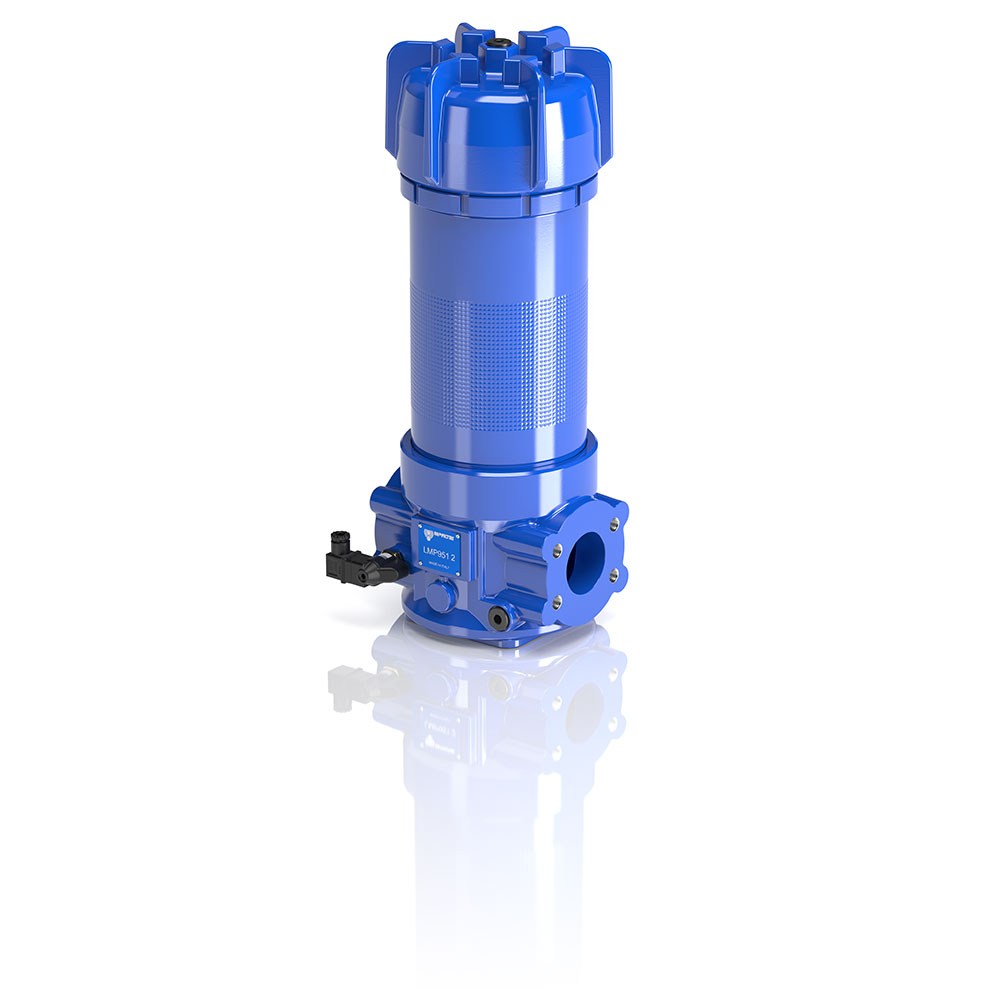

LMP 950 - 951

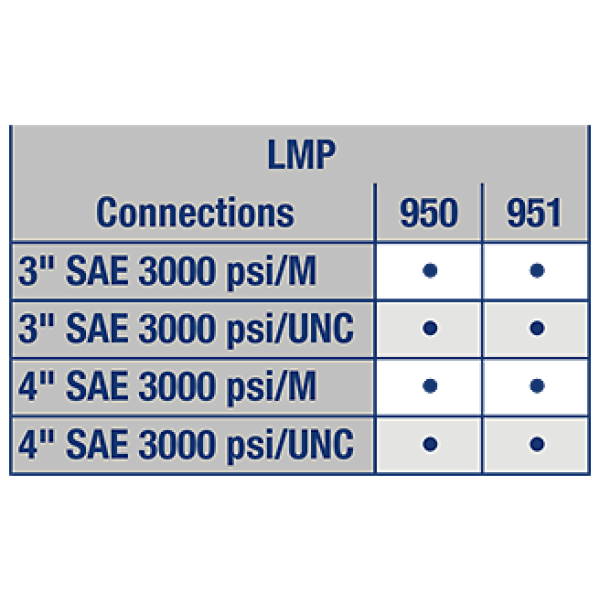

In-line filter, specifically designed for bowl up mounting. Working pressure up to 435 psi (30 bar), flow rates up to 634 gpm (2400 l/min), SAE code 61 flanged connections 3” and 4”.

In-line filters for high viscosity and high flow rate applications with a wide range of element media options, including water removal, particularly suited for off-line filtration circuits due to high dirt holding capacity. Bowl up design offers simple element change-out and minimal oil spillage.

See the relevant table for compatibility on fluids.
