IN-LINE FILTERS TO 1,160 PSI (LOW & MEDIUM PRESSURE)

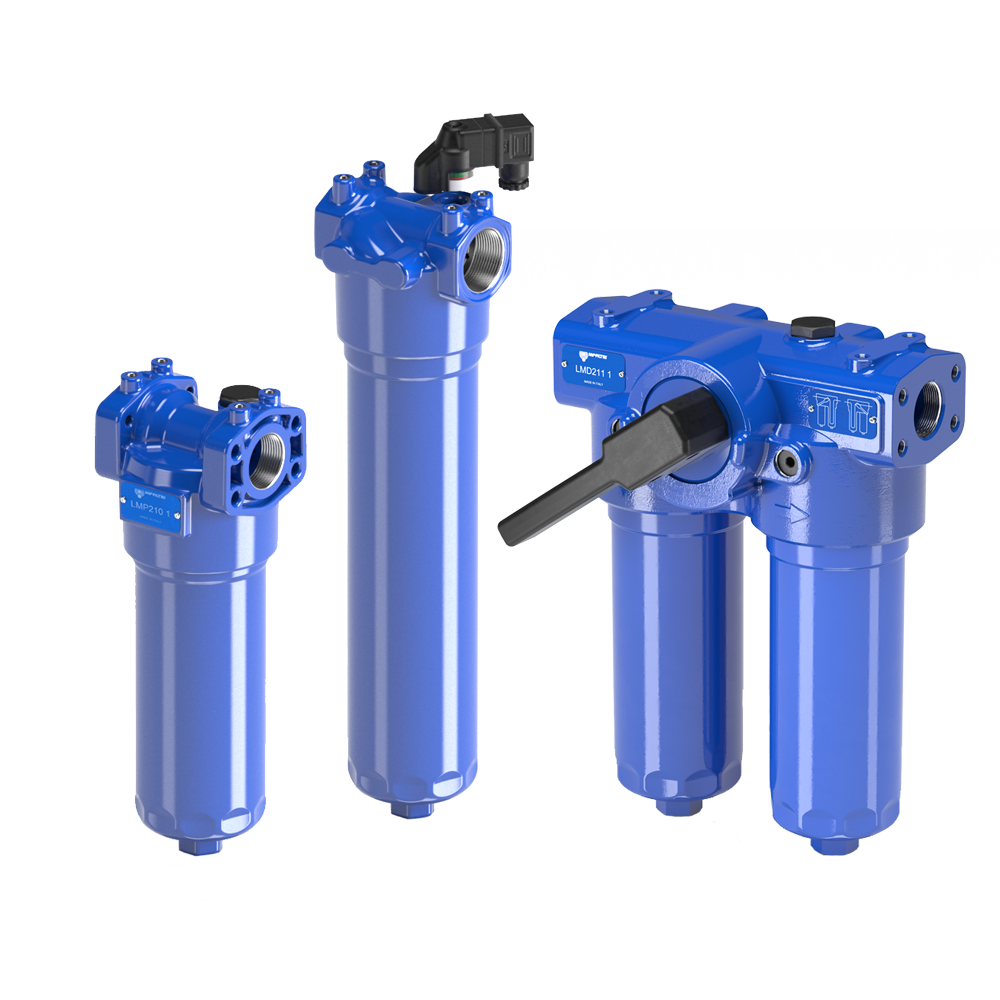

Designed as in-line return, pressure or off-line recirculation filtration protecting the most sensitive hydraulic system components. Boasting a robust design and a wide choice of options, the LMP series offers a diverse range of housing models and elements to suit low to high flow rates and maximum circuit protection. LMP filters are available as in-line threaded, in-line multi-ported and flanged connections to integrated into circuit control blocks, manifolds/headers. LMP filters are also available in duplex configurations for continuous filtration without any system service interruptions.

LFEX ELIXIR® SERIES

New in line filters


Low & medium pressure

Pmax 232 psi, 16 bar
Qmax 300 l/m, 79 gpm

HFEX ELIXIR® SERIES

In line filters


Pmax 508 psi, 35 bar
Qmax 300 l/m, 79 gpm

LMP 110

In-line filter (1160 PSI)


Pmax 1160 psi, 80 bar
Qmax 175 l/m, 46 gpm

LMP 112 / 123 MULTIPORT

In-line filter (1160 PSI)


Multiport design

Pmax 1160 psi, 80 bar
Qmax 175 l/m, 46 gpm

LMP 210 - 211

In-line filter (870 PSI)


Medium pressure

Pmax 870 psi, 60 bar
Qmax 365 l/m, 96 gpm

LMP 400 - 401

Medium pressure / high flow rate filter


Pmax 870 psi, 60 bar
Qmax 780 l/m, 206 gpm

LMP 430 - 431

Medium pressure / high flow rate filter


Pmax 870 psi, 60 bar
Qmax 780 l/m, 206 gpm

LMP 950 - 951

Inverted low pressure / very high flow rate filter


Pmax 435 psi, 30 bar
Qmax 2400 l/m, 634 gpm

LMP 952 - 953 - 954

Low pressure / very high flow rate filter in parallel


Pmax 363 psi, 25 bar
Qmax 4500 l/m, 1189 gpm

LMD 211

In-line duplex filter (870 PSI)


Pmax 870 psi, 60 bar
Qmax 200 l/m, 53 gpm

LMD 400 - 401 - 431

In-line duplex filter (232 PSI), medium flow rate


With various mounting options

Pmax 232 psi, 16 bar
Qmax 600 l/m, 159 gpm

LMD 951

Duplex (232 PSI), high flow rate, upside down mounting


In-line duplex filter, high flow rate, with various mounting options

Pmax 232 psi, 16 bar
Qmax 1200 l/m, 317 gpm

LDP & LDD DIN 24550

In-line Medium pressure simplex & duplex filters


DIN 24550 element design

Pmax 870 psi, 60 bar
Qmax 360 l/m, 95 gpm

Large mobile and small industrial applications suitable for use with various fluids

LDD DIN 24550

In-line Medium pressure duplex filters


DIN 24550 element design

Pmax 870 psi, 60 bar
Qmax 360 l/m, 95 gpm

LMP 900 - 901 DIN 24550

Low pressure / very high flow rate filter


DIN 24550 element design

Pmax 435 psi, 30 bar
Qmax 2000 l/m, 528 gpm

LMP 902 - 903 DIN 24550

Low pressure / very high flow rate filter in parallel


Pmax 290 psi, 20 bar
Qmax 3000 l/m, 793 gpm
