LMP 210 - 211

In-line filter. Working pressure up to 870 psi (60 bar), flow rates up to 87 gpm (330 l/min), threaded connections from 1” to 1 1/2” BSP/NPT/SAE (LMP 211) and SAE code 61 flanged connections up to 1 1/2” SAE 3000 PSI (LMP 210).

FILTER SIZING    3D DOWNLOAD   TECHNICAL BROCHURE
  • FEATURES & BENEFITS
  • TECHNICAL DATA
  • LITERATURE
  • VIDEO
Durable In-line filter with a wide range of element media options, including water removal. Ideal for high flow charge pump supply, return line and off-line filtration circuits with a wide range of Interchangeable mounting pattern to Schroeder RLT series offers a perfect alternative.

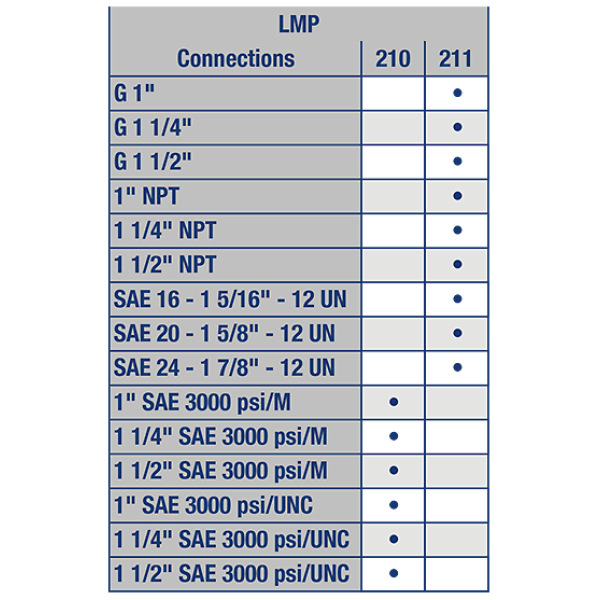

CONNECTIONS
LMP210_211

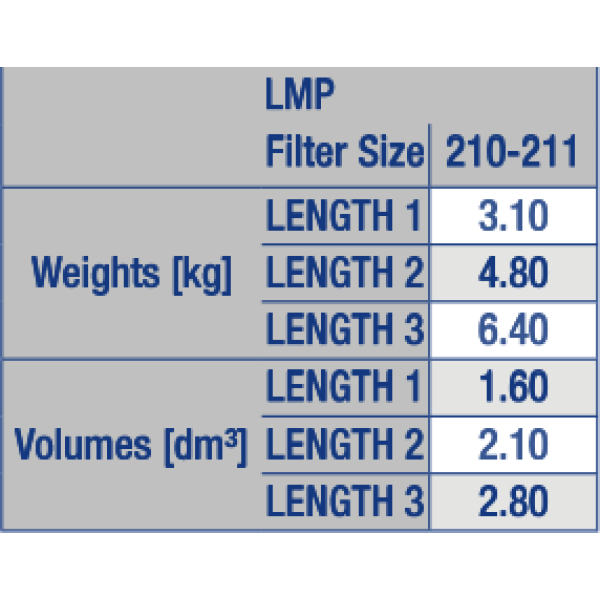

WEIGHTS AND VOLUMES
LMP210_211
CATALOGUES
Low & Medium Pressure Catalogue
LMP210-211 low and medium pressure
Hydraulic Filtration Catalogue
Low medium pressure accessories
BROCHURES
Water Removal brochure
Hydraulic Filtration brochure
Product range brochure
