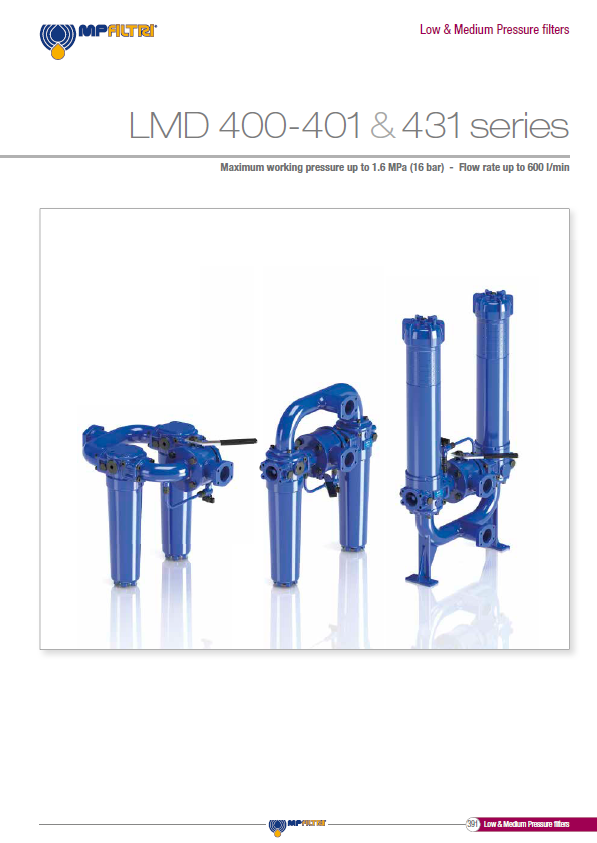

LMD 400 - 401 - 431

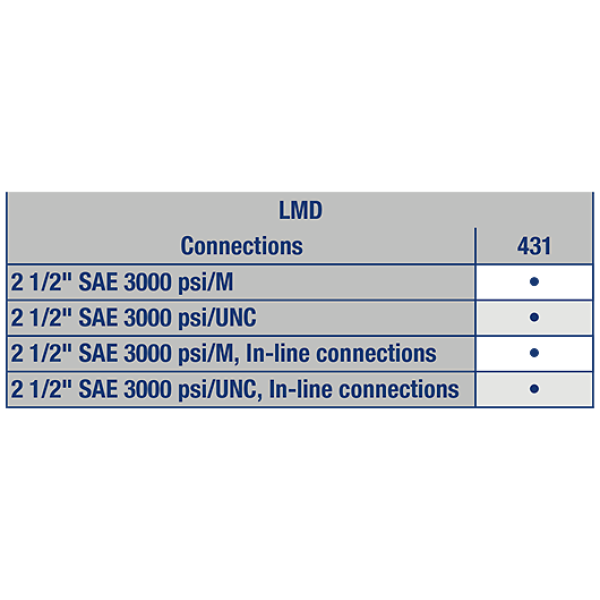

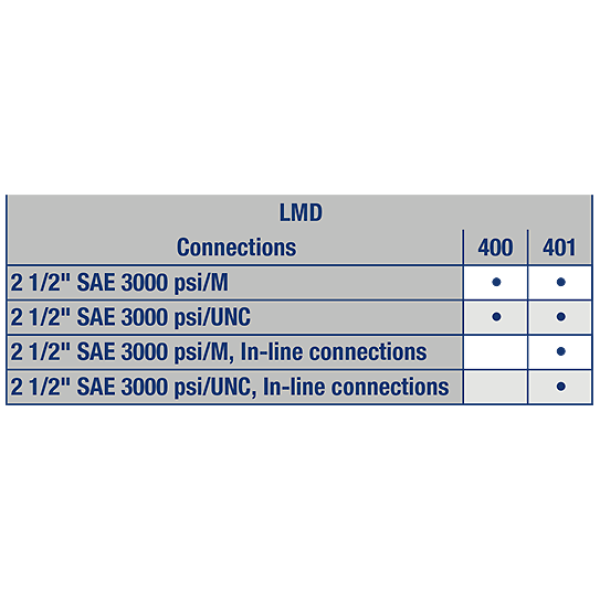

Duplex filter for in-line mounting with drain plug (LMD 400-401) and breather plug for bowl up mounting (LMD 431). Working pressure up to 232 psi (16 bar), flow rate up to 156 gpm (590 l/min), SAE code 61 flanged connections 2 1/2”.

In-line duplex filter for medium flow rate and low pressure with a wide range of element media options, including water removal designed to allow element changeout in continuous duty machine operations, available in bowl-down or bowl-up design offers simple element changeout and minimal oil spillage.

See the relevant table for compatibility on fluids.
