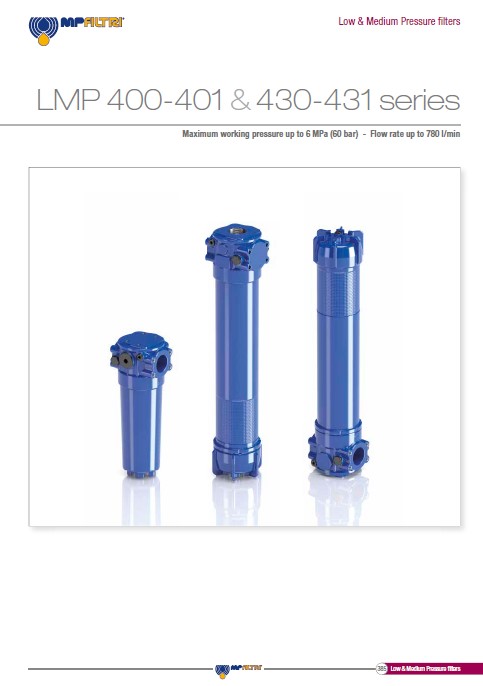

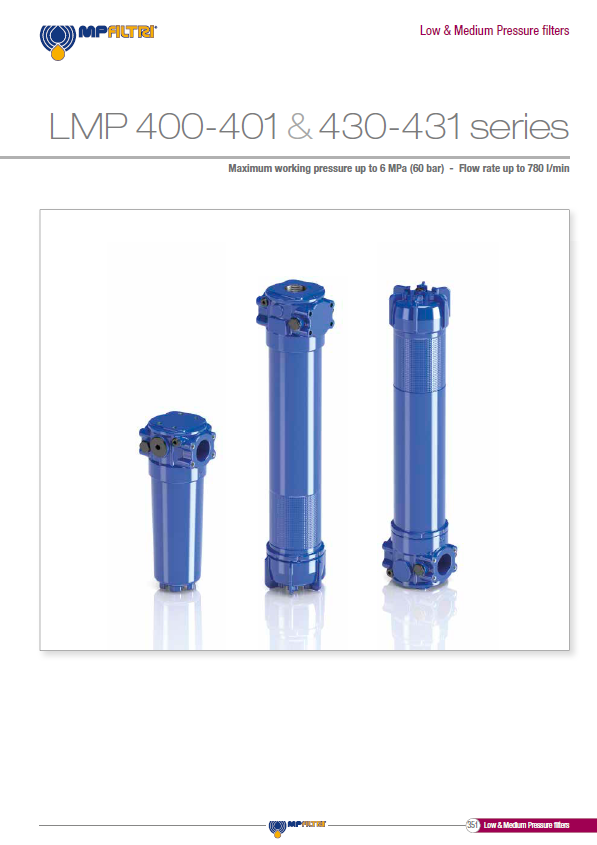

LMP 400 - 401 - 430 - 431

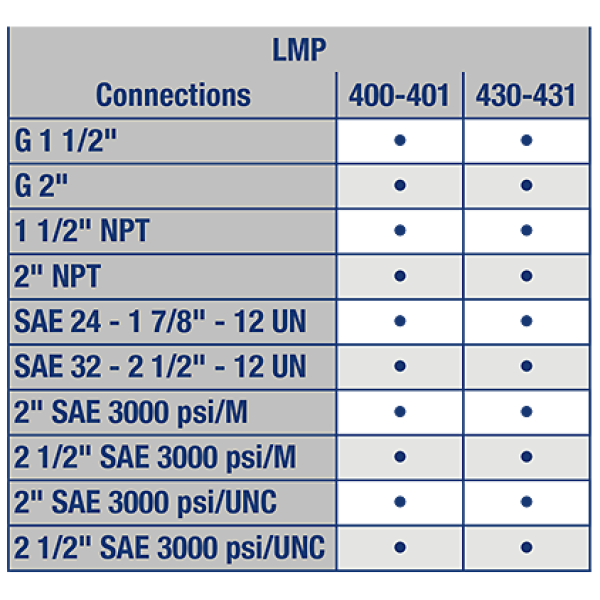

In-line filter with drain plug (LMP 400-401) and breather plug for bowl up mounting (LMP 430-431). Working pressure up to 870 psi (60 bar), flow rates up to 195 gpm (740 l/min), threaded connections from 1 1/2” and 2” BSP/NPT/SAE and SAE code 61 flanged connections 2” and 2 1/2”.

FILTER SIZING 3D DOWNLOAD TECHNICAL BROCHURE

FEATURES & BENEFITS
LITERATURE
VIDEO

In-line filters for high viscosity and high flow rate applications with a wide range of element media options, including water removal, particularly suited for off-line filtration circuits due to high dirt holding capacity. Bowl up design available in length 5 & 6 offers simple element changeout and minimal oil spillage.

CATALOGUES

Low & Medium Pressure Catalogue
