LFEX ELIXIR® SERIES

Low pressure filters for protection of sensitive components in low pressure hydraulic systems, working pressure up to 1.6 MPa (16 bar), flow rates up to 300 l/min (79 gpm), female threaded connections up to 1 1/4", and SAE connections up to 1 5/8”.

FILTER SIZING   TECHNICAL BROCHURE
  • FEATURES & BENEFITS
  • TECHNICAL DATA
  • LITERATURE
  • VIDEO
Directly interchangeable with the spin-on series with enhanced performance characteristics.

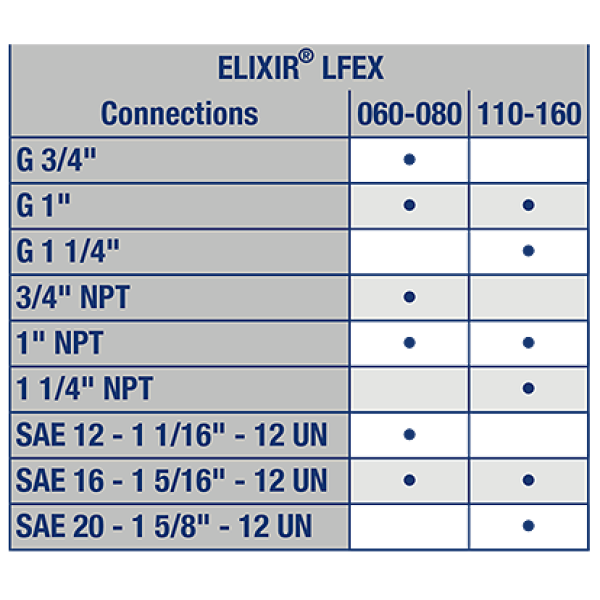

CONNECTIONS
LFEX

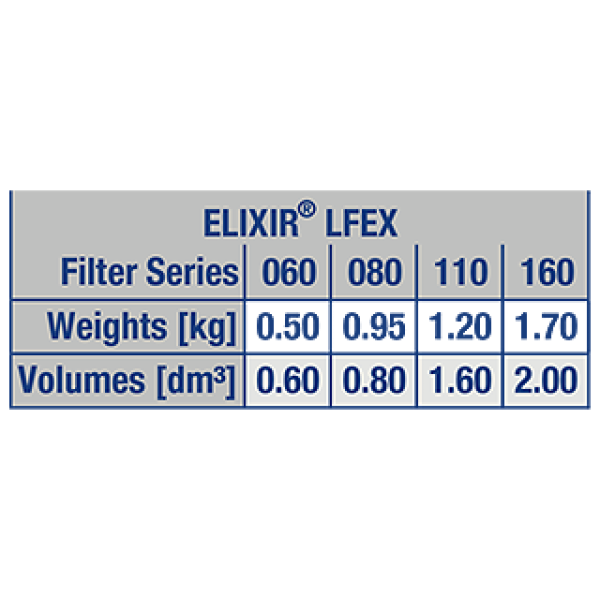

WEIGHTS AND VOLUMES
LFEX
BROCHURES

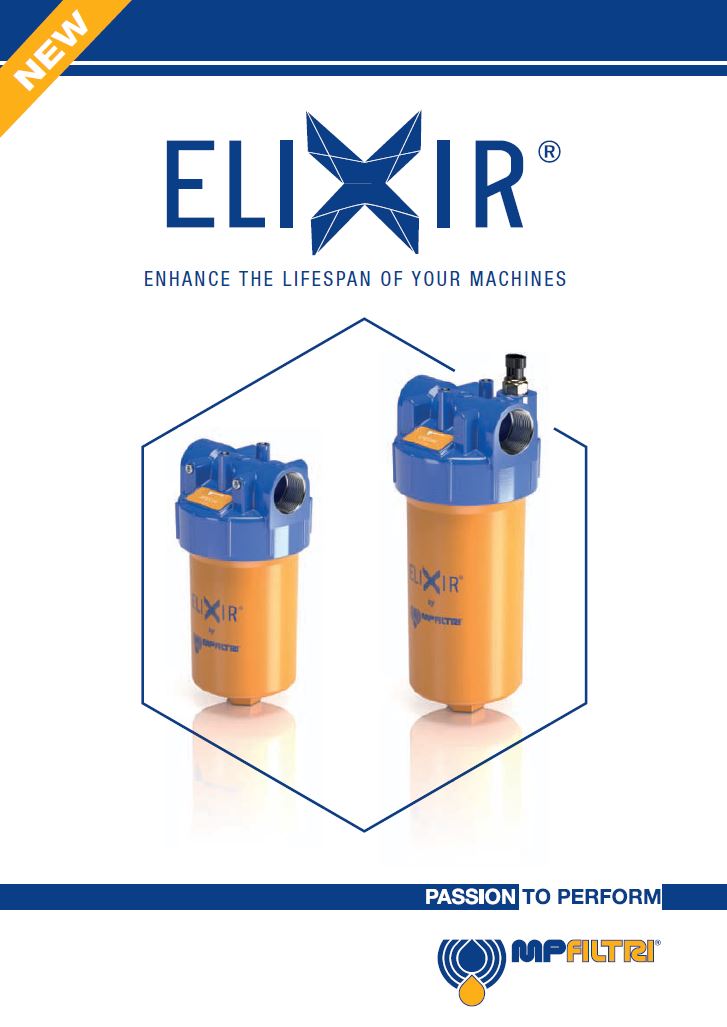

ELIXIR technical brochure
Hydraulic Filtration Product Range
CATALOGUES

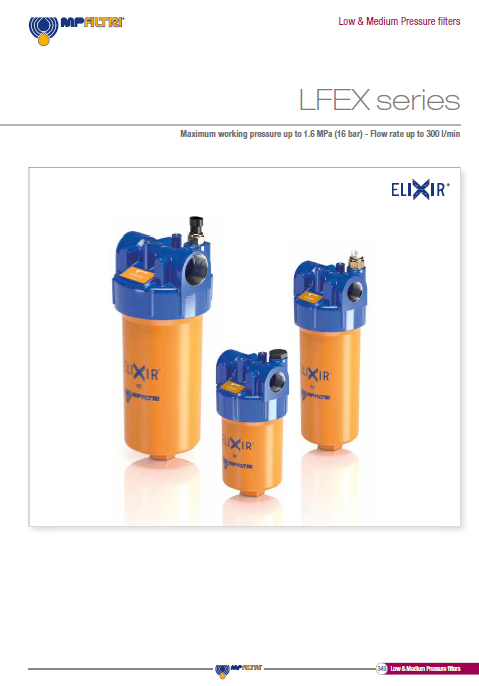

Hydraulic Filtration Catalogue
Low medium pressure accessories
