RETURN FILTERS

Return filters perform the task of filtering fluid and preventing particles from entering the system externally or from internal wear and tear of components. These filters are normally mounted to the reservoir fully or semi-immersed. The position of the filters ensures returning fluid takes place in an immersed condition in all operating conditions, preventing the creation of foam and vortexes in the tank that can cause aeration and cavitation in pumps. For convenience the bowl and filter element can be removed from the housing to service without disconnecting the filter from the rest of the system.

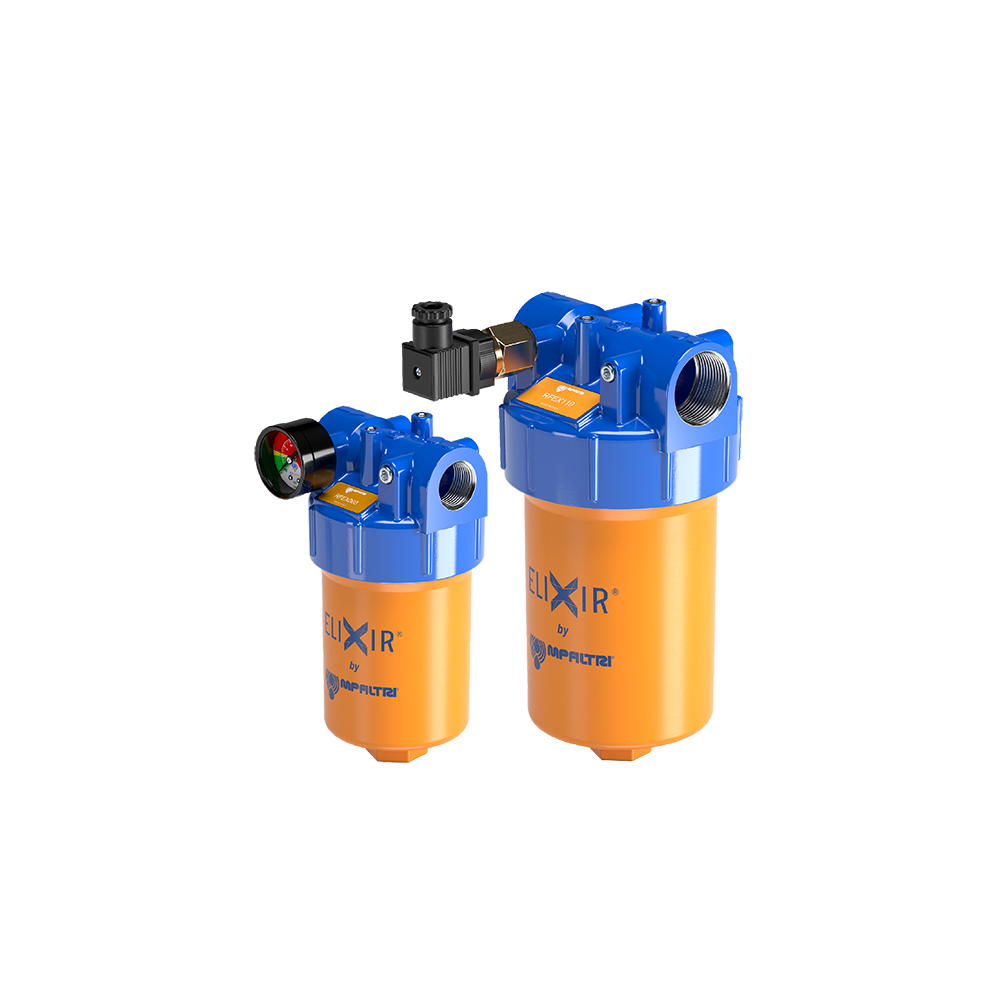

RFEX ELIXIR® SERIES

NEW in line filter


Return

Pmax 232 psi, 16 bar
Qmax 260 l/m, 69 gpm

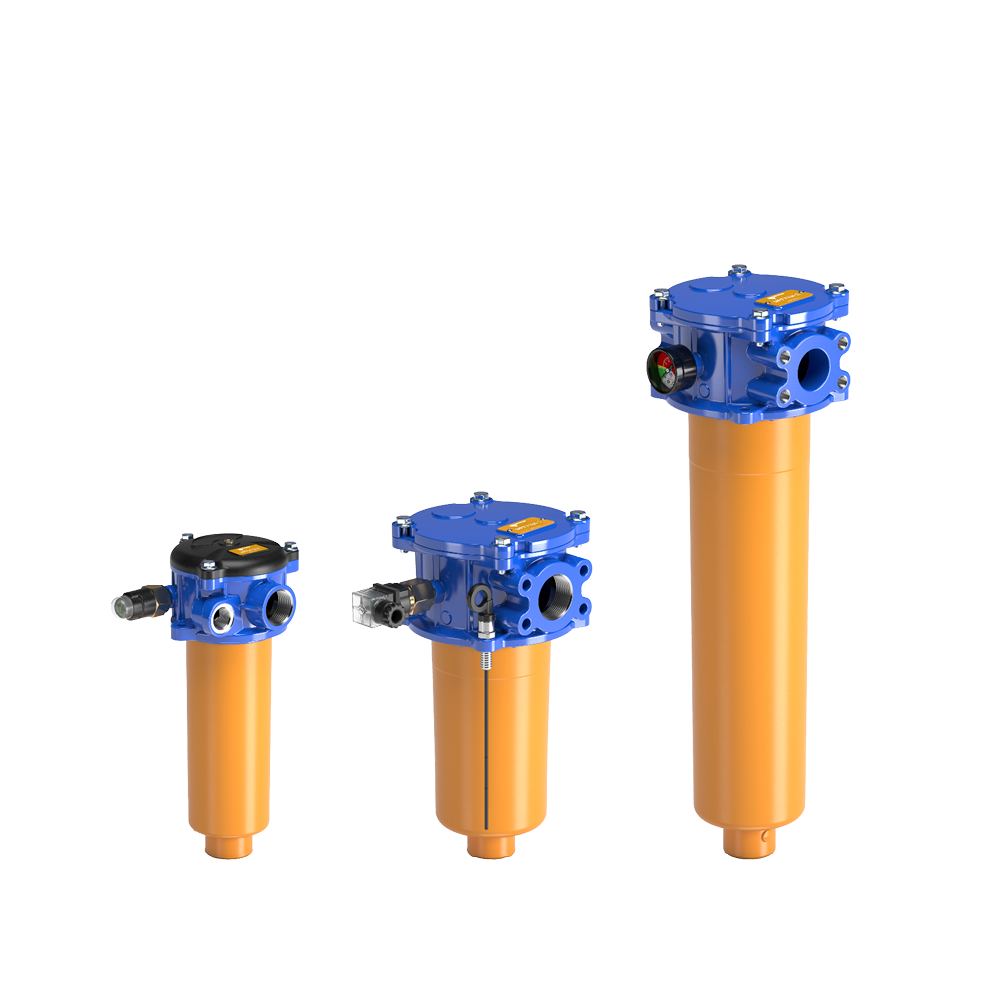

MPFX

Tank top return filter


MYclean Design

Pmax 116 psi, 8 bar
Qmax 900 l/m, 238 gpm

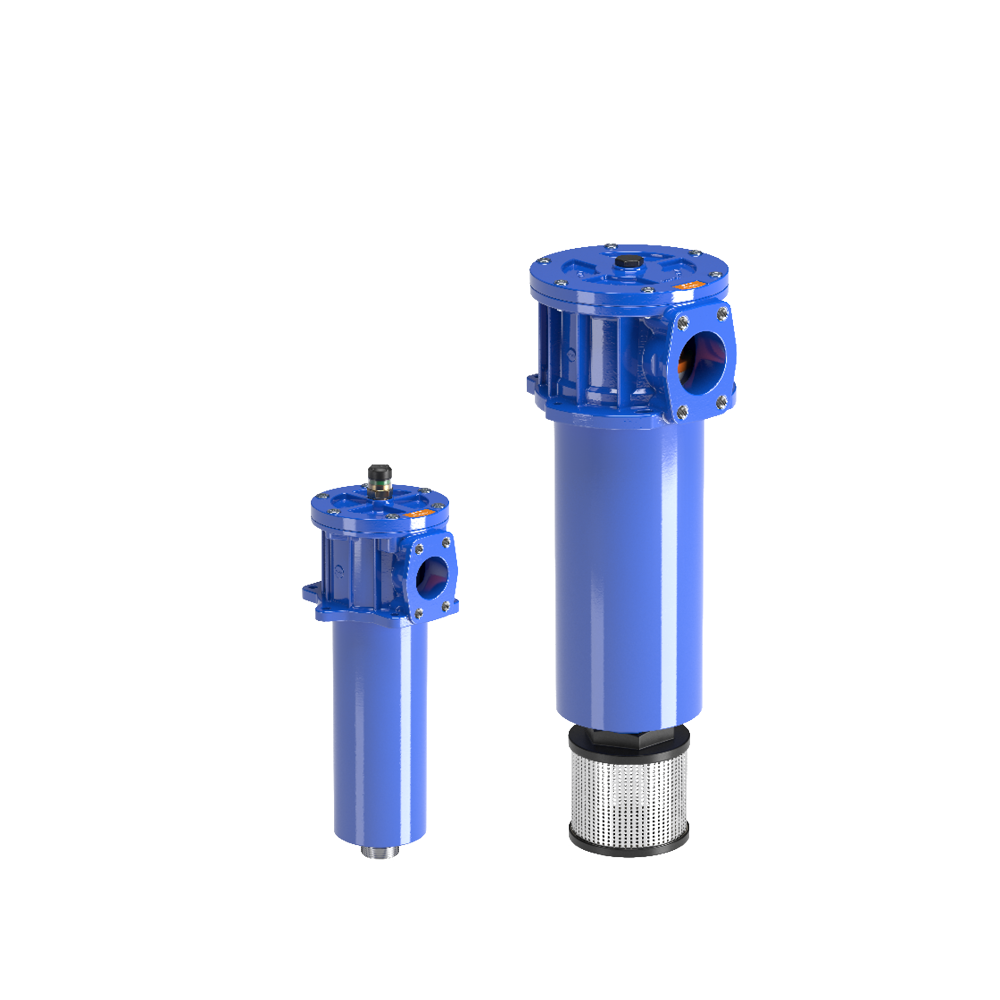

MPLX

Heavy duty tank top filter


Pall 8420 & 8520 interchange

Pmax 145 psi, 10 bar
Qmax 1800 l/m, 476 gpm

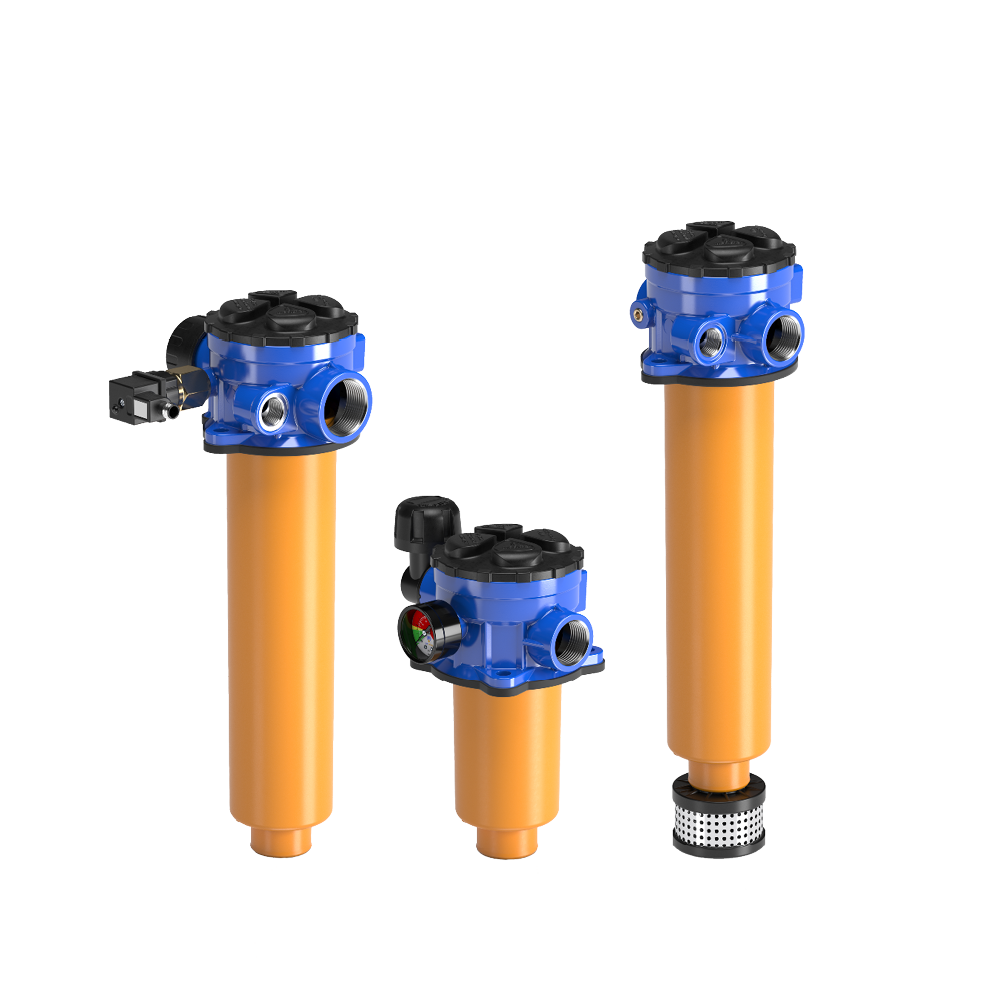

MPTX

Tank top return filter with air breather


Myclean design

Pmax 116 psi, 8 bar
Qmax 300 l/m, 79 gpm

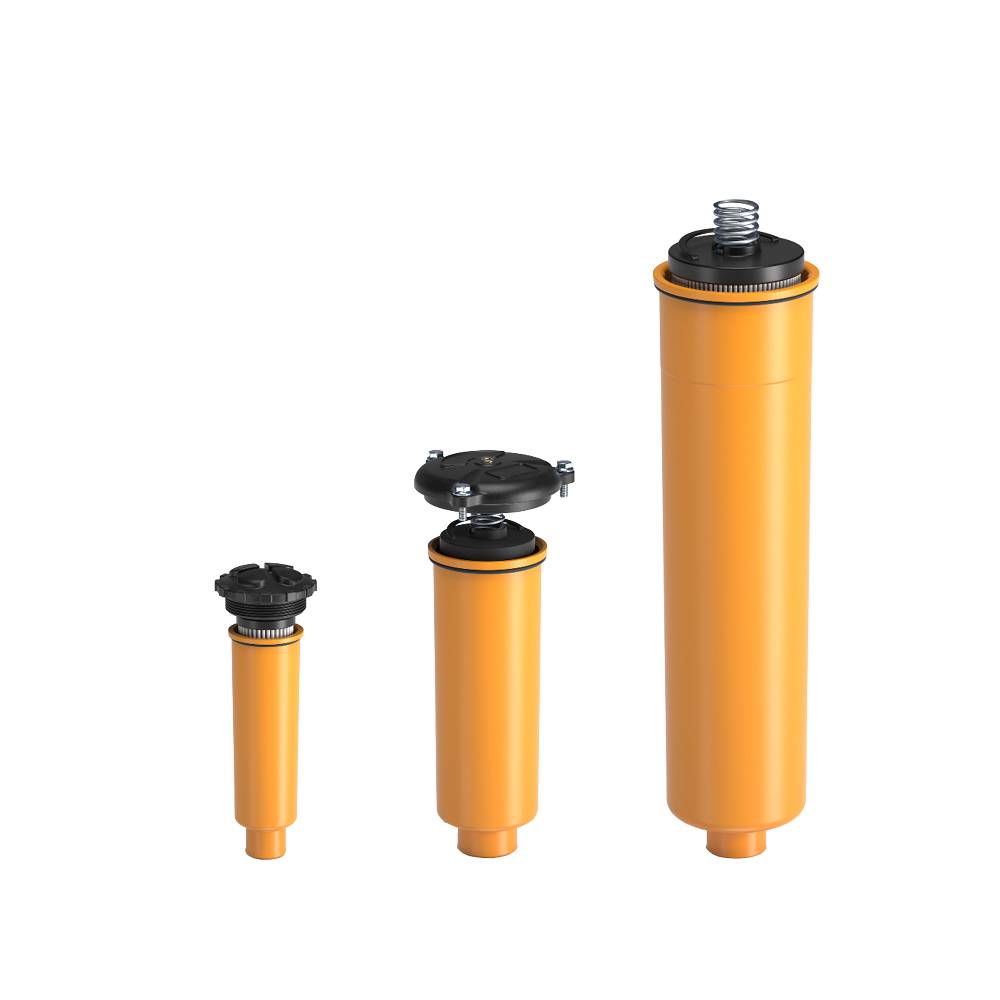

MFBX

In-tank filter


In-tank return filter - Dirt Box Capability in MYclean Design

Pmax 116 psi, 8 bar
Qmax 700 l/m, 185 gpm

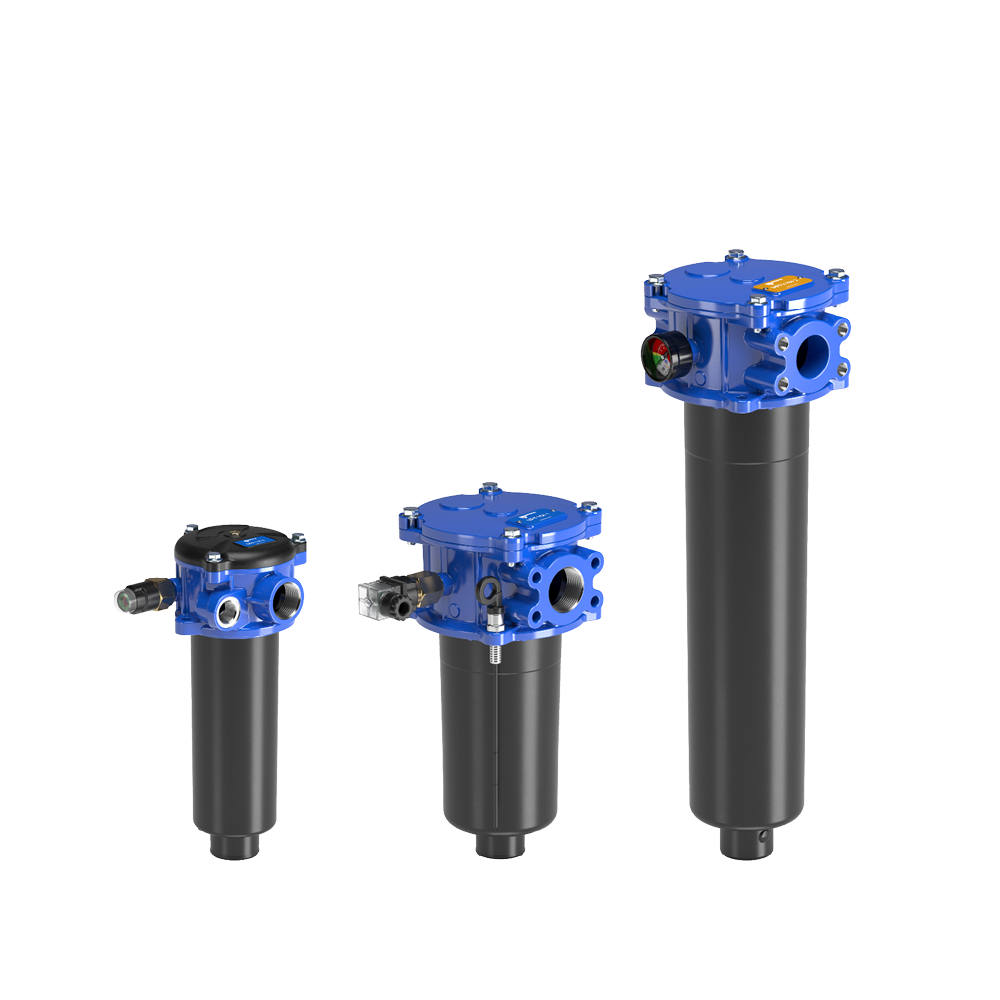

MPF

Tank top return filter


Pmax 116 psi, 8 bar
Qmax 900 l/m, 238 gpm

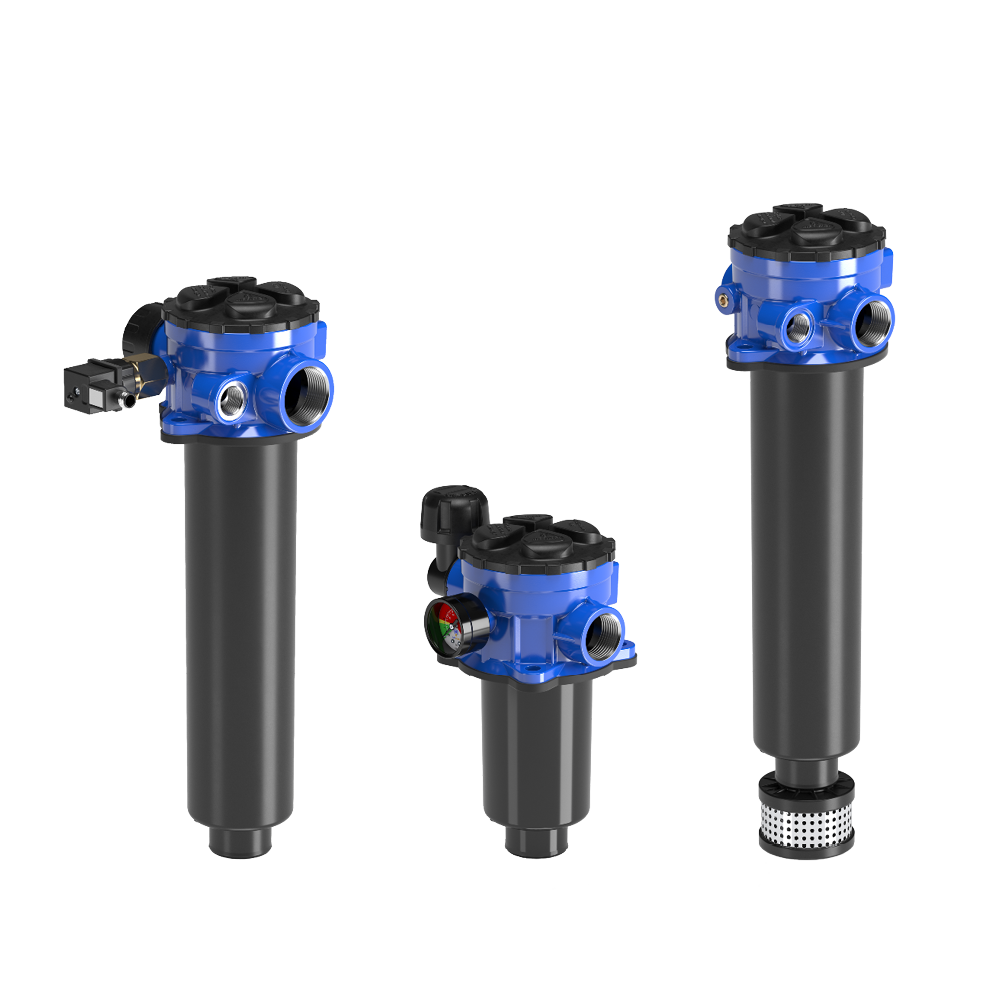

MPT

Tank top return filter with air breather


Pmax 116 psi, 8 bar
Qmax 300 l/m, 79 gpm

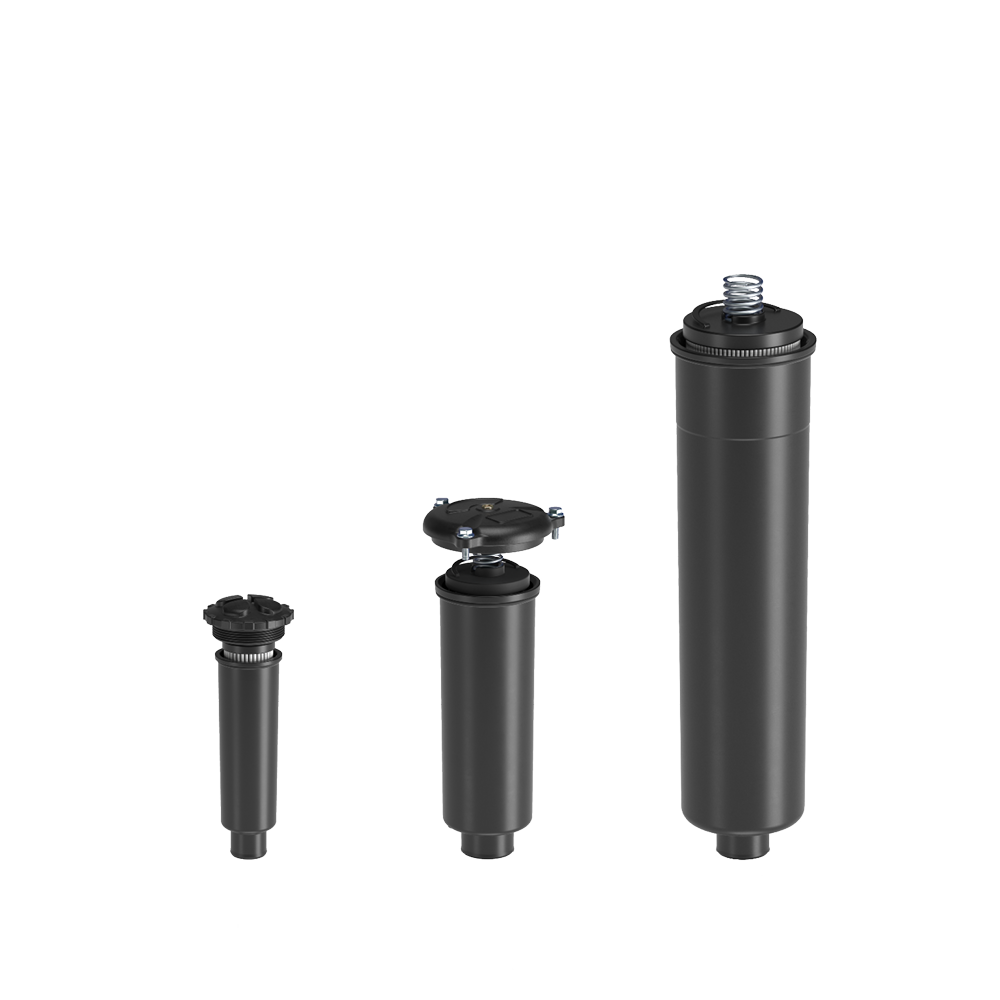

MFB

In-tank filter


In-tank return filter - Dirt Box Capability

Pmax 116 psi, 8 bar
Qmax 700 l/m, 185 gpm

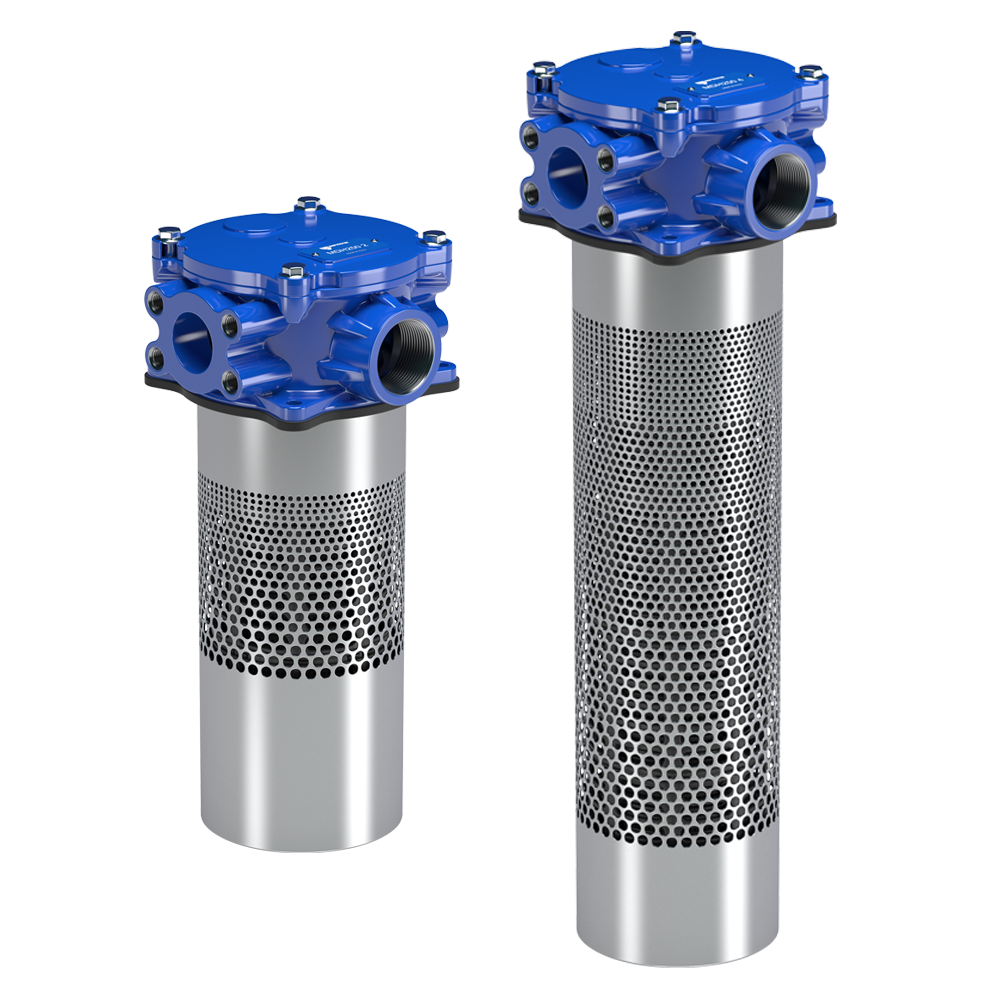

MDH

Deaeration return filter to reduce air flow into the tank


Pmax: 10 bar, 145 psi
Qmax: 500 l/m, 132 psi

Designed specifically for mobile tanks or self-propelled machines

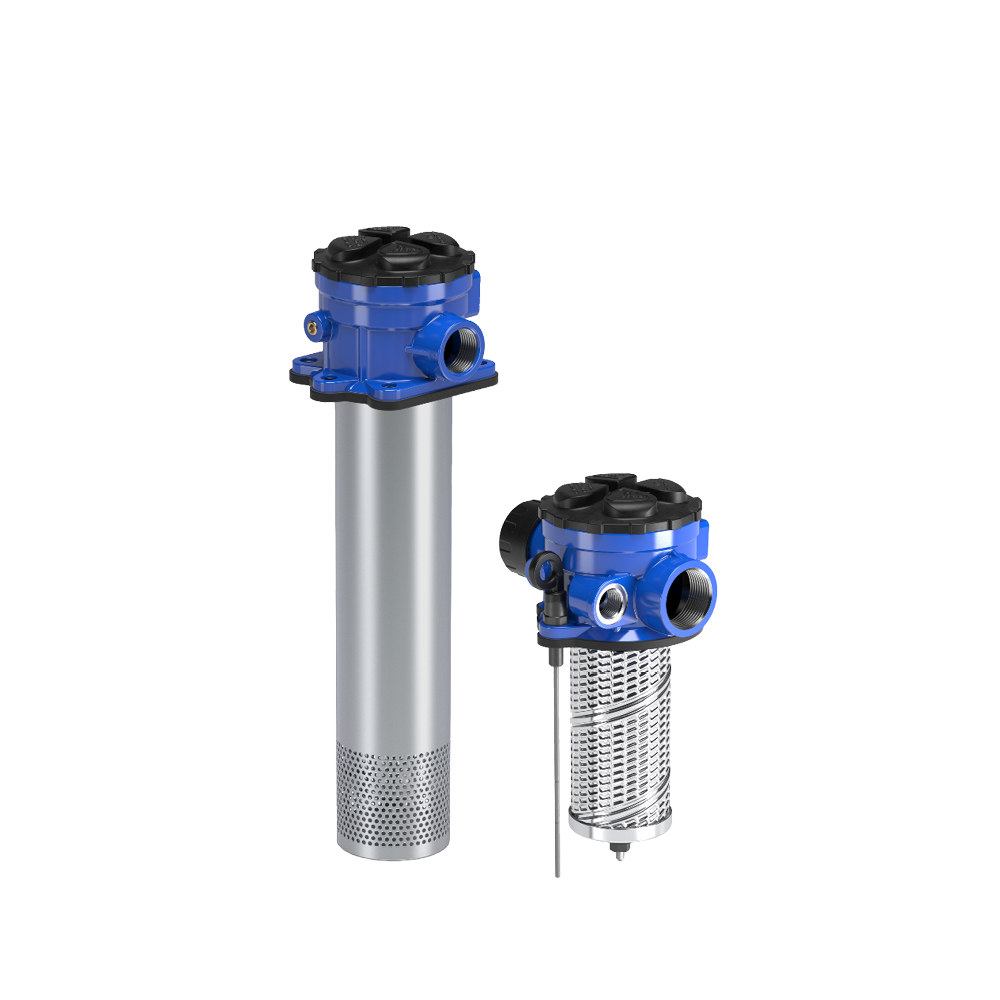

MPH

High flow rate filter for heavy duty industrial applications


With integral air breather

Pmax 145 psi, 10 bar
Qmax 3500 l/m, 925 gpm

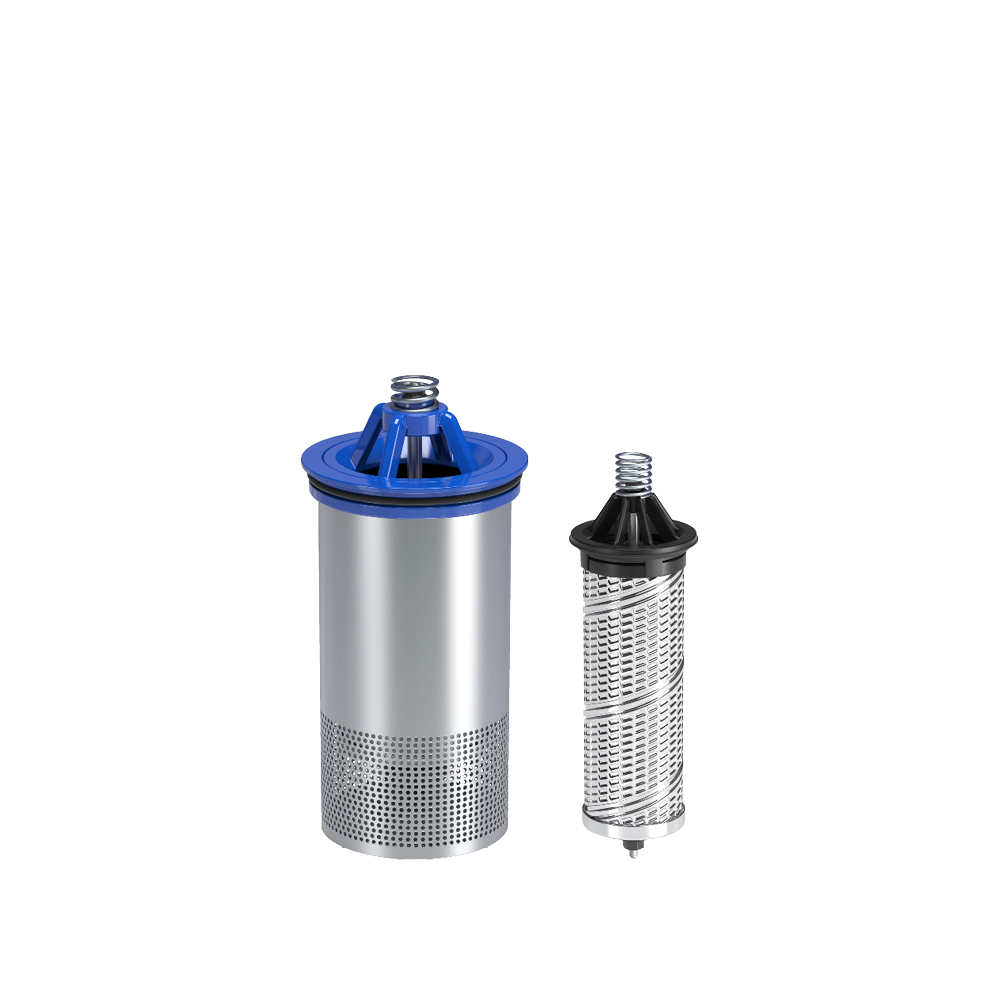

MPI

Heavy duty industrial applications in-tank filter


Dirt Box Capability

Pmax 145 psi, 10 bar
Qmax 3500 l/m, 925 gpm

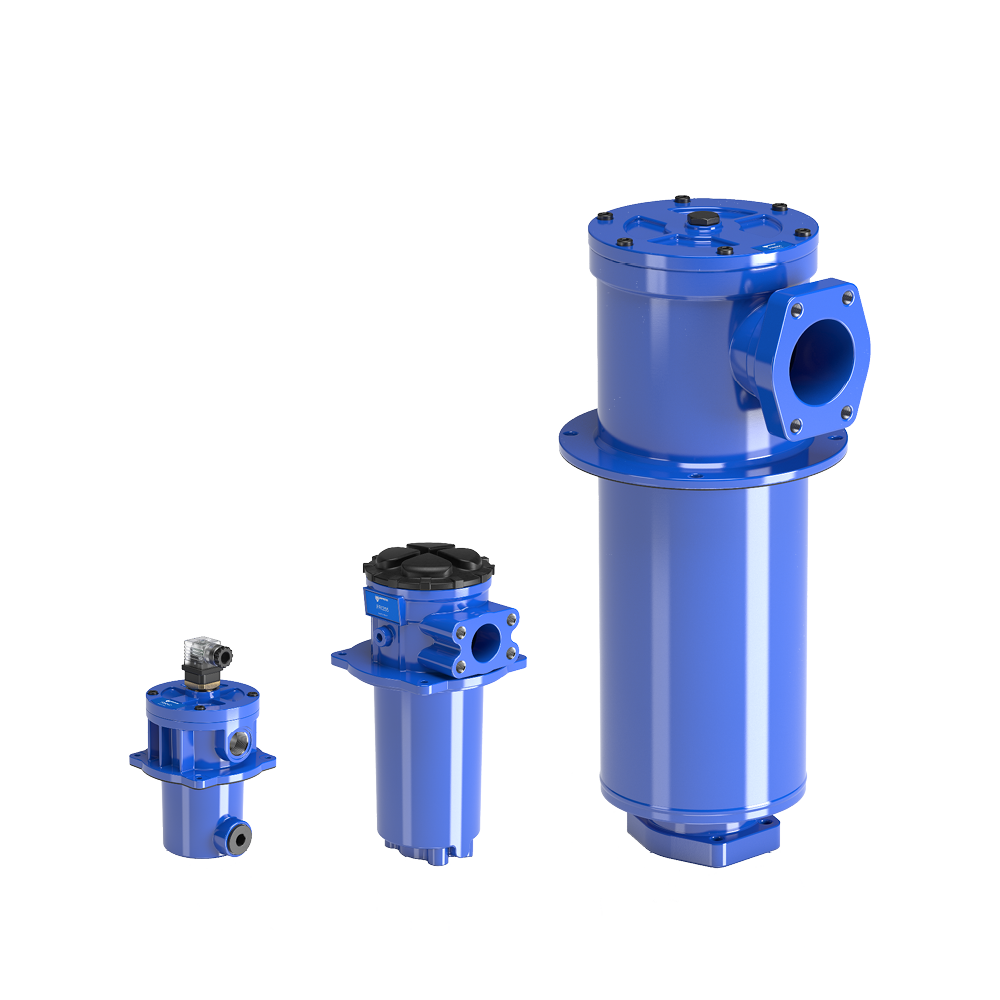

FRI

Heavy duty in-line or tank top mount filter


Pmax 290 psi, 20 bar
Qmax 2500 l/m, 660 gpm

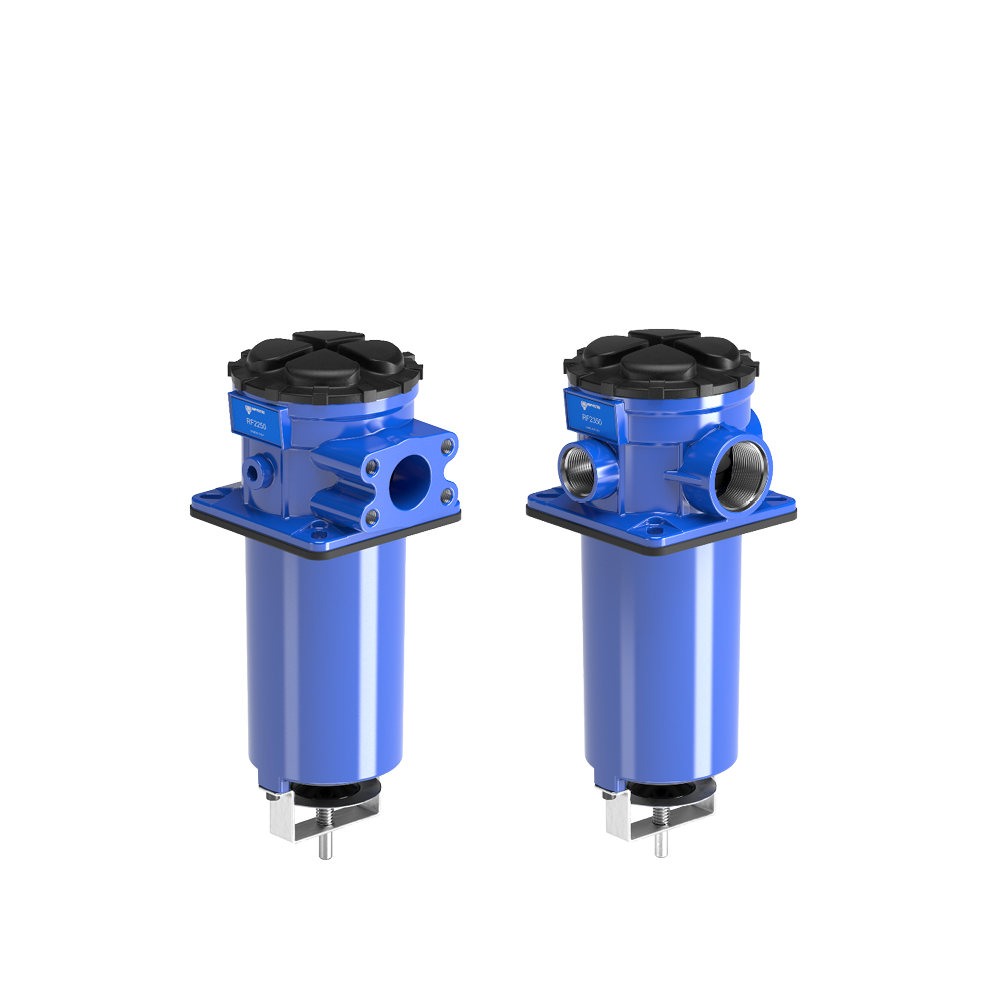

RF2

Side-tank mounted filter with shut-off valve


Pmax 290 psi, 20 bar
Qmax 615 l/m, 162 gpm
