RETURN/SUCTION FILTERS

Combination Return / Suction filters are designed to filter an open loop return circuit and provide suction line boost to the closed loop charge pump in hydrostatic transmission applications. Utilizing the 7 PSI back pressure valve ensures positive pressure to the charge pump inlet minimizing the potential for cavitation, especially during cold start conditions. Many options are available including suction line safety screen and the possiblity to mount on the side or bottom of the tank with anti-drain protection when servicing the filter element.

MRSX

Tank top combination return/suction filter


Myclean design

Pmax 145 psi, 10 bar
Qmax 79 gpm, 300 l/m

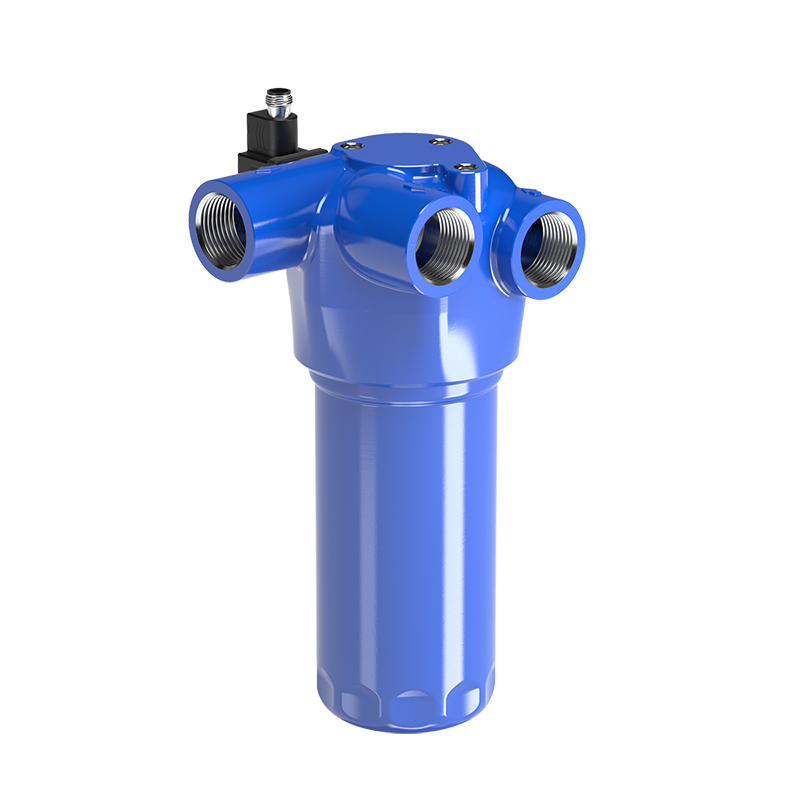

LMP 124 MULTIPORT

In-line combination return/suction filter


Multiport Design

Pmax 1160 psi, 80 bar
Qmax 53 gpm, 200 l/m
