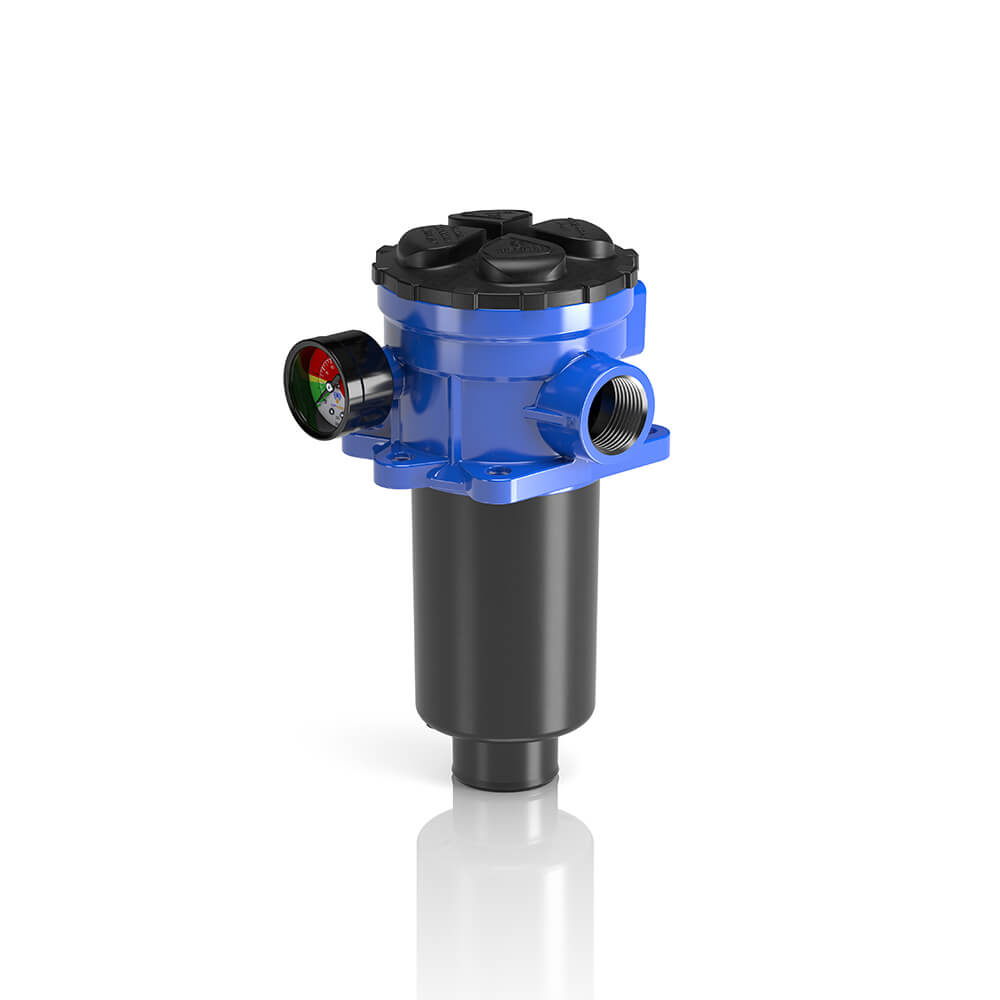

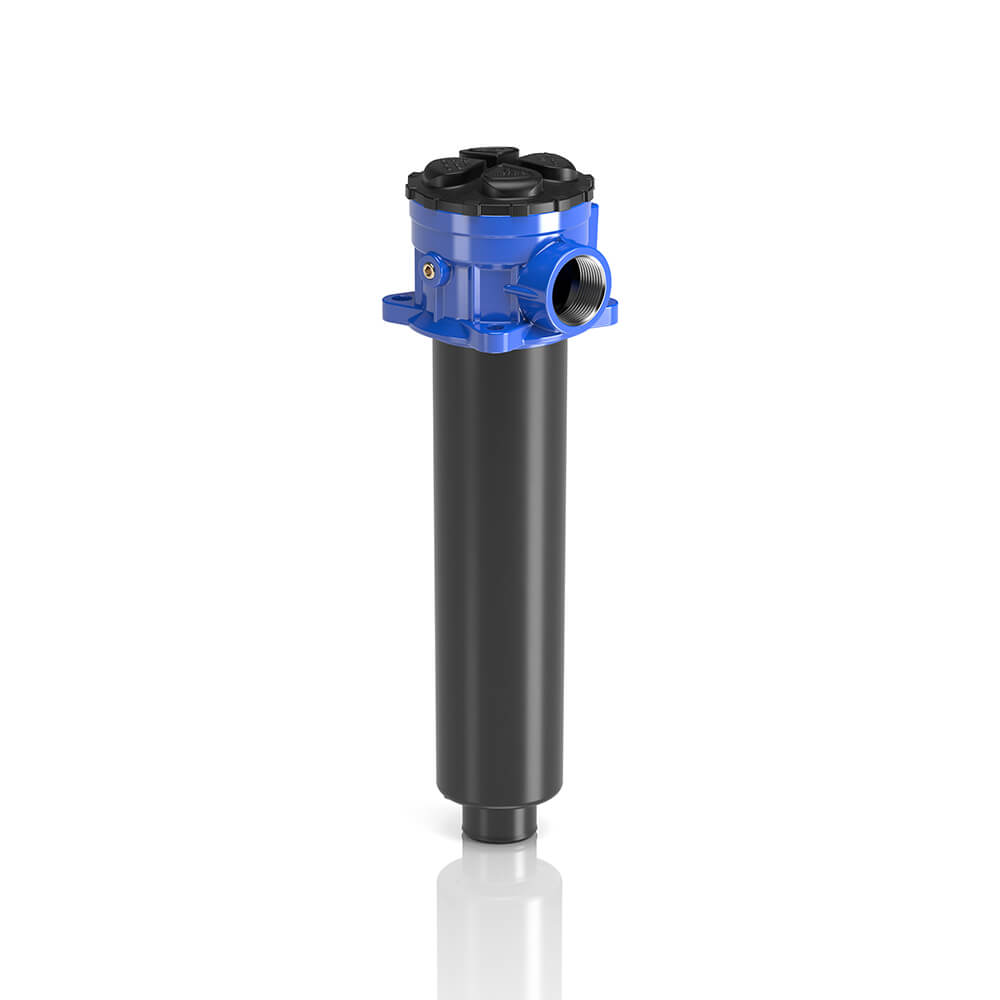

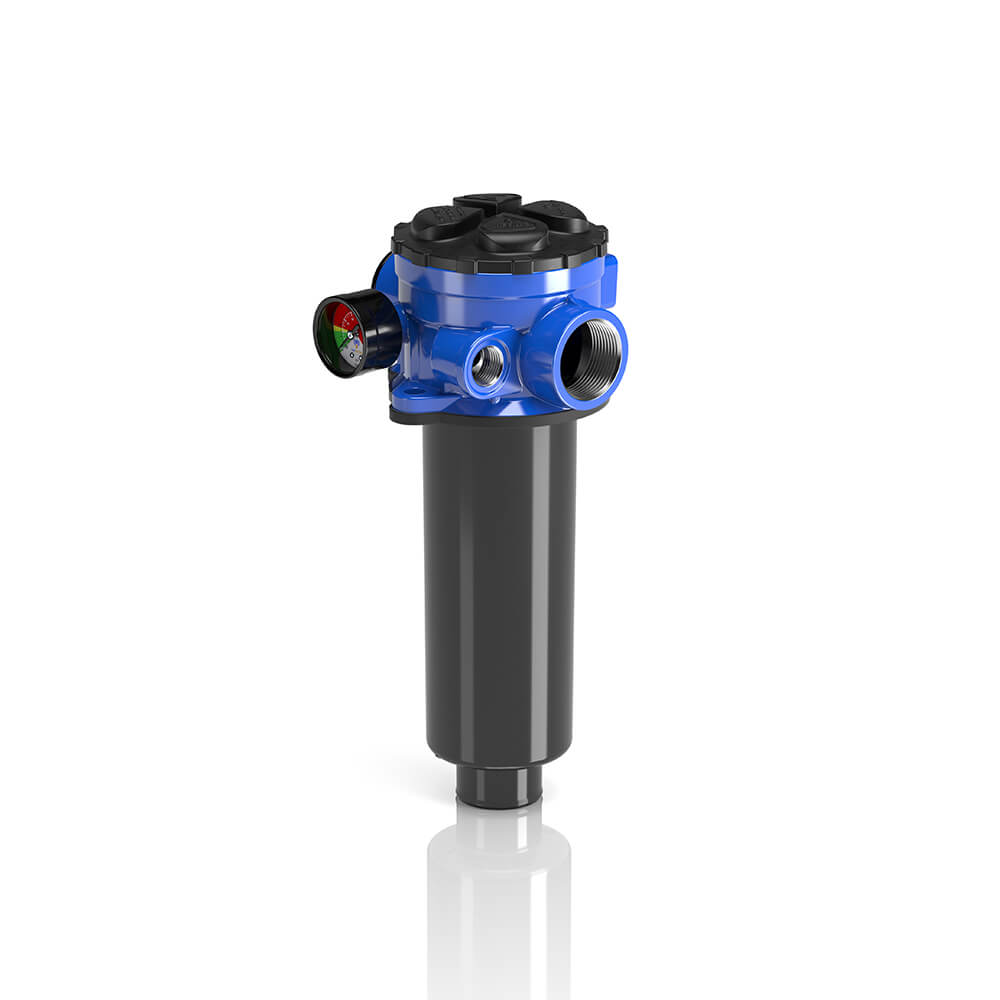

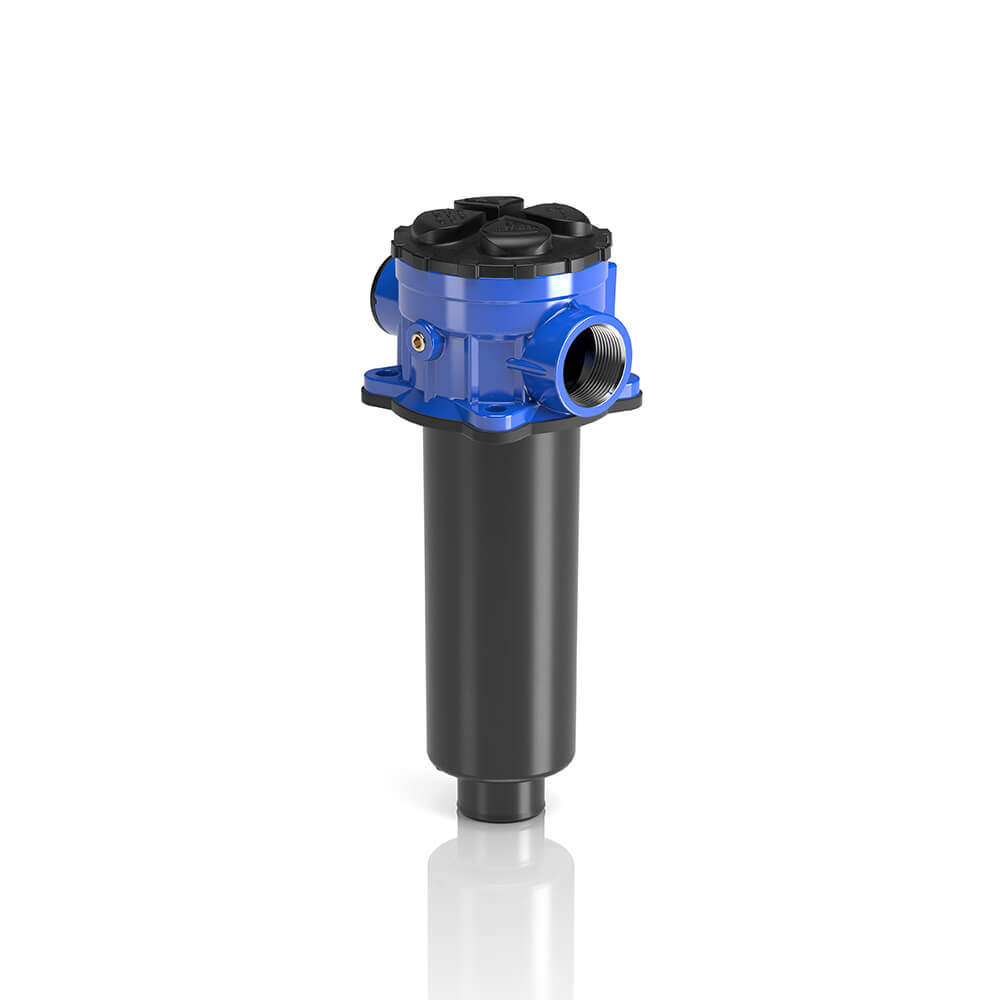

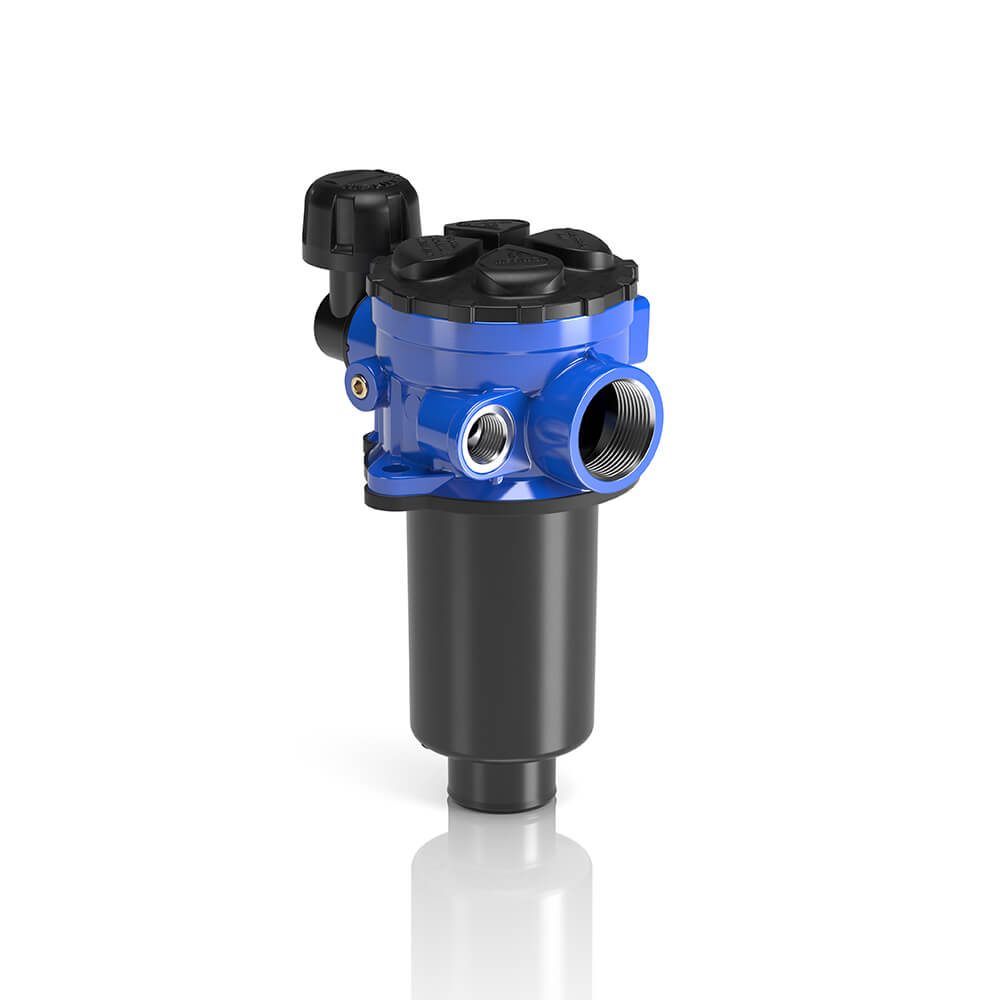

MPT

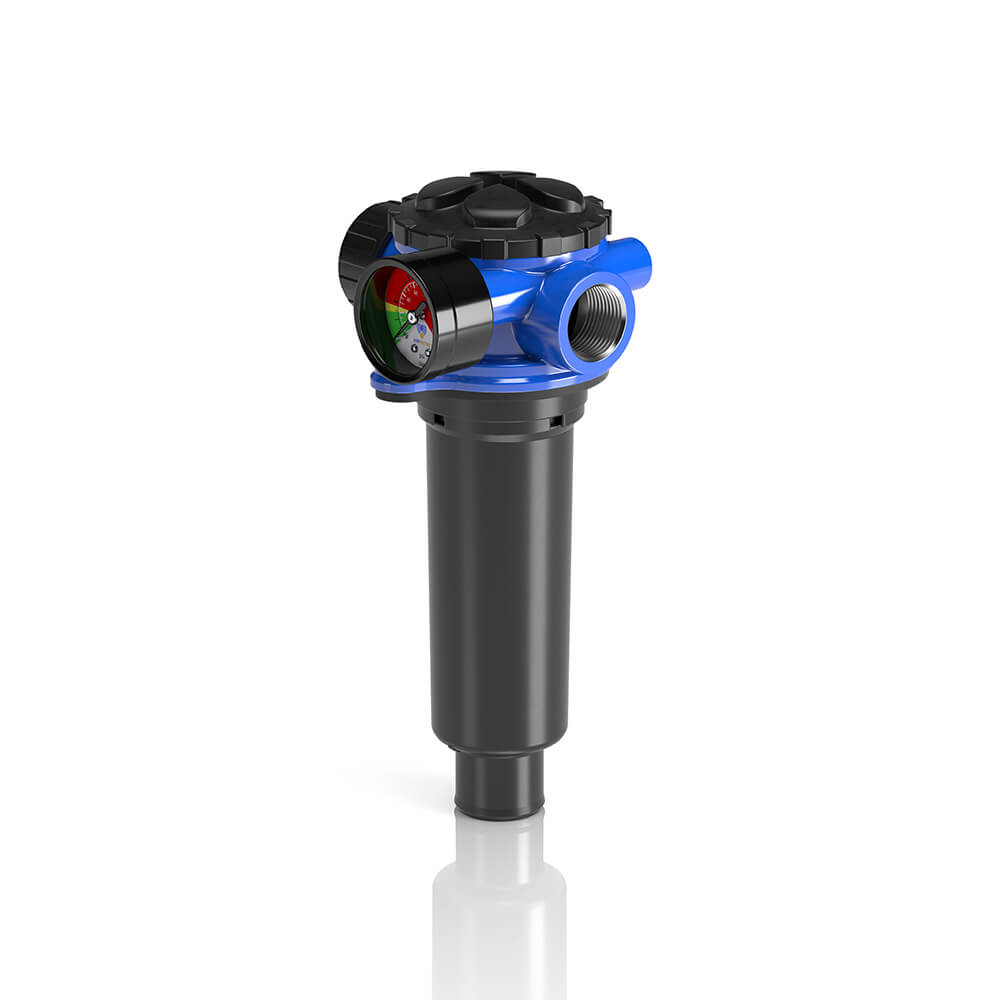

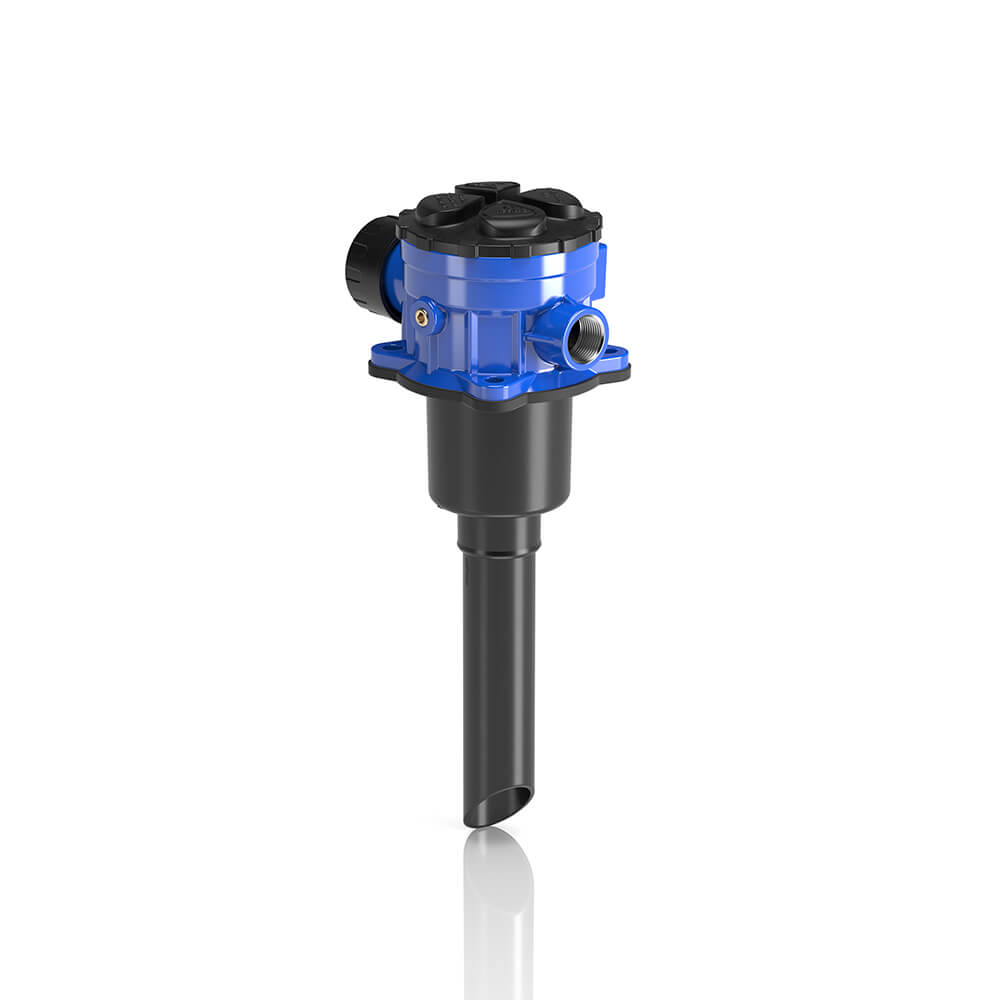

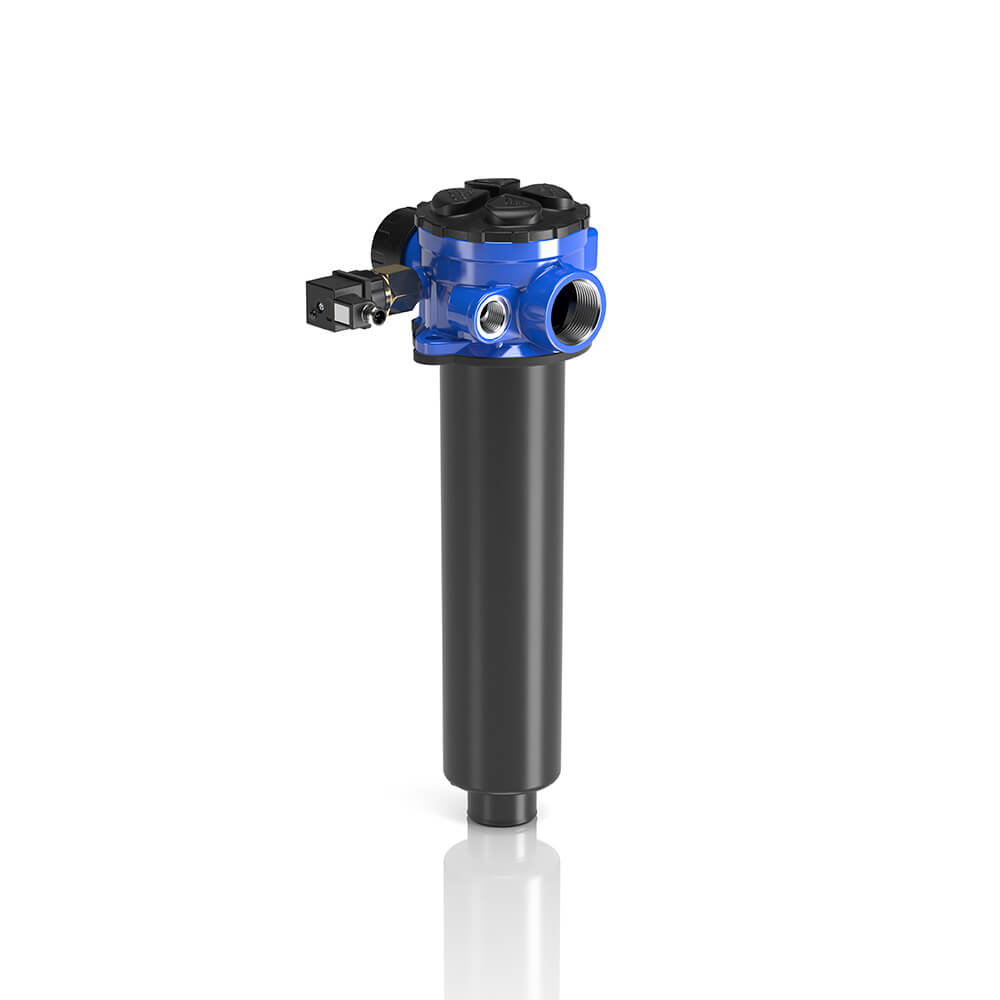

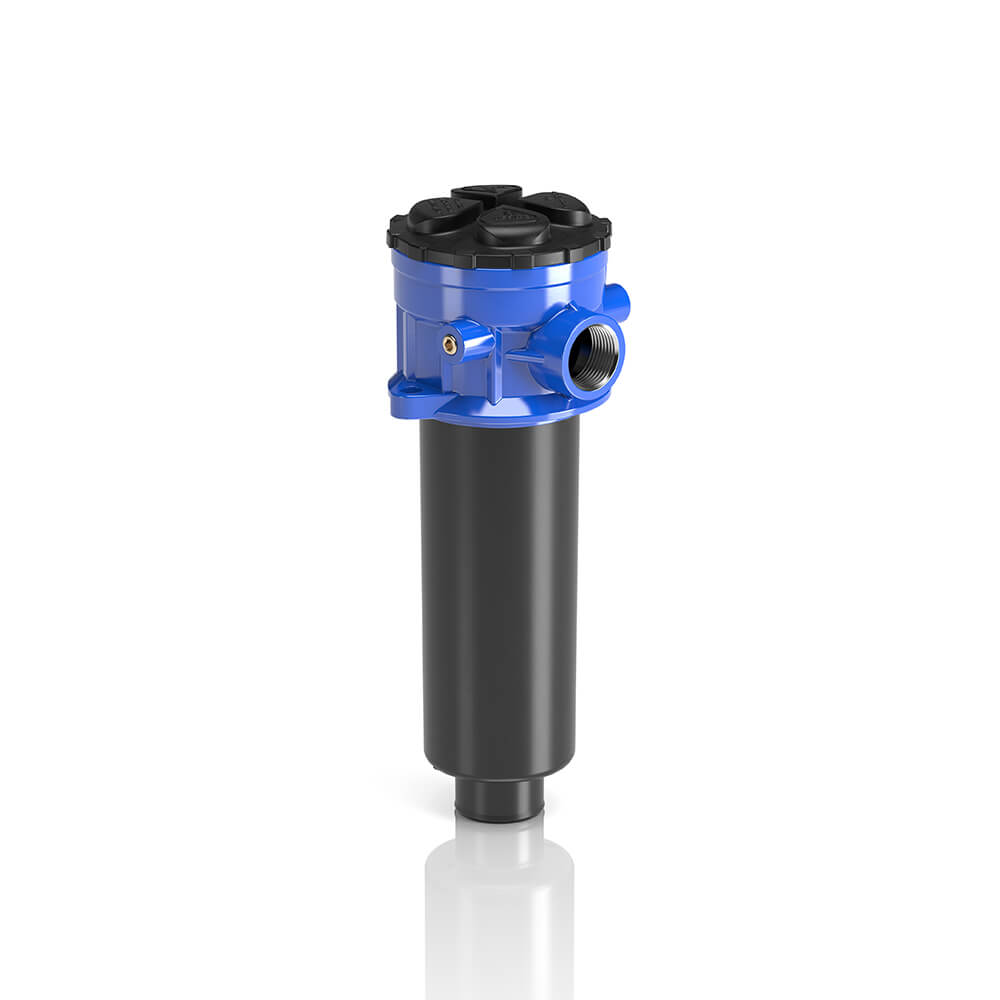

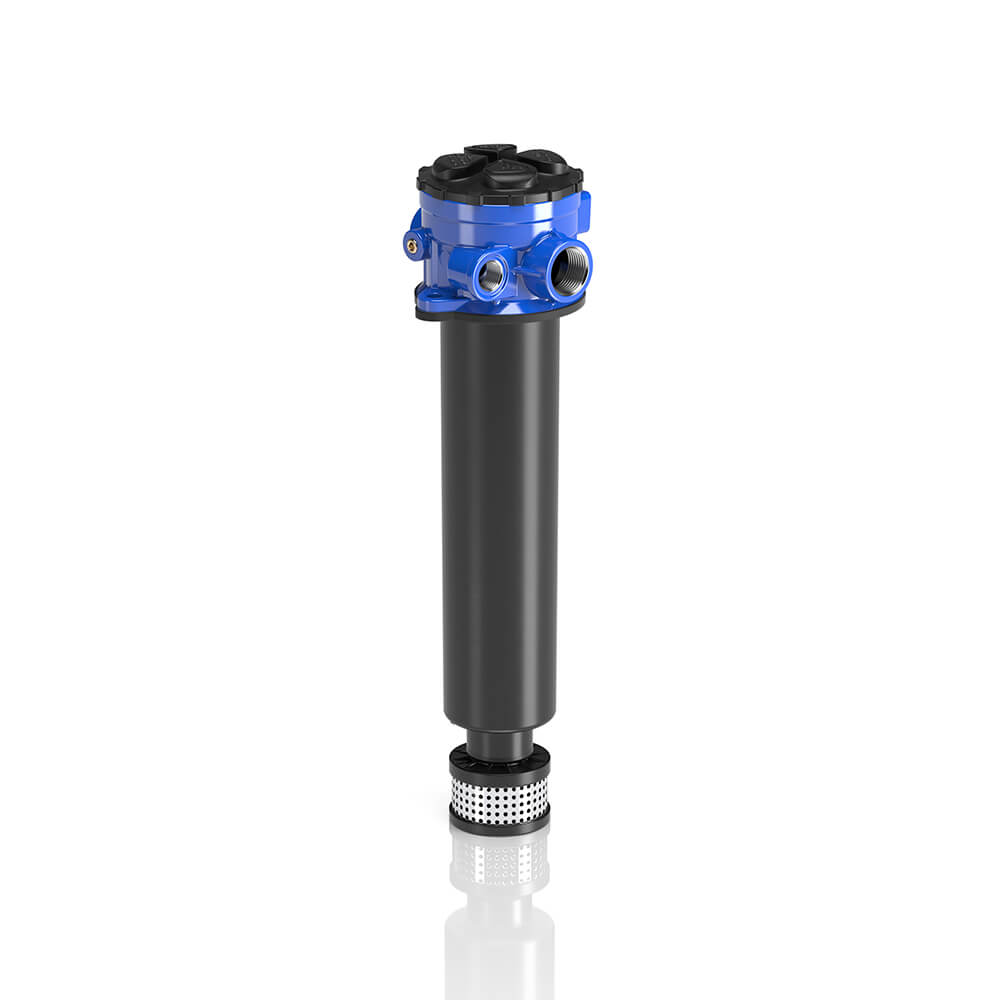

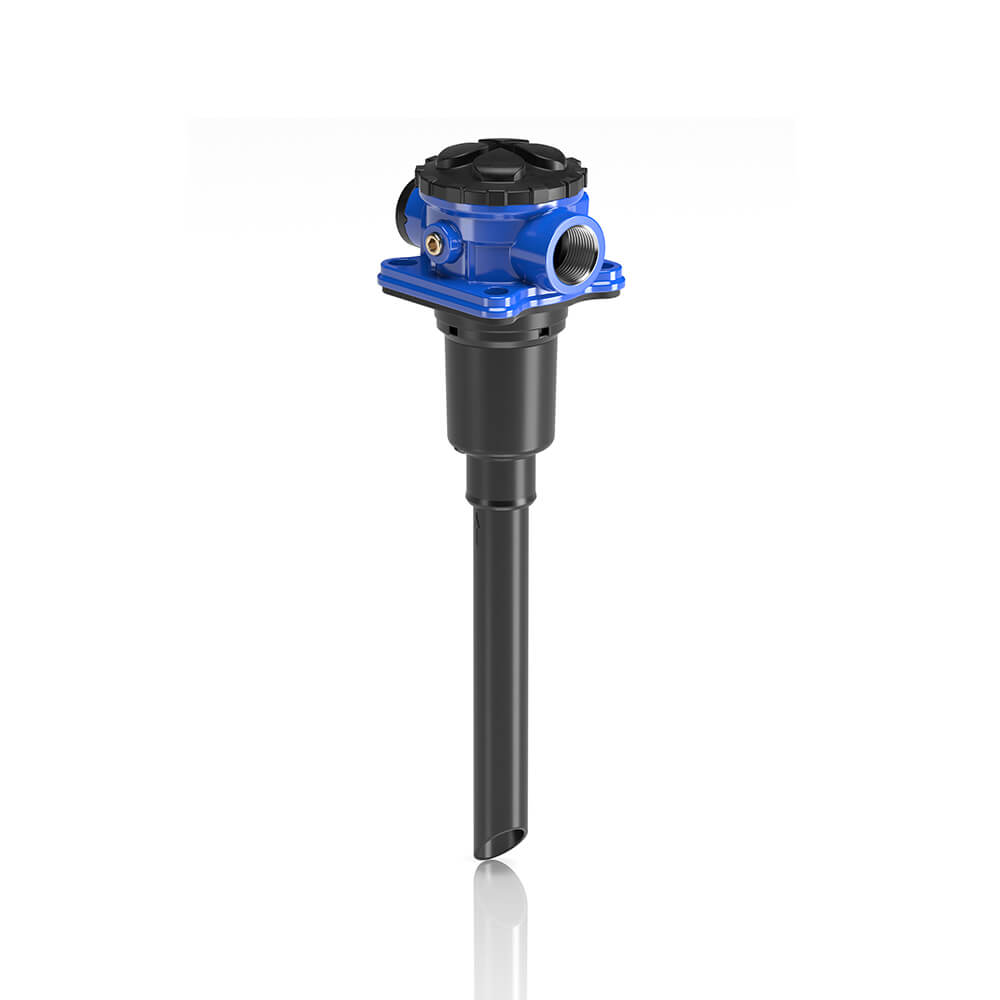

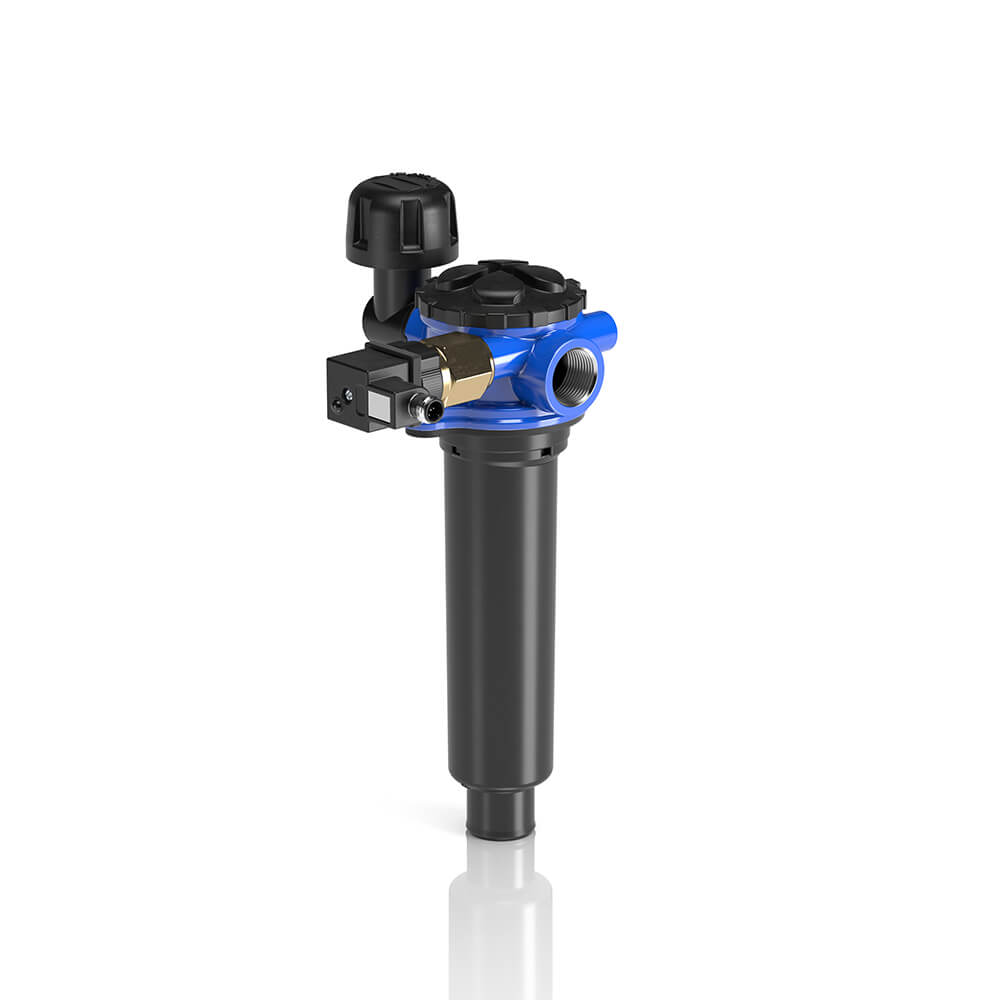

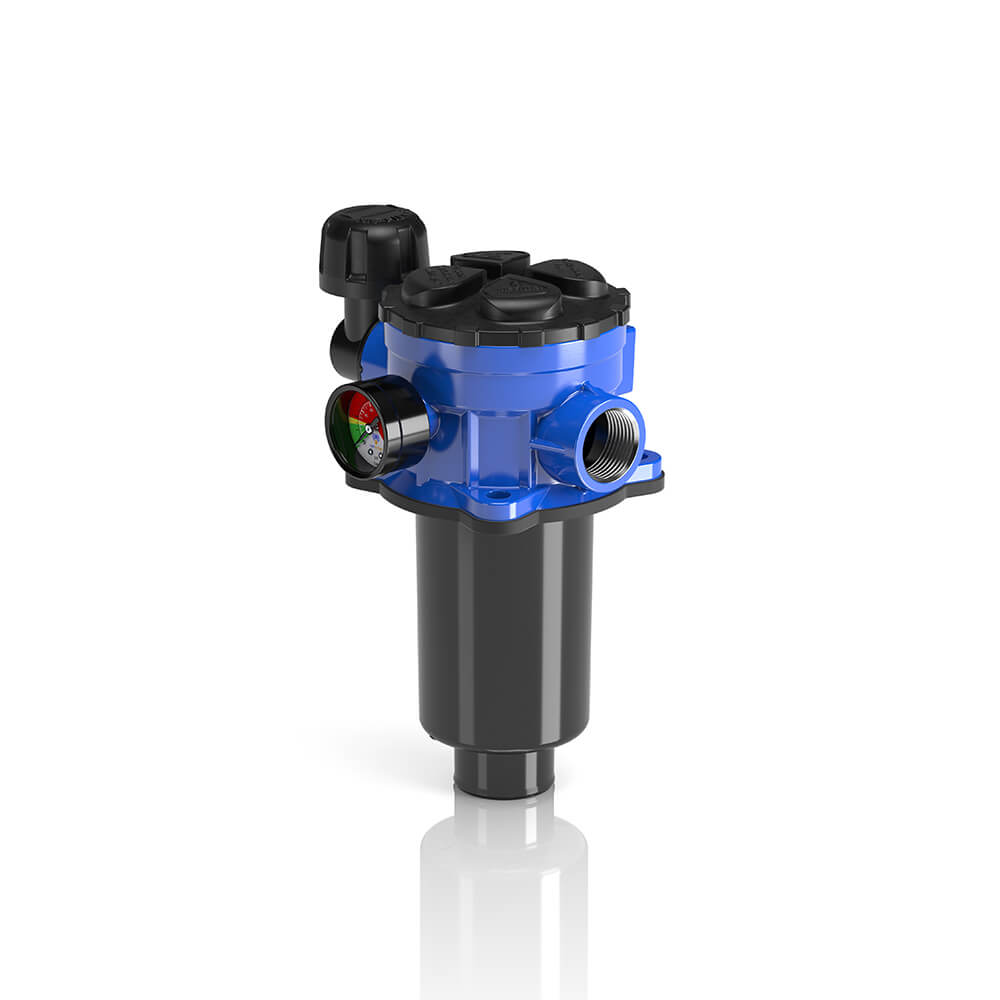

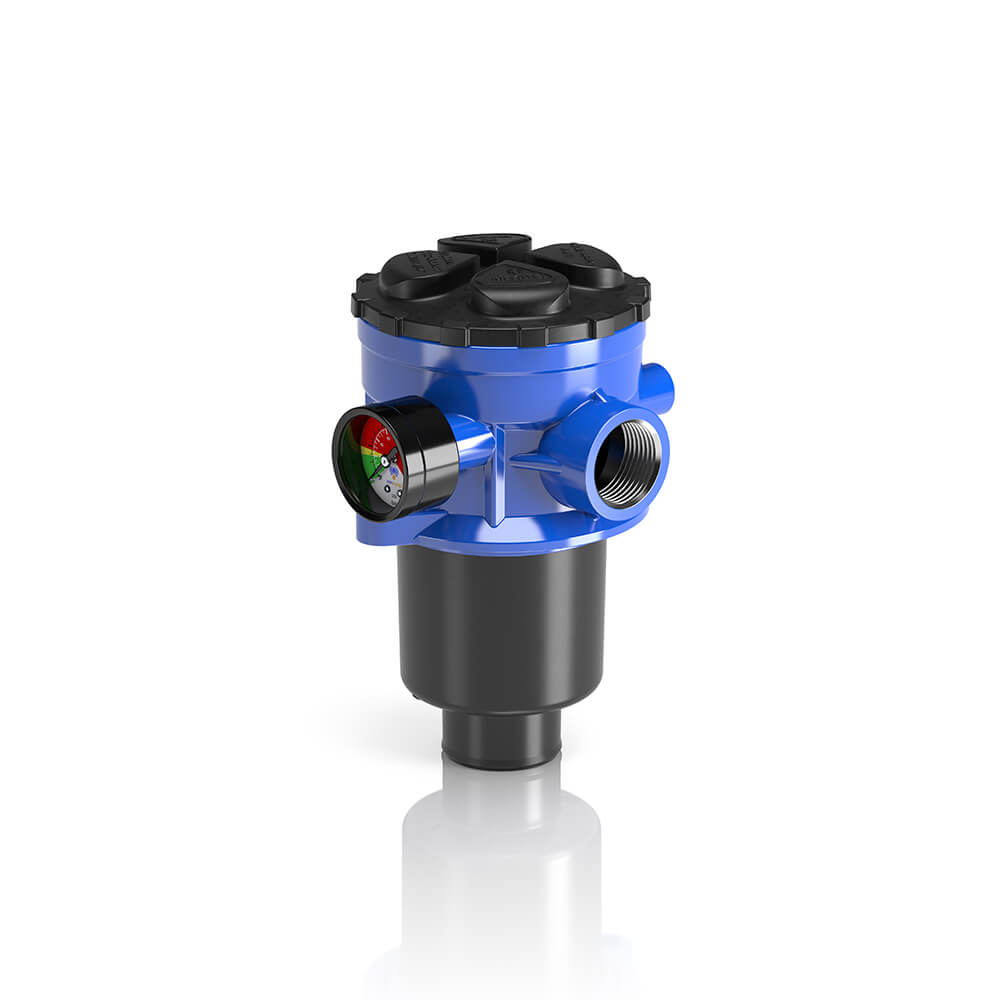

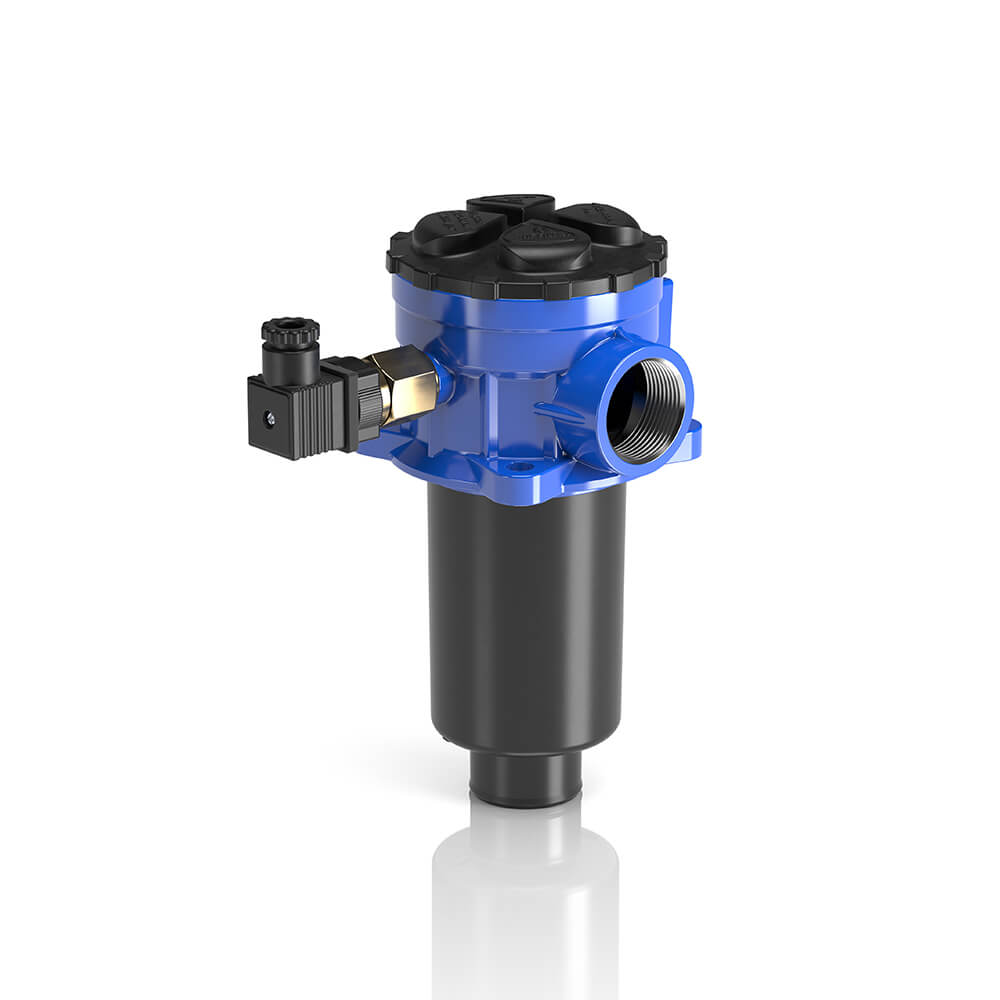

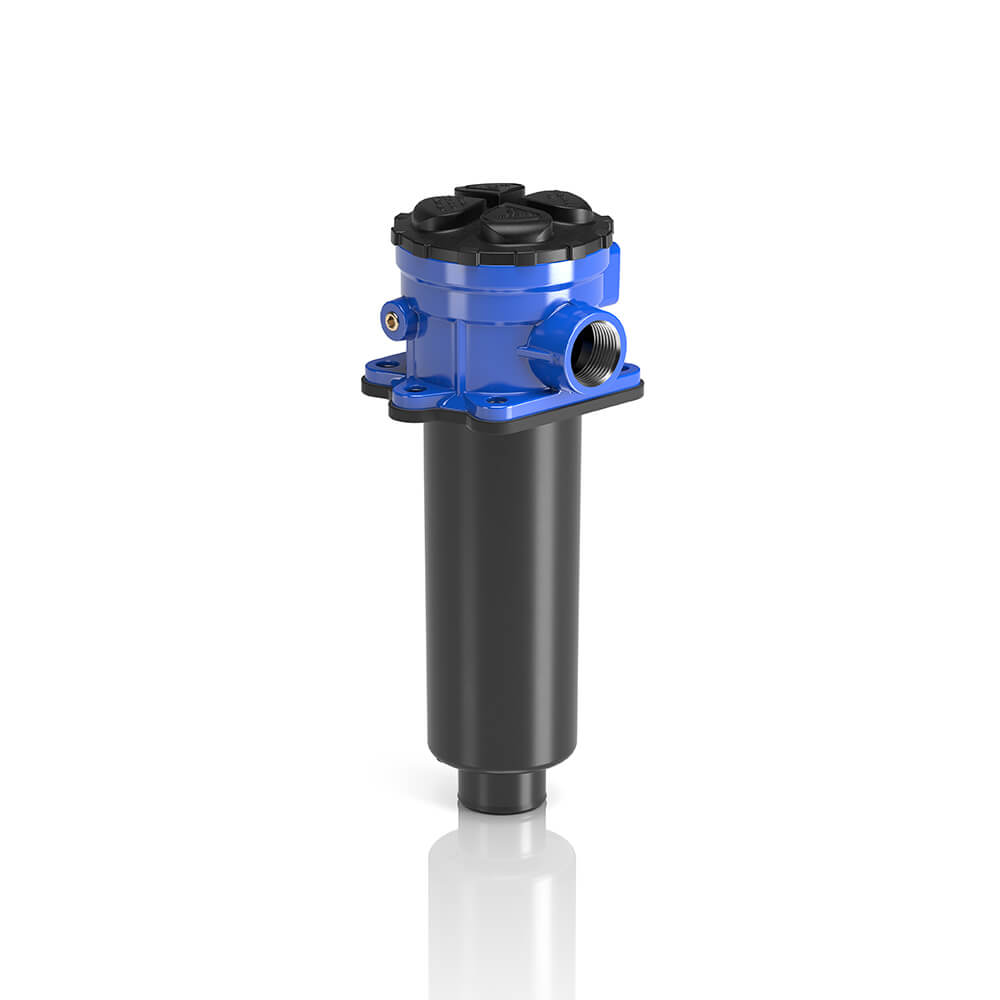

Tank mounted return filter with air breather, filter element oil flow external to internal. Working pressure up to 116 psi (8 bar), flow rates up to 79 gpm (300 l/min), threaded connections from 3/8” to 1 1/4” BSP/NPT/SAE.

FILTER SIZING    3D DOWNLOAD   TECHNICAL BROCHURE
  • FEATURES & BENEFITS
  • TECHNICAL DATA
  • LITERATURE

Available in single or MULTIPORT configurations, with atmospheric or pressurized anti-splash air breather, snap attach extension tube, exit flow diffuser and an oil level dipstick with an incorporated mounting fastener for easy installation, the bowl and element are removable and prevents conatmination from re-entering the tank during element change. The air breather plug is integrated.

See the relevant table for compatibility on fluids.

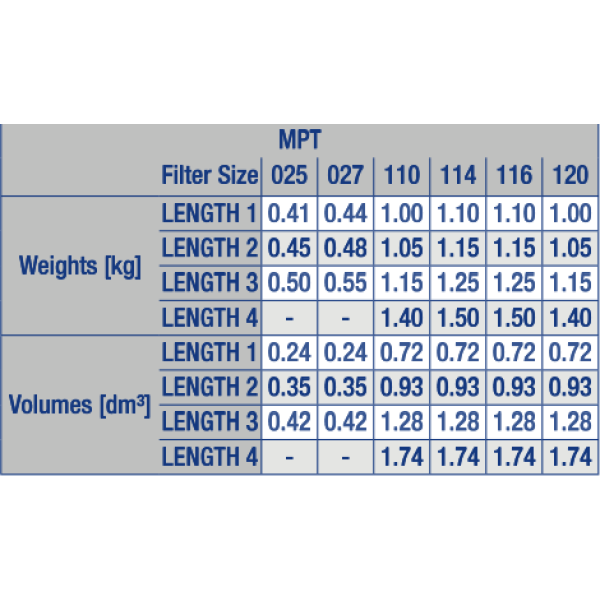

WEIGHTS AND VOLUMES
MPT

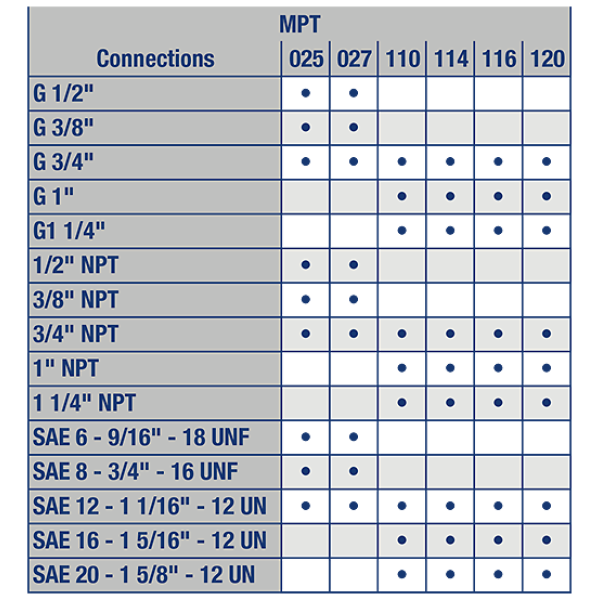

CONNECTIONS
MPT
CATALOGS
Return filters
MPT return
Hydraulic Filtration
Return accessories

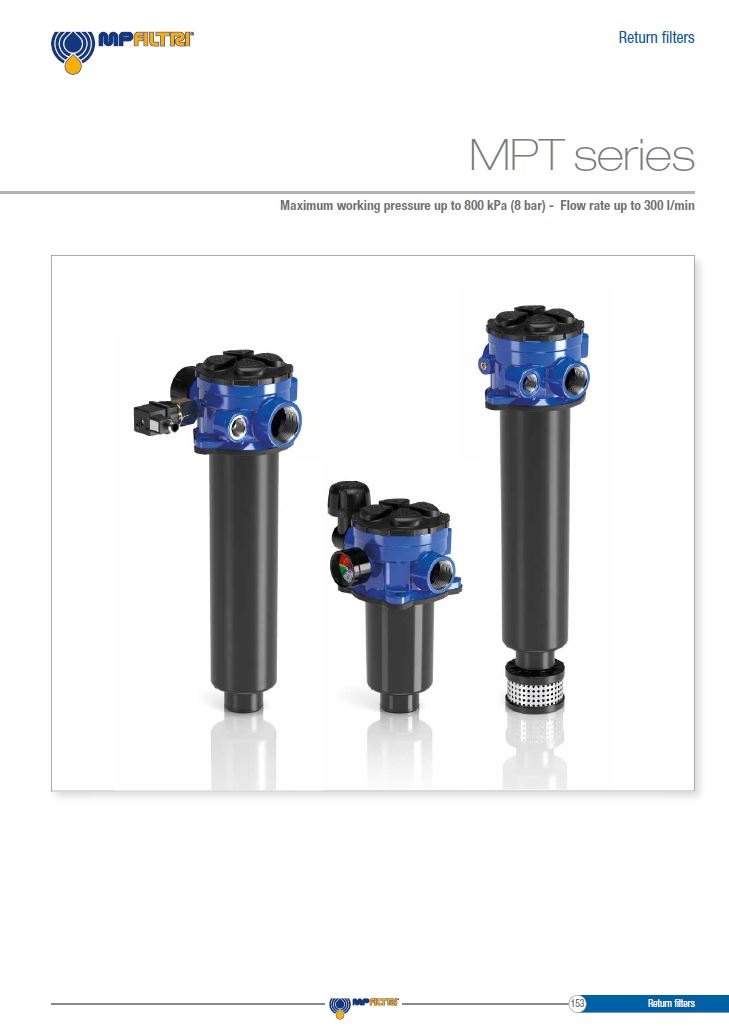

BROCHURES

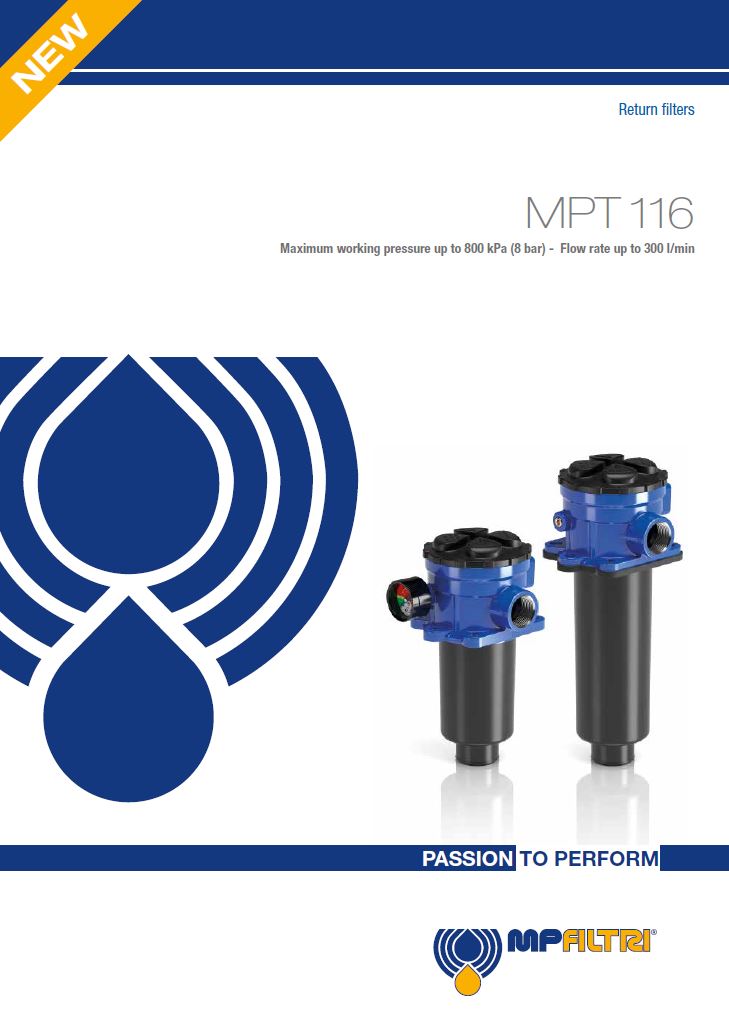

MPT116 return
