Tank-mounted Return Filter [MPF]

REGISTRATION

INFO

REQUEST INFO

MPF

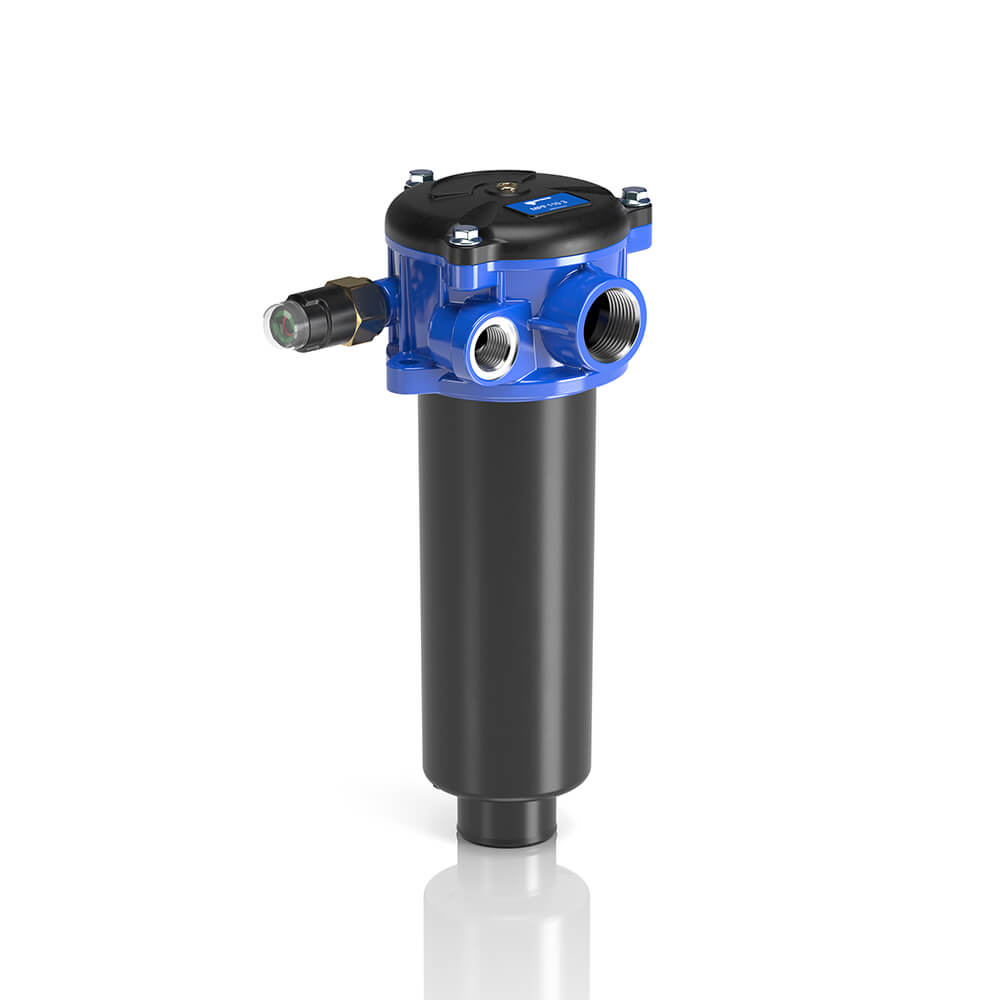

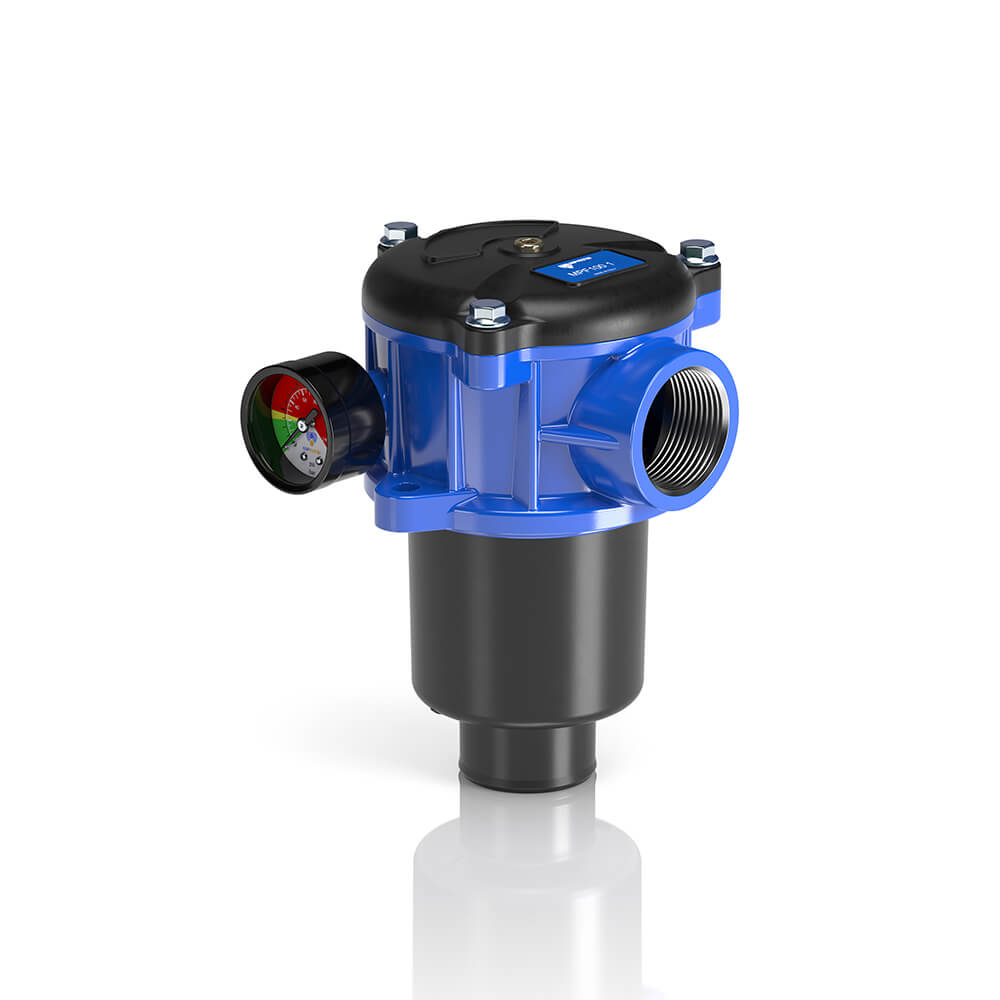

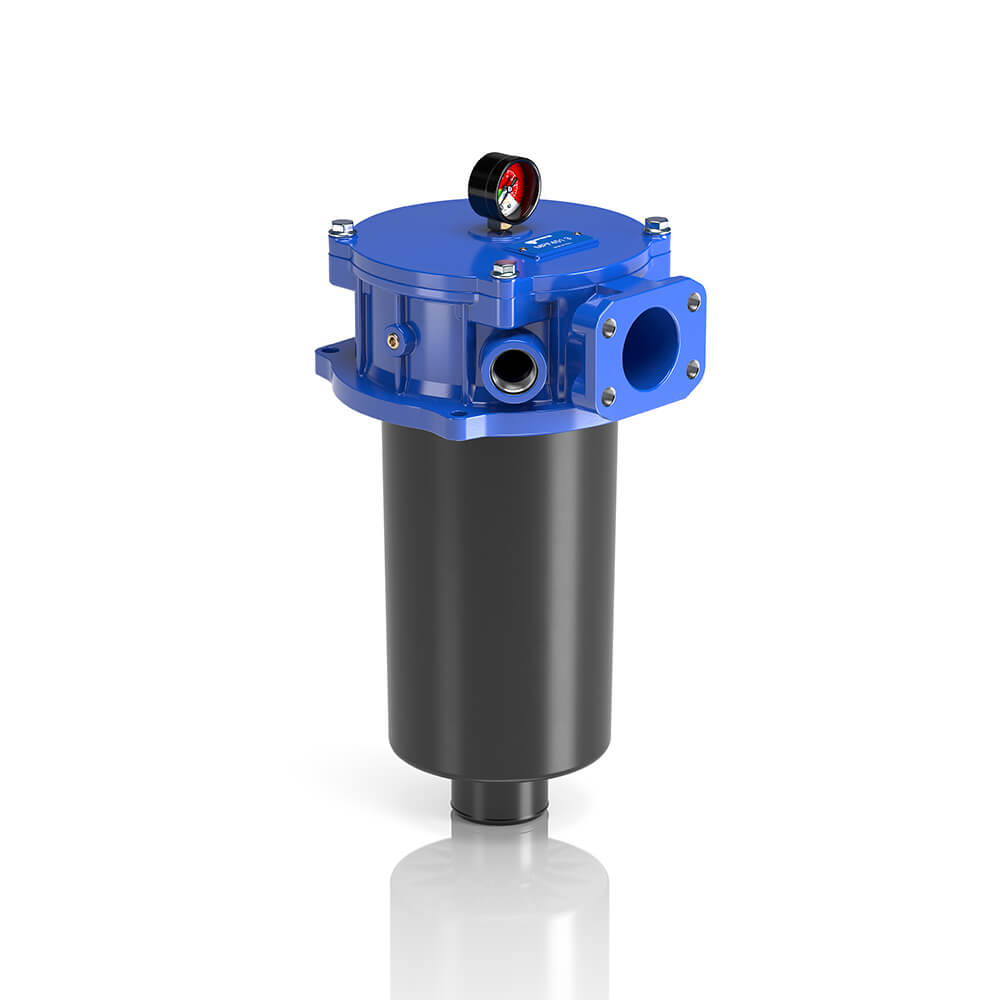

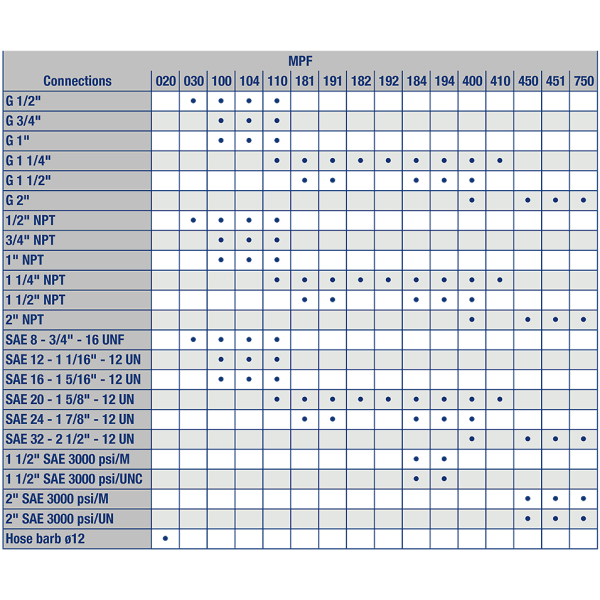

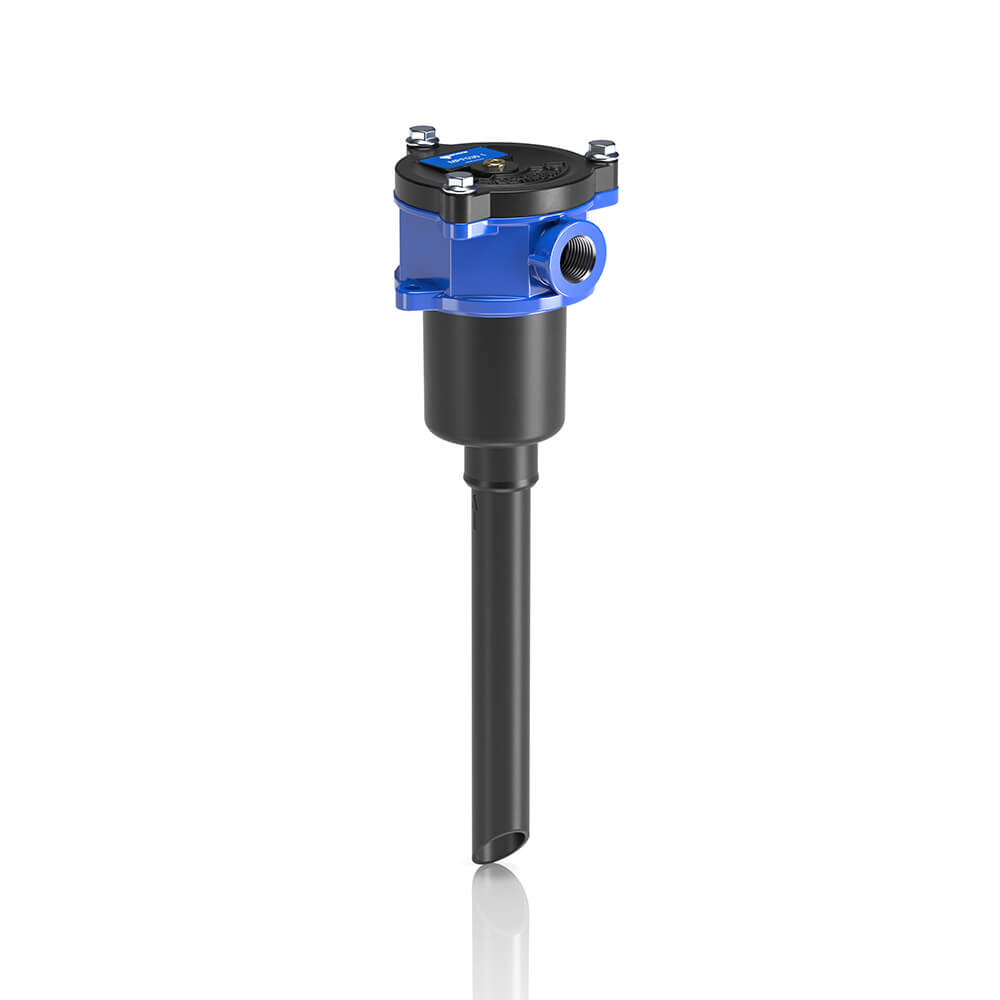

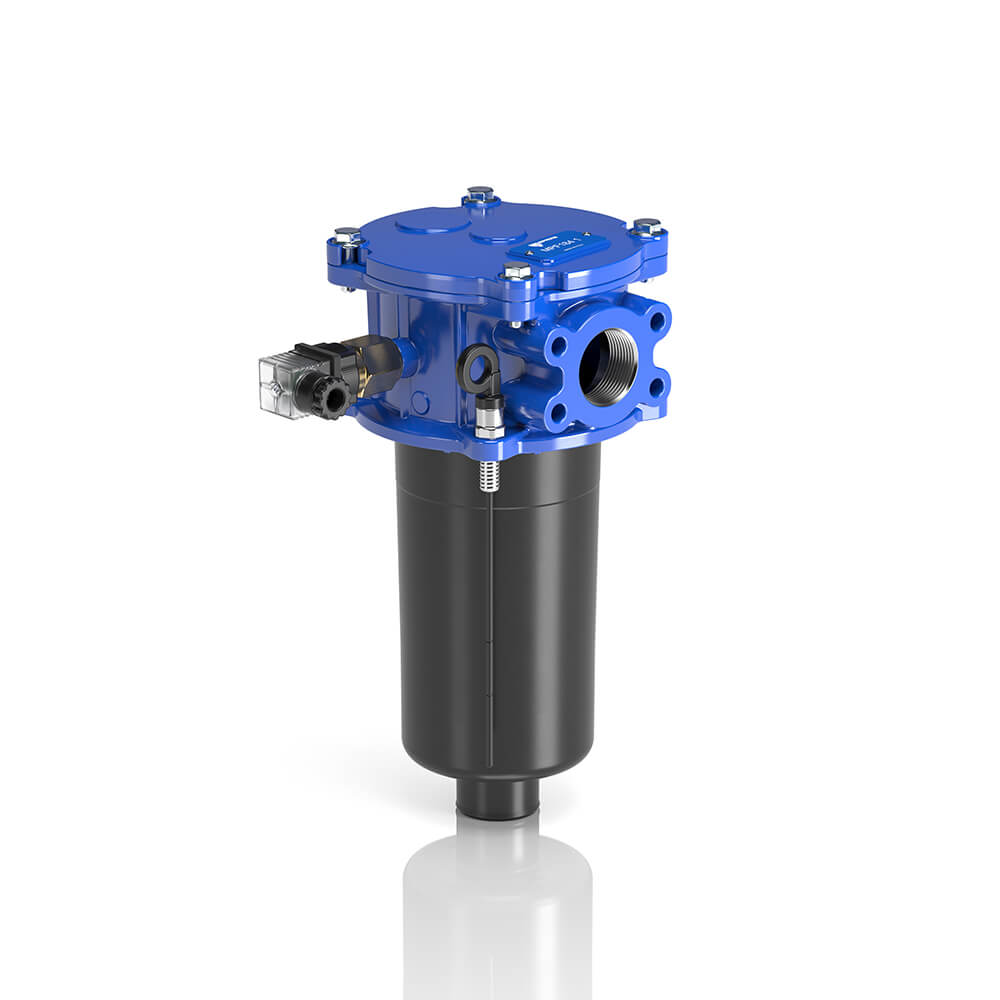

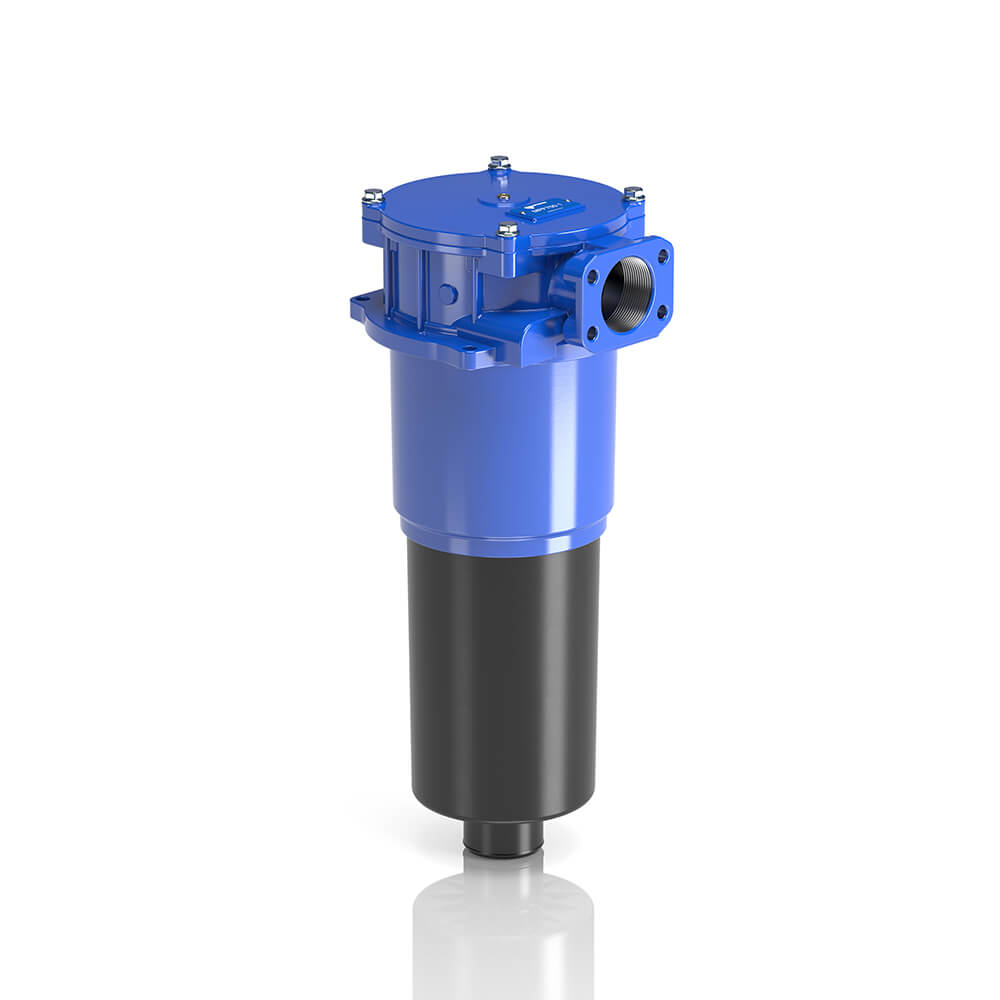

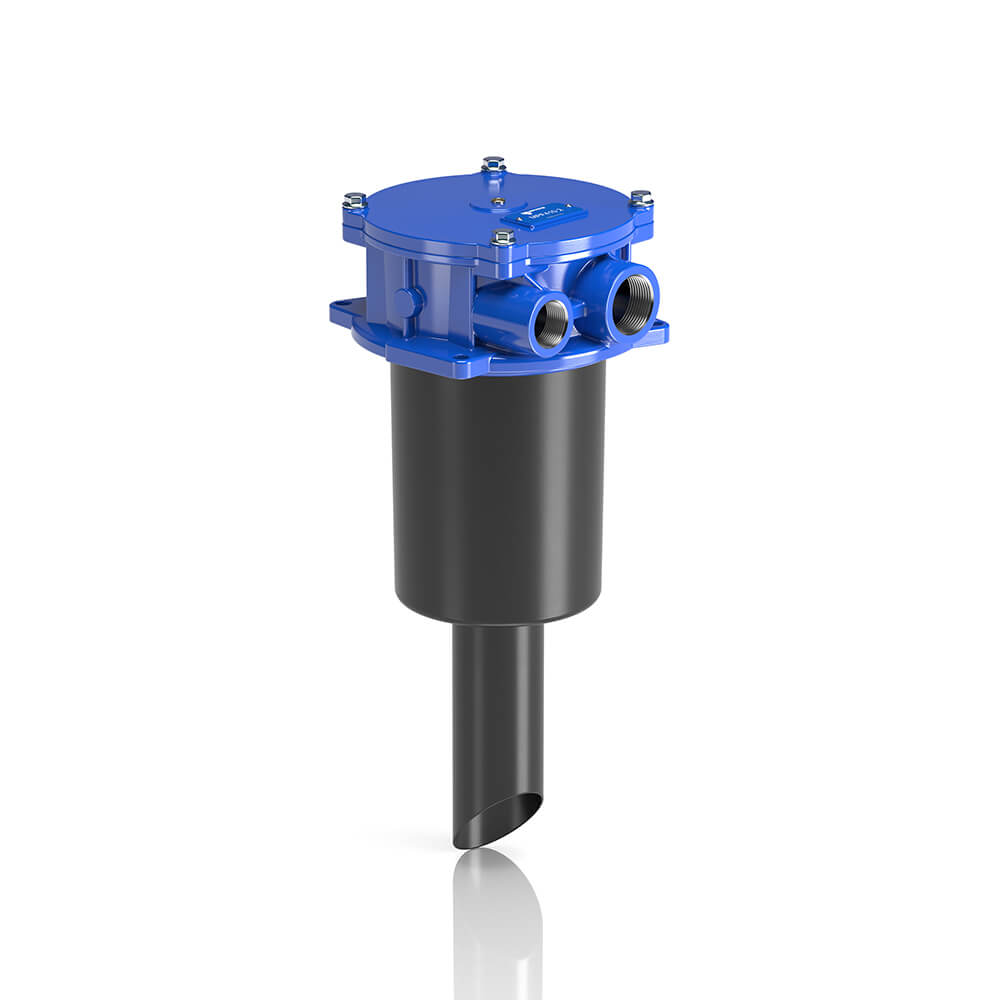

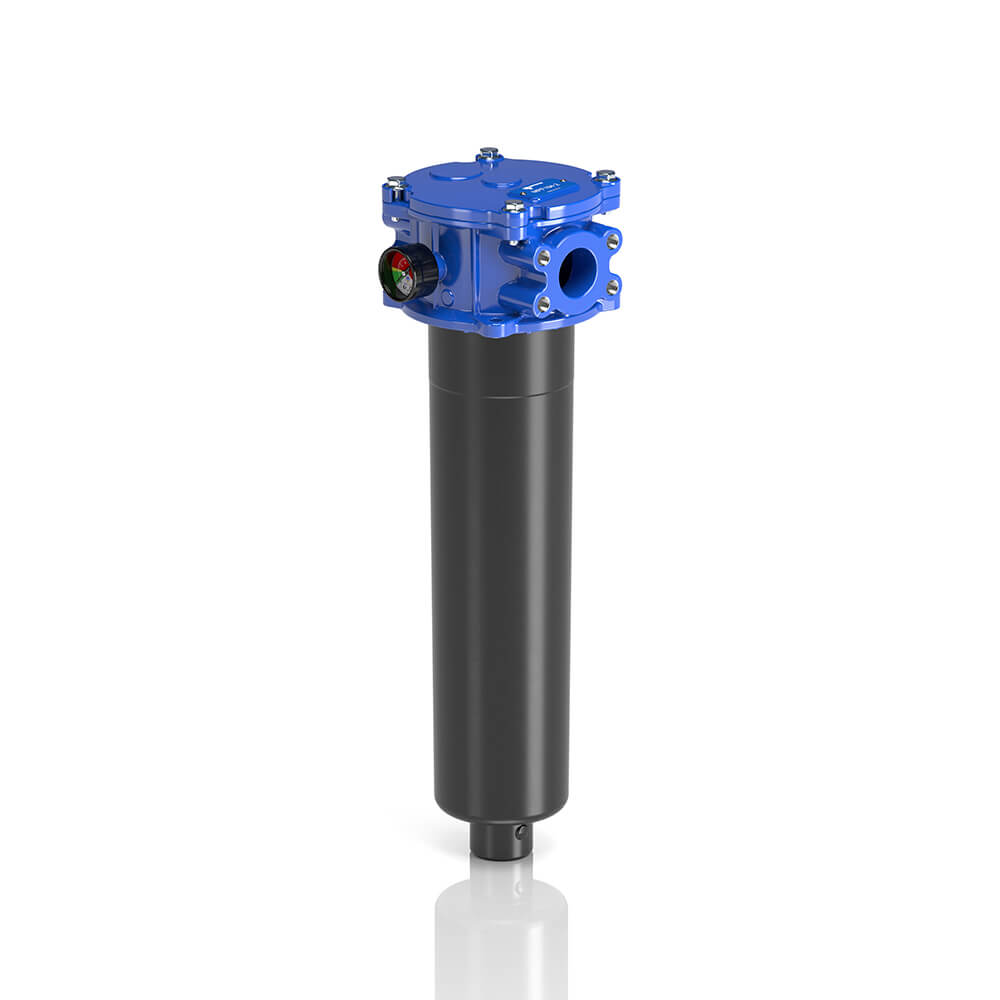

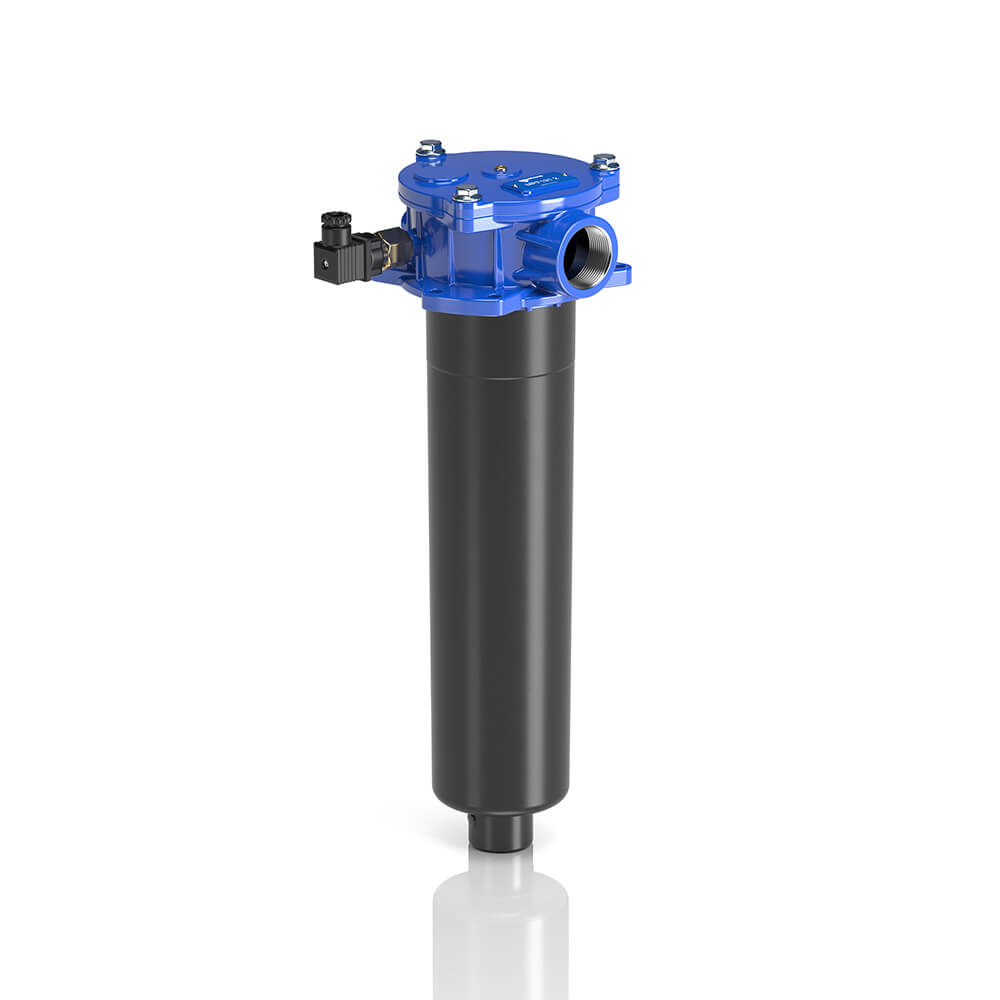

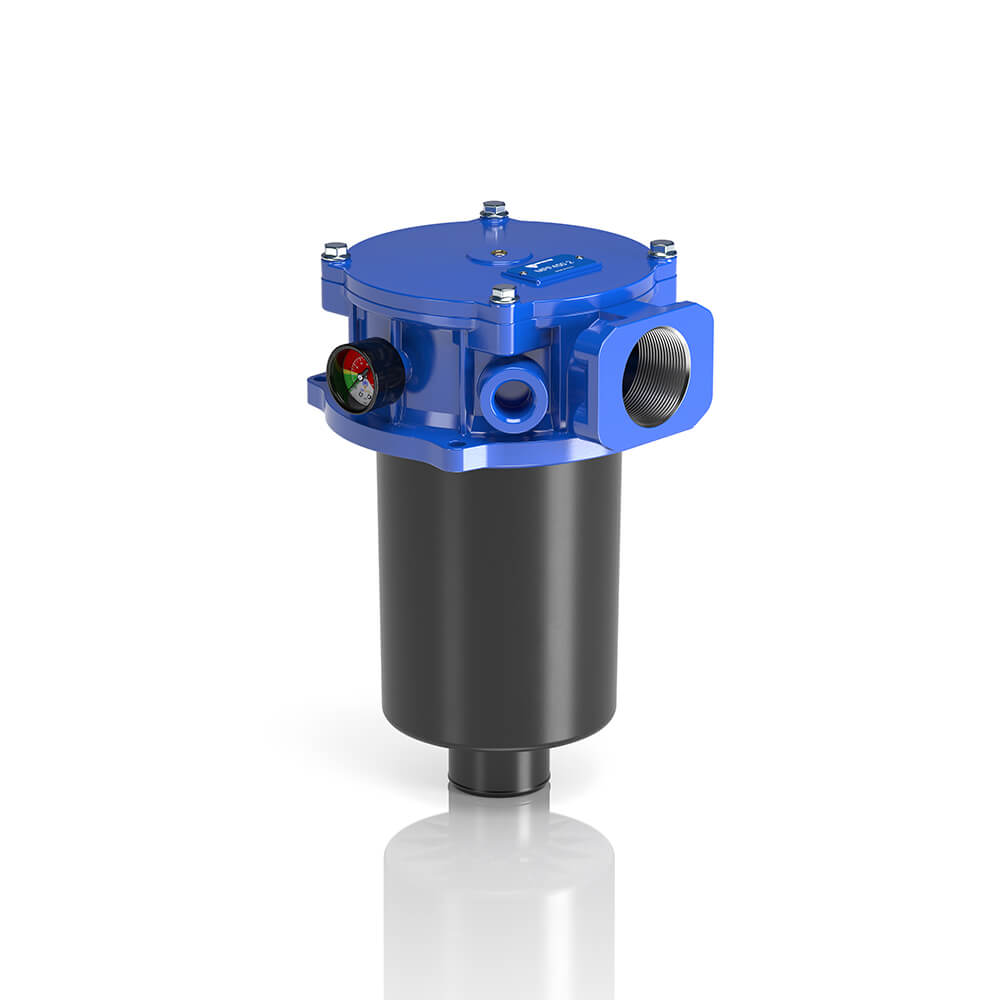

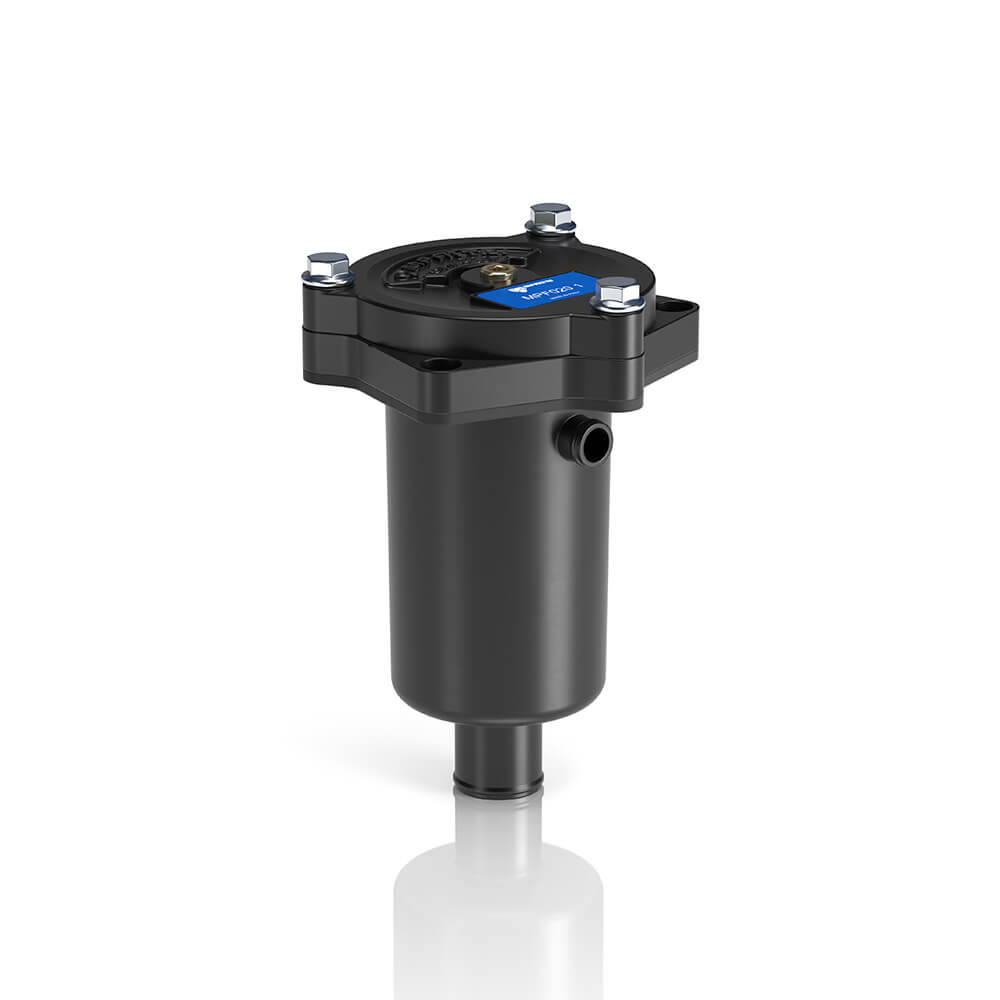

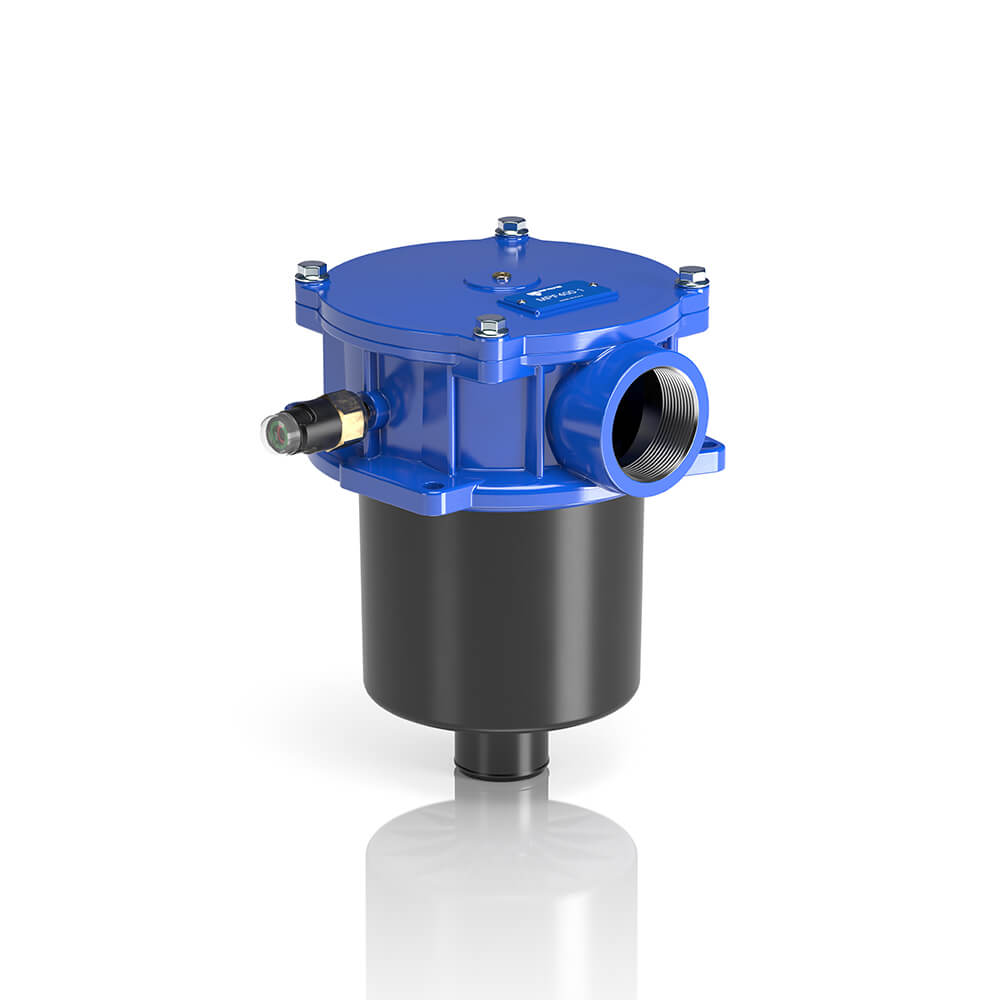

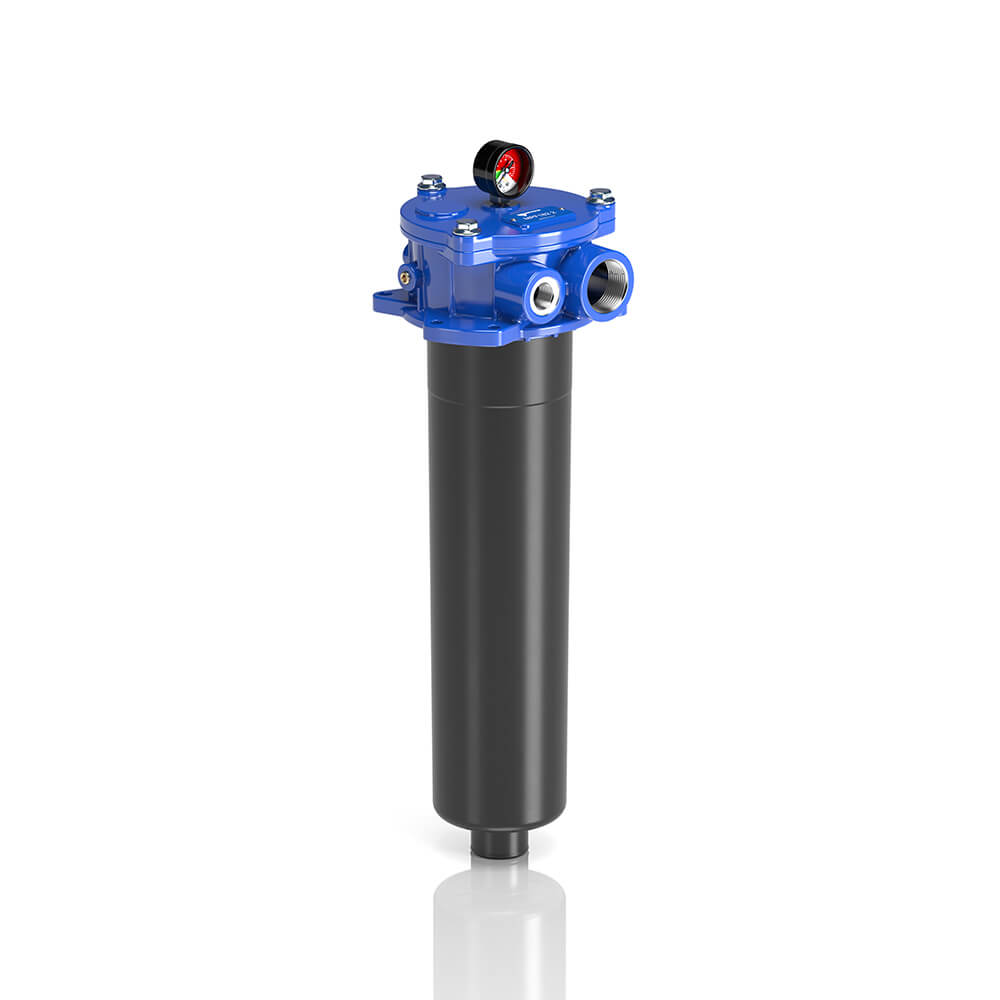

Tank mounted return filter, filter element oil flow external to internal. Working pressure up to 116 psi (8 bar), flow rates up to 198 gpm (750 l/min), threaded connections from 1/2” to 2” BSP/NPT/SAE and SAE code 61 flanged connections up to 2”.

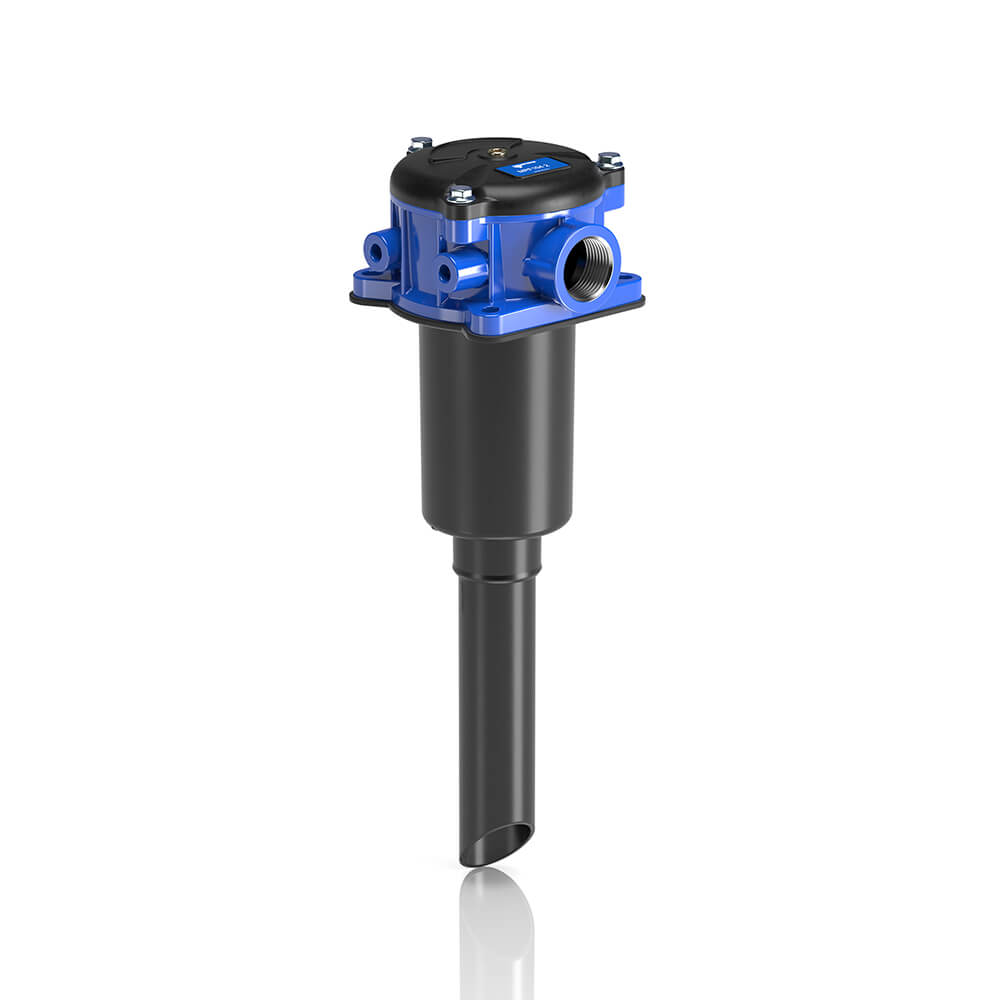

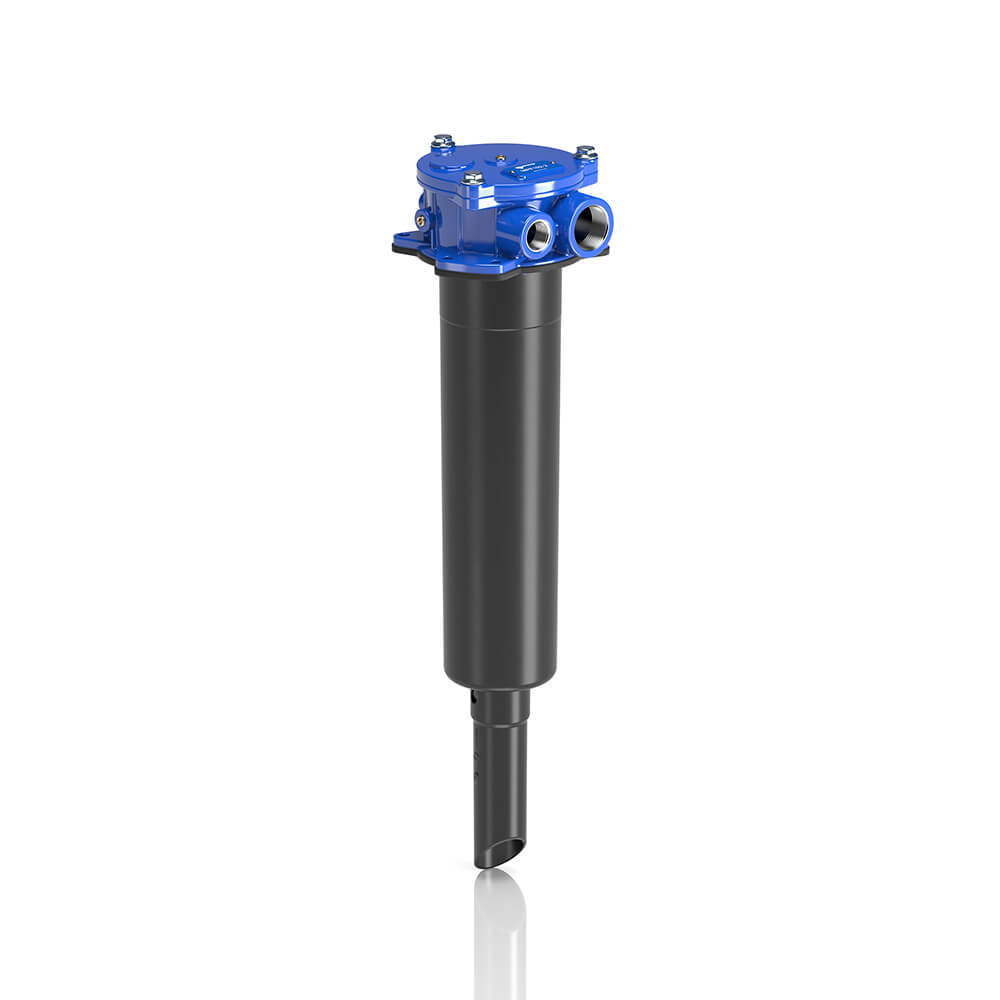

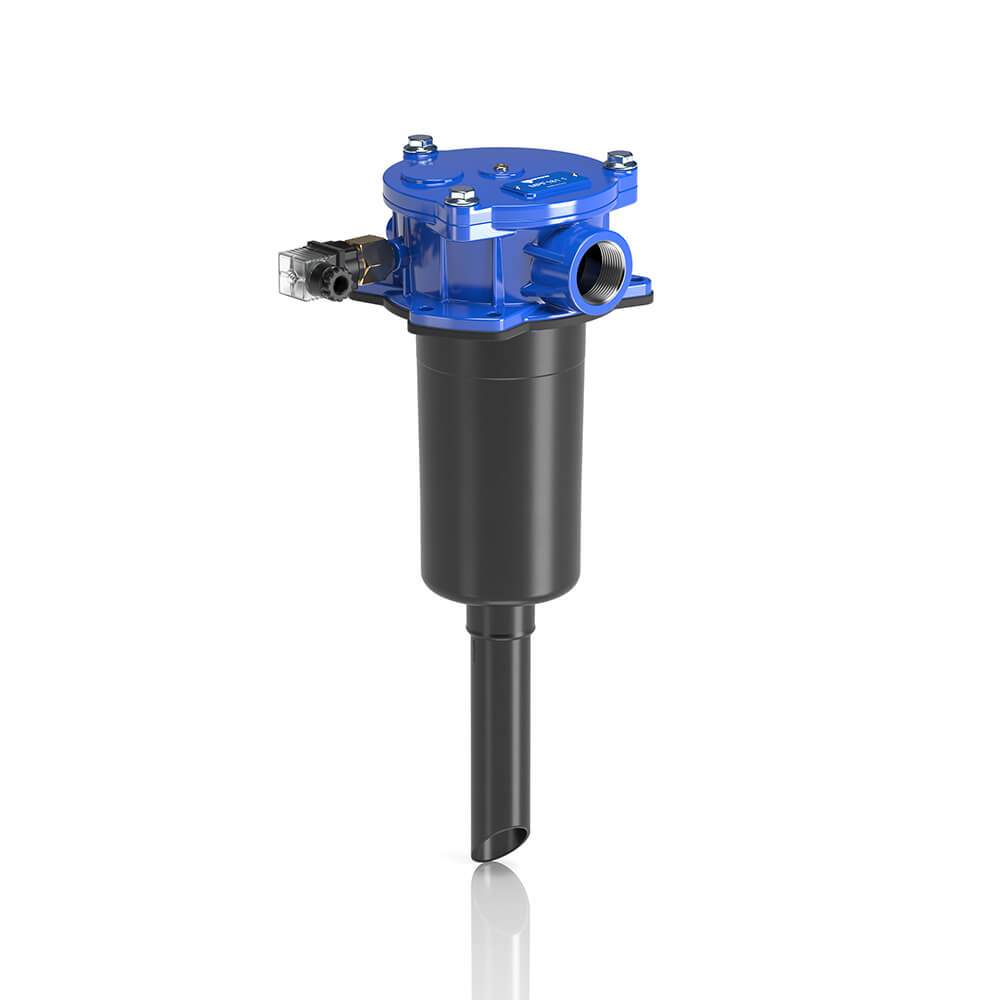

Available in single or MULTIPORT configurations, snap attach extension tube, exit flow diffuser and an oil level dipstick with an incorporated mounting fastener for easy installation, the bowl and element are removable and prevents conatmination from re-entering the tank during element change.

See the relevant table for compatibility on fluids.

LITERATURE

3D DOWNLOAD

FILTER SIZING

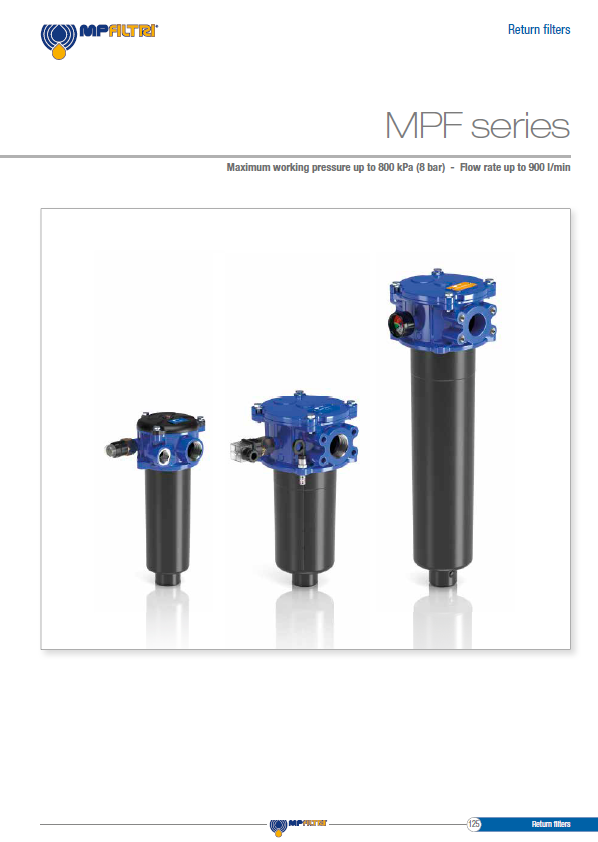

BROCHURES
