MPI

Tank mounted return filter, element oil flow internal to external. Working pressure up to 145 psi (10 bar), flow rates up to 793 gpm (3000 l/min).

FILTER SIZING    3D DOWNLOAD   TECHNICAL BROCHURE
  • FEATURES & BENEFITS
  • TECHNICAL DATA
  • LITERATURE

Heavy duty high flow rate design to be incorporated into a "Dirt Box" arrangement within the tank to minimize external dimensions and provide multiple return connectins from the hydraulic system. "Inside to Outside" oil flow element design retains captured contamination within the element replacing the element and preventing contamination back into the tank.

See the relevant table for compatibility on fluids.

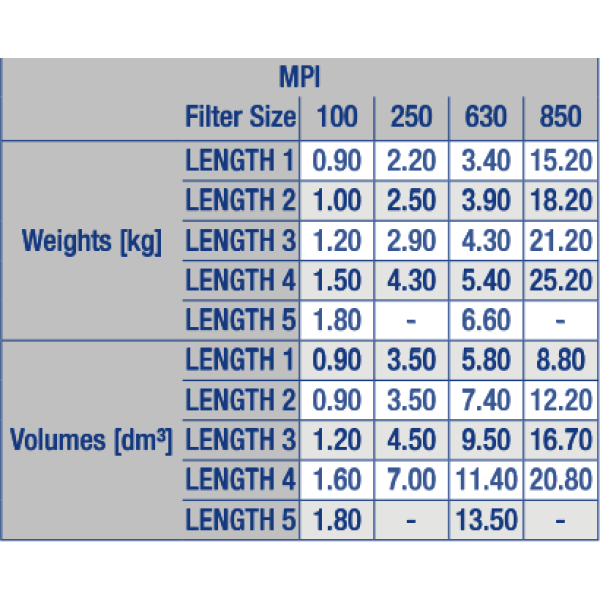

WEIGHTS AND VOLUMES
MPI

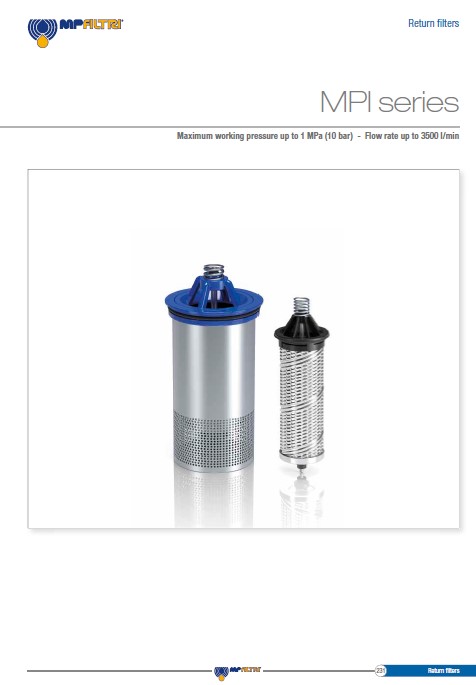

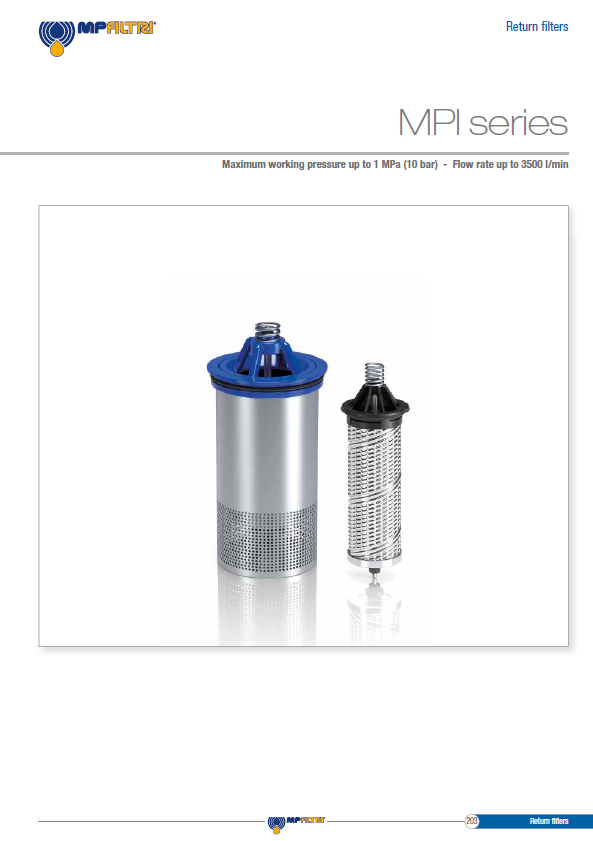

BROCHURES

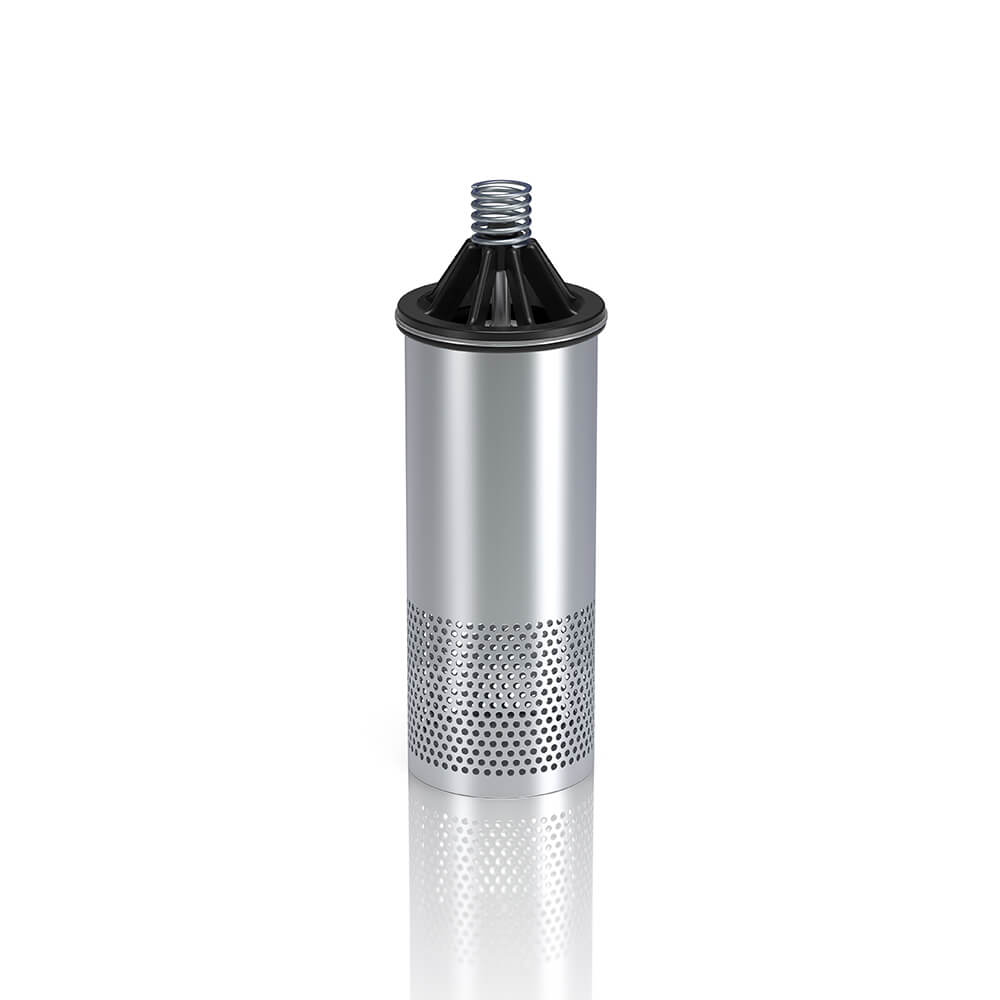

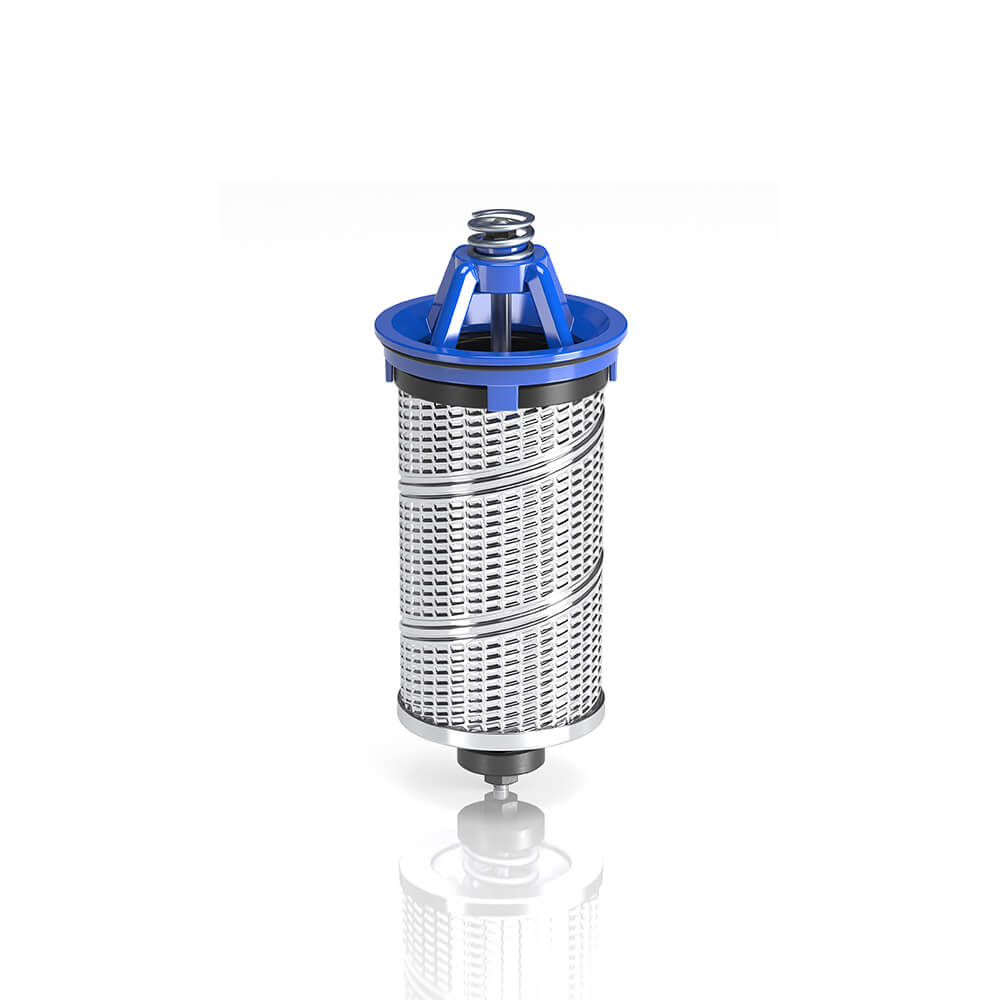

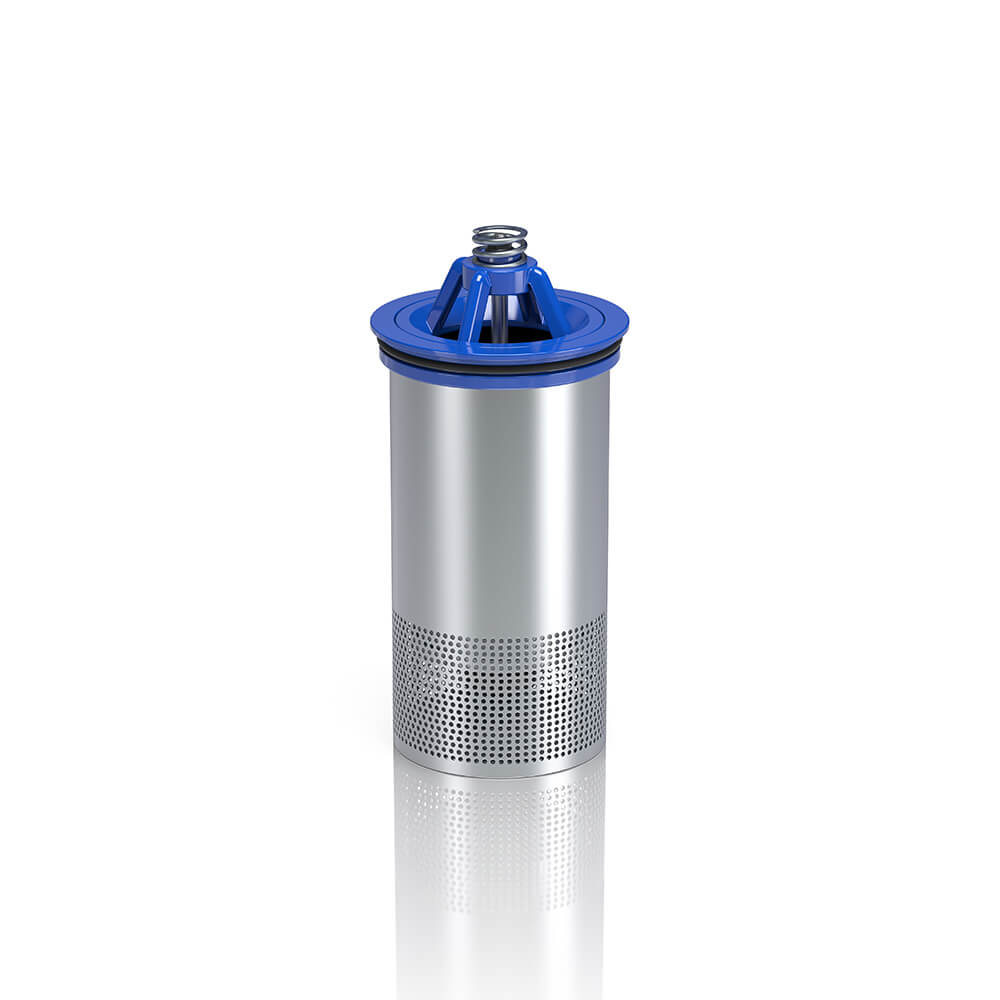

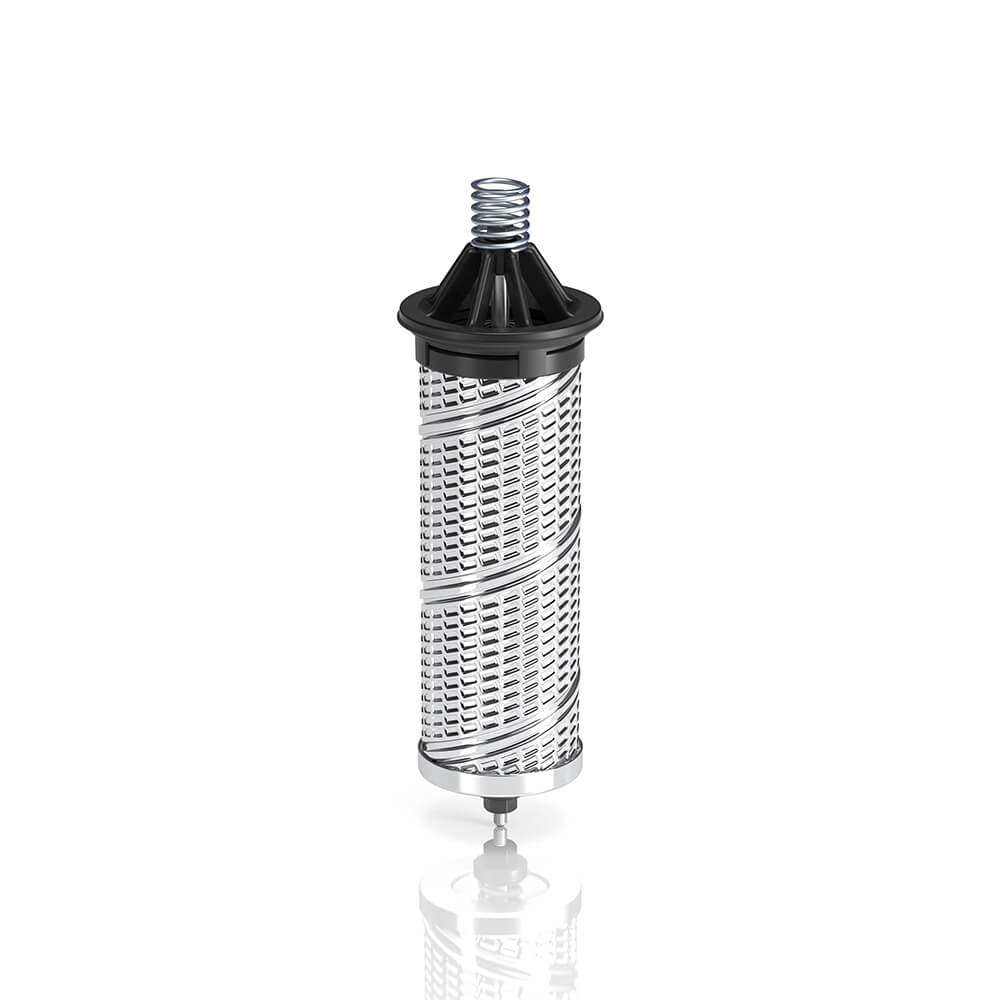

FILTER ELEMENT
