MPH

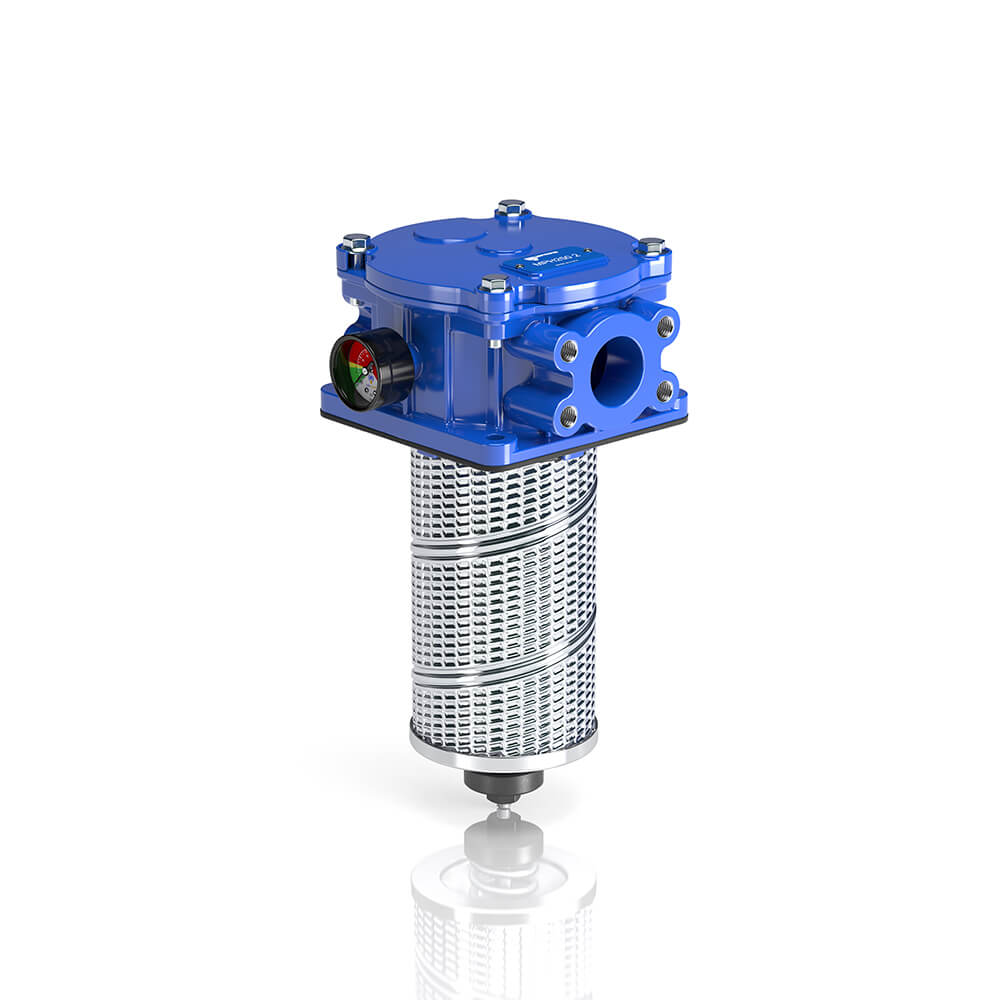

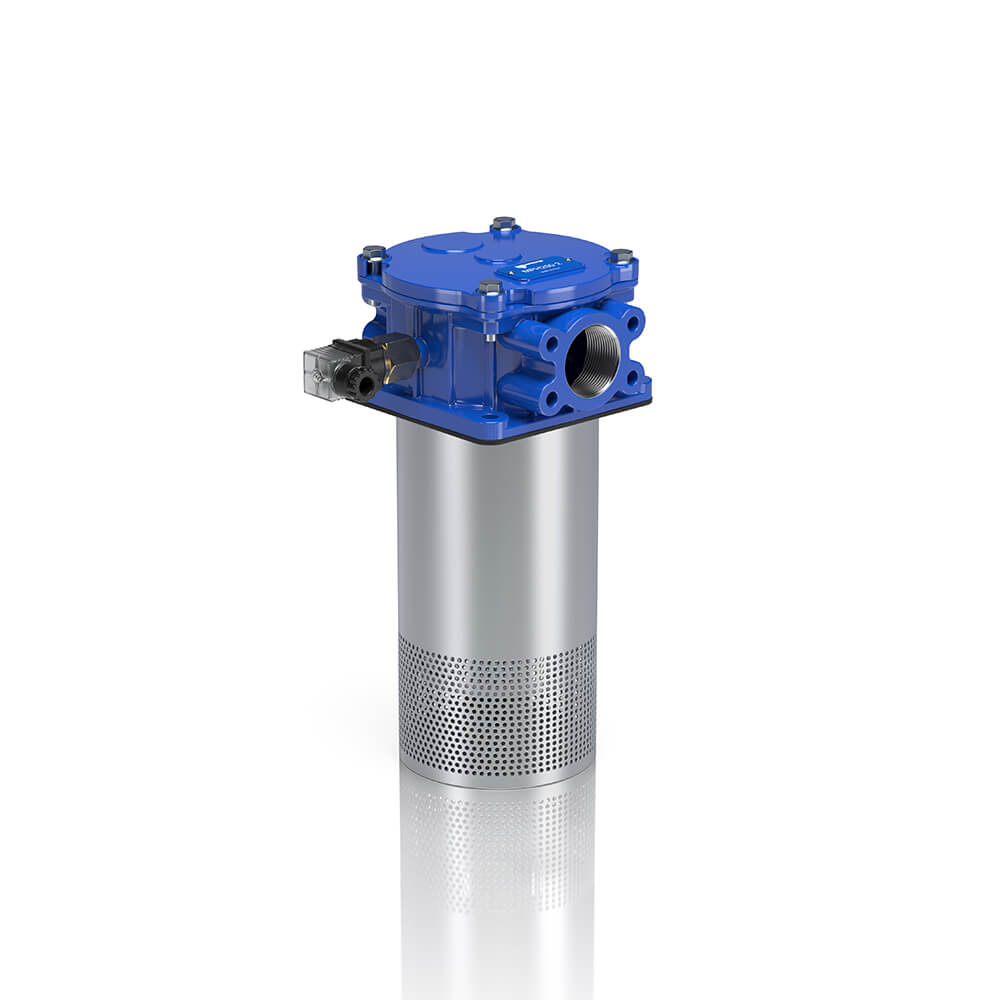

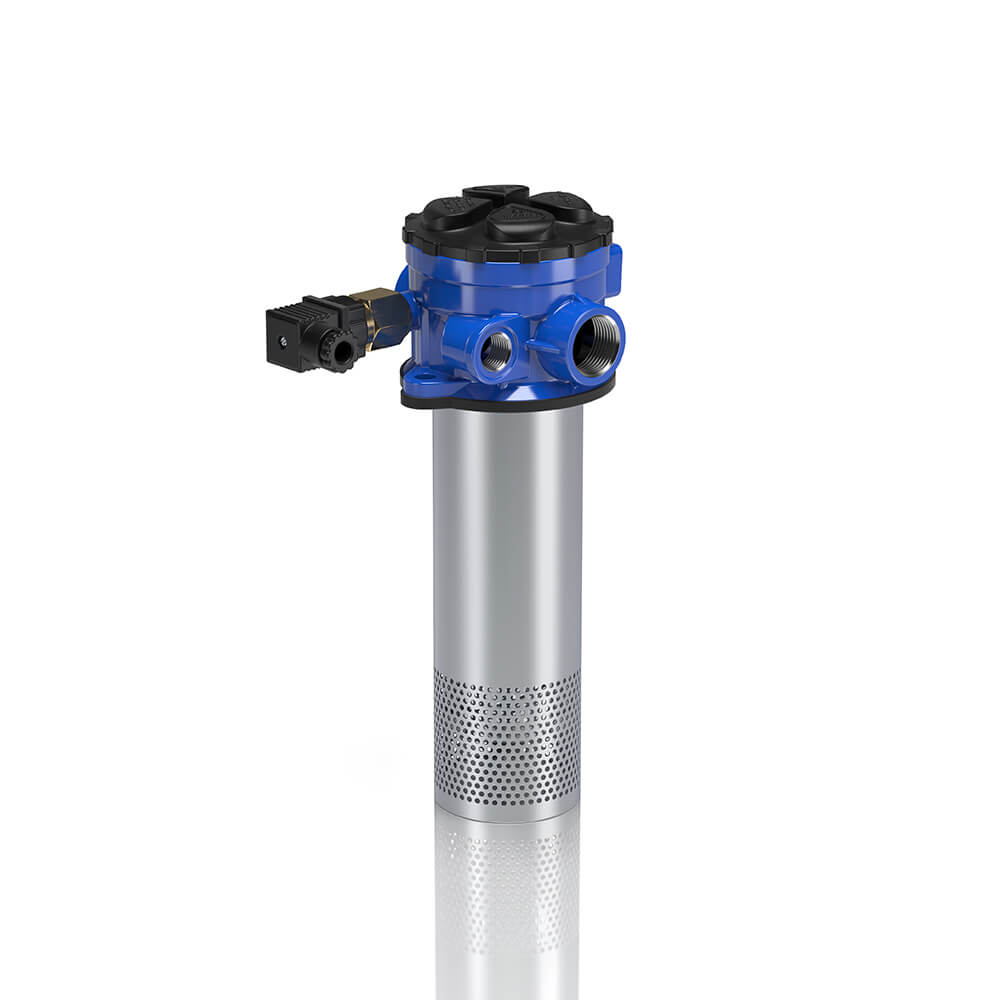

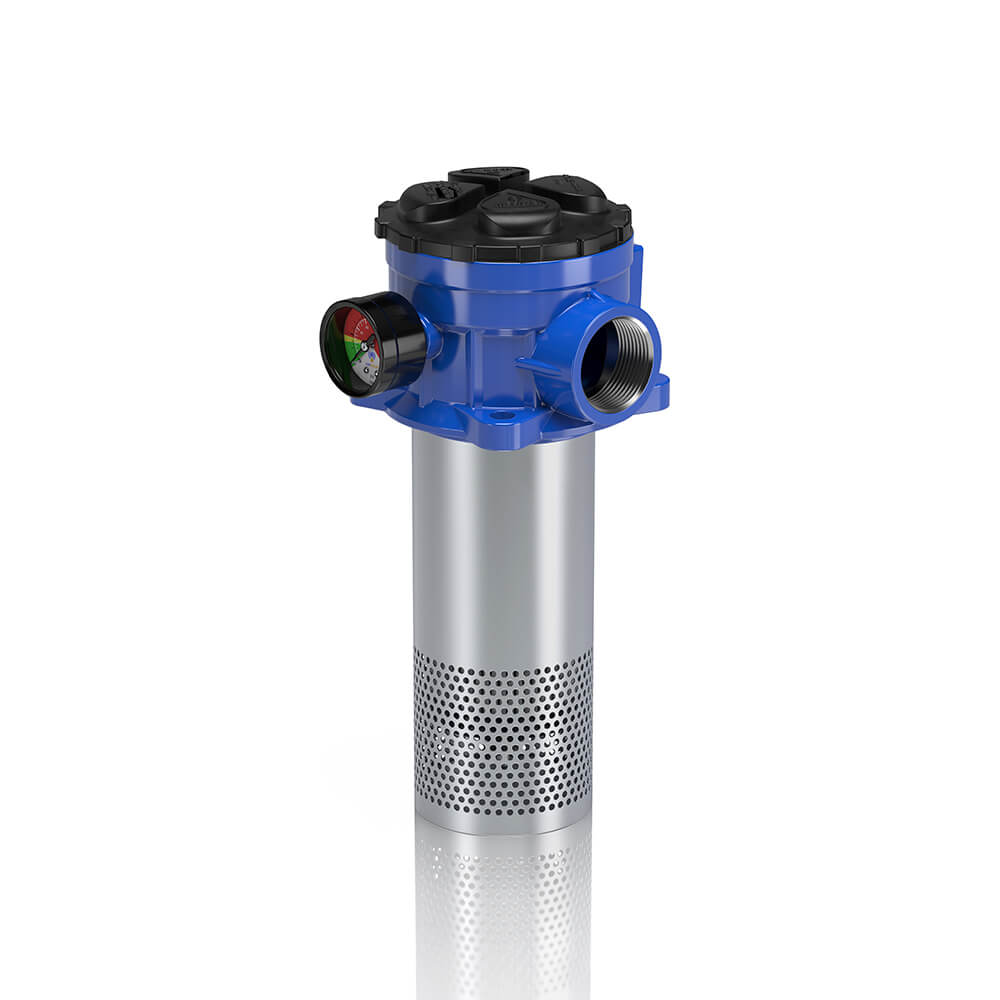

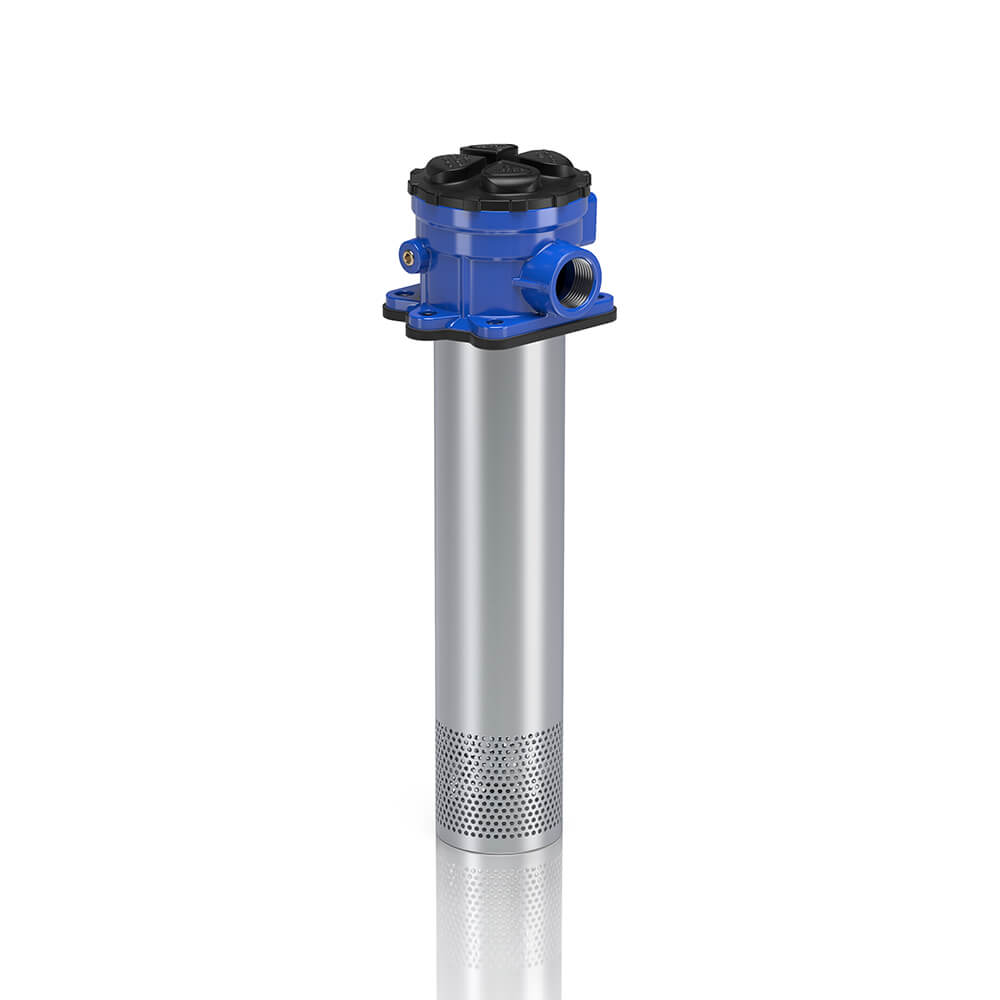

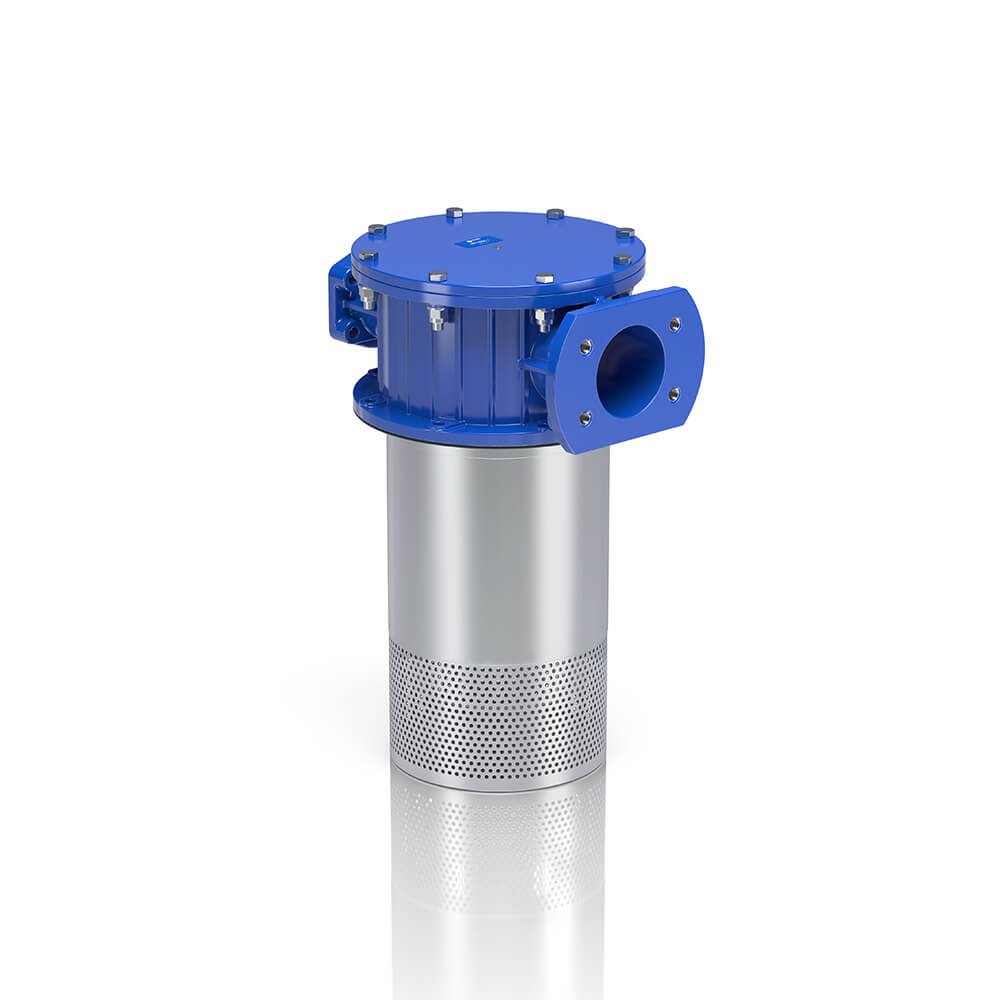

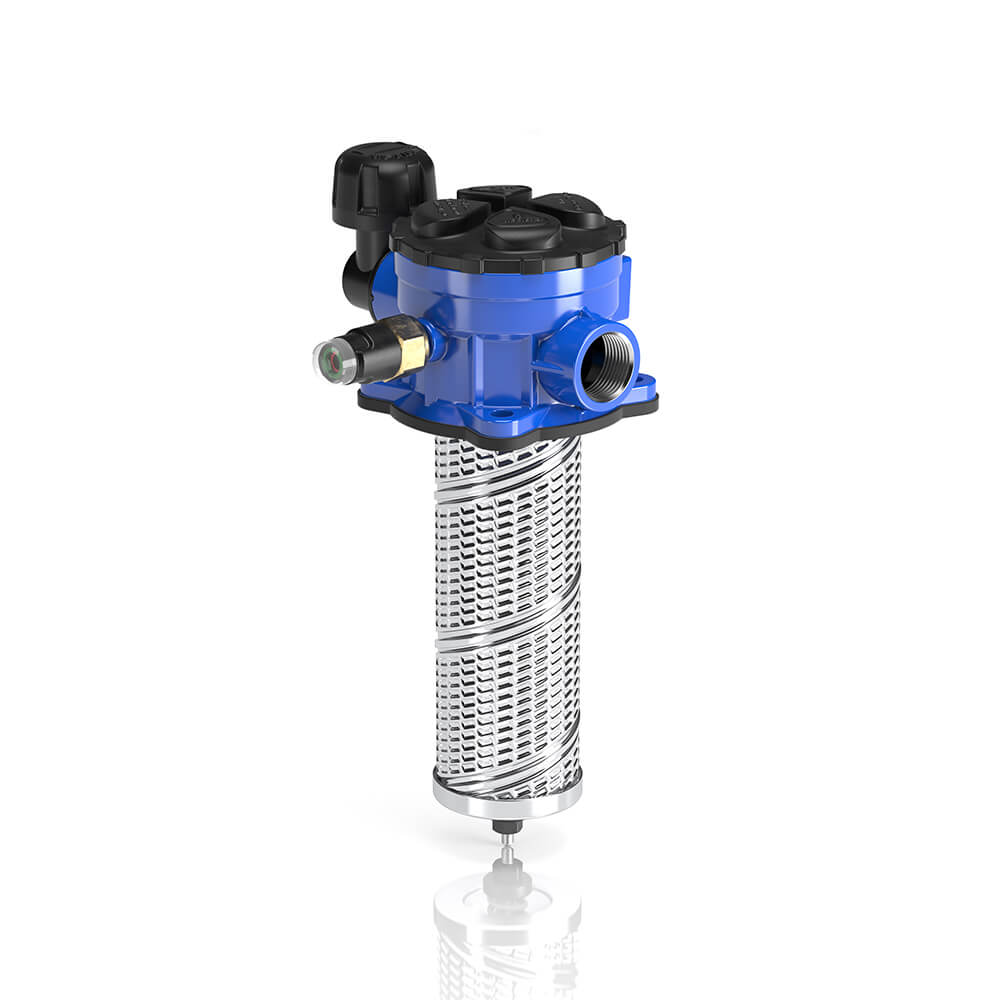

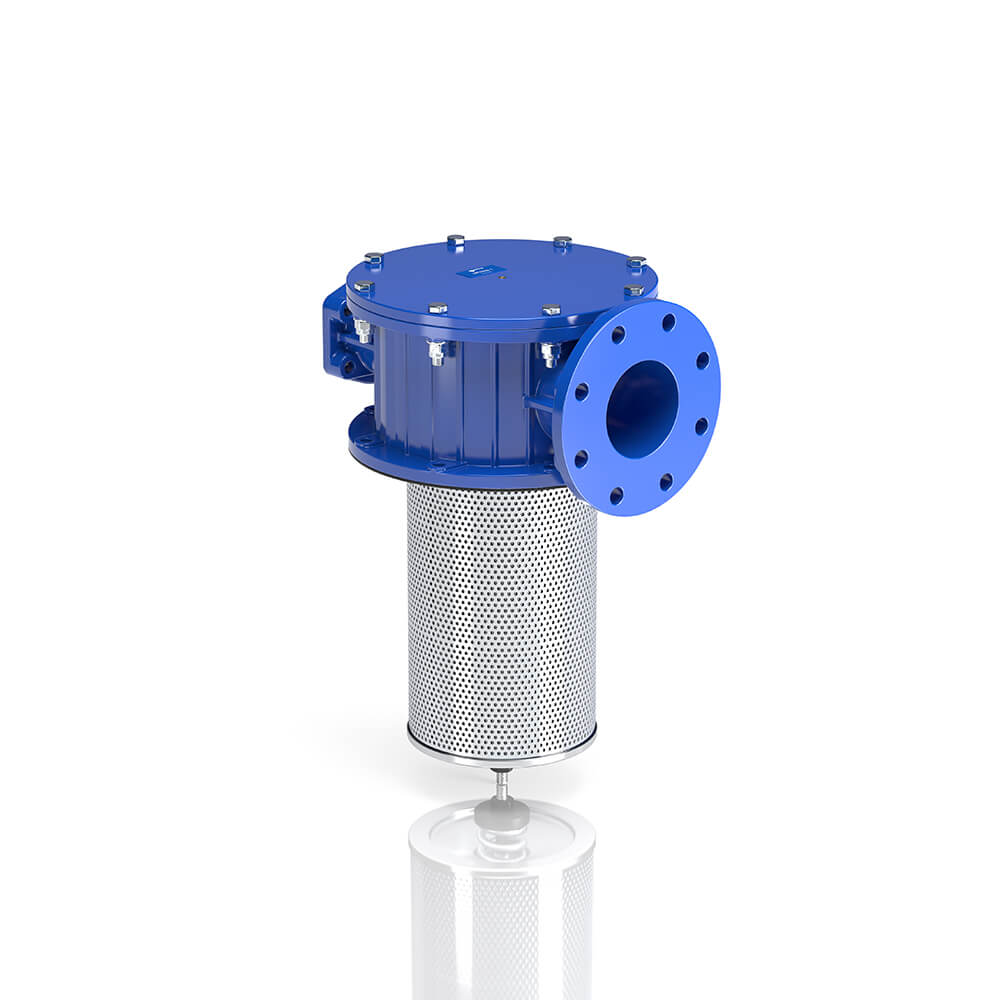

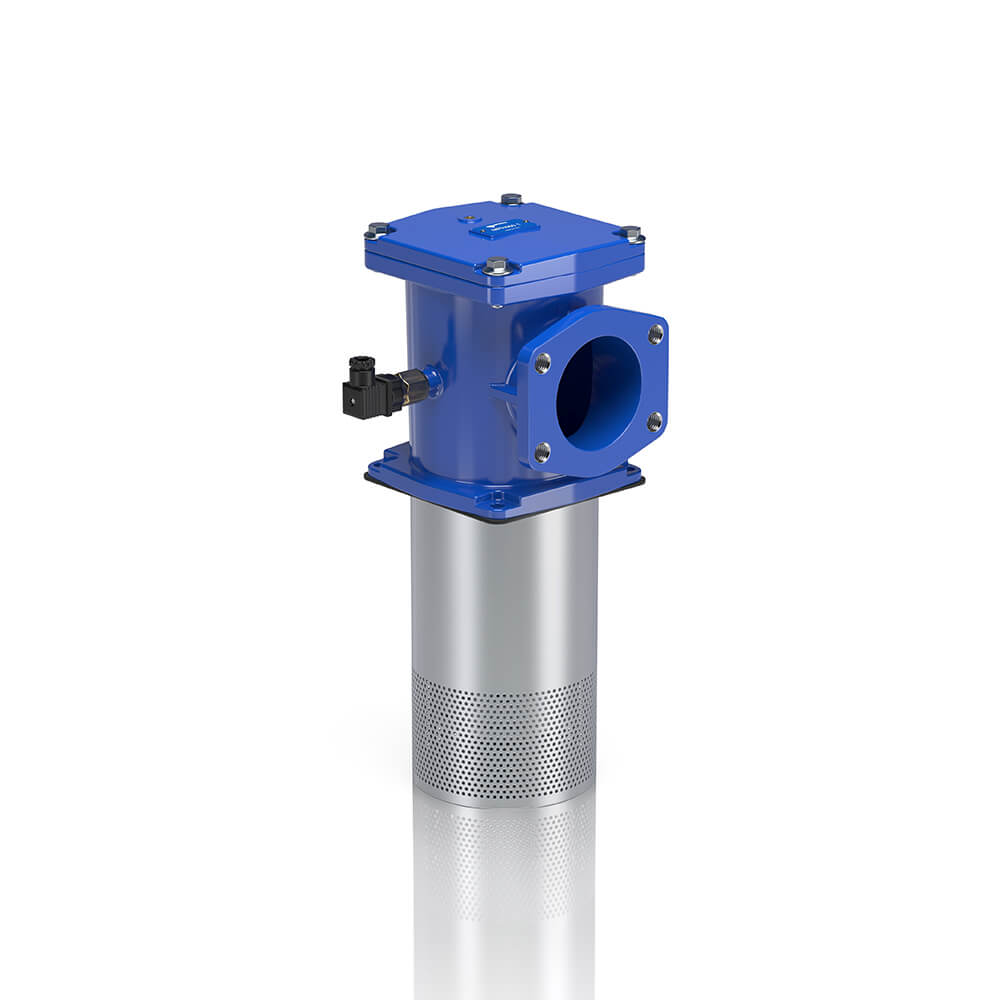

Tank mounted return filter, element oil flow internal to external. Working pressure up to 145 psi (10 bar), flow rates up to 793 gpm (3000 l/min), threaded connections from 3/4” to 1 1/2” BSP/NPT/SAE and SAE code 61 flanged connections up to 4" and DN 100 PN 10/16 UNI 2223.

FILTER SIZING 3D DOWNLOAD TECHNICAL BROCHURE

FEATURES & BENEFITS
TECHNICAL DATA
LITERATURE

Heavy duty high flow rate return filter available in single or dual ports, specifically designed for heavy duty applications, available with or without oil flow diffuser or magnetic column. "Inside to Outside" oil flow element design retains captured contamination within the element replacing the element and preventing contamination back into the tank. The air breather plug is integrated.

See the relevant table for compatibility on fluids.

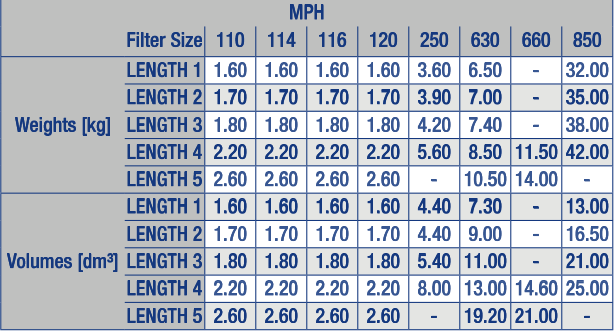

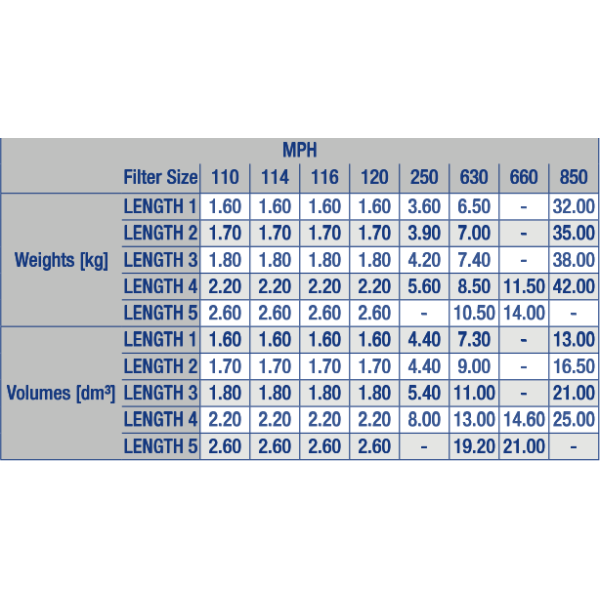

WEIGHTS AND VOLUMES

MPH

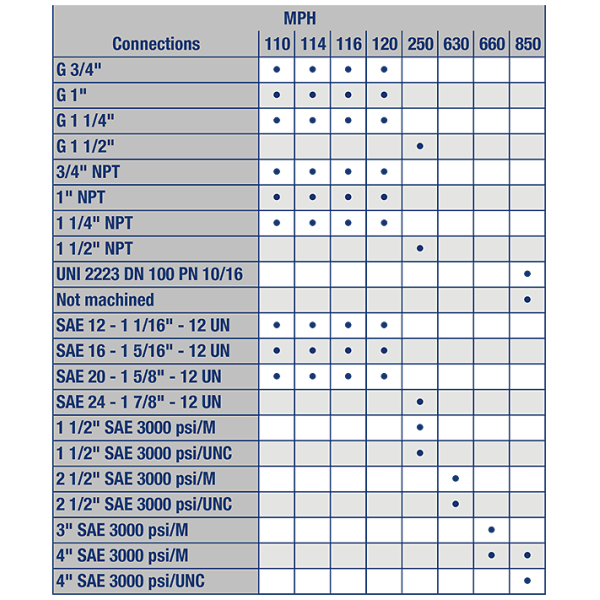

CONNECTIONS

MPH

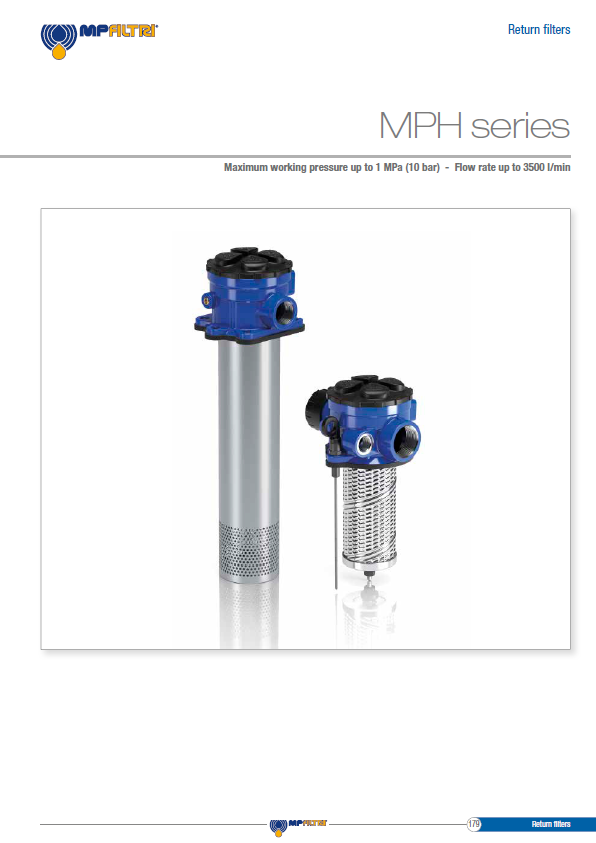

BROCHURES
