FZX

In-line stainless steel pressure filter with threaded mount. Working pressure up to 14504 psi (1000 bar), flow rates up to 3 gpm (10 l/min), threaded connections from 1/4” to 1/2" BSP/NPT and from 9/16" to 3/4" UNF/NPS for autoclave 20000 psi.

FILTER SIZING 3D DOWNLOAD TECHNICAL BROCHURE

FEATURES & BENEFITS
TECHNICAL DATA
LITERATURE

Stainless steel filters suitable for low temperature applications, corrosive environments and or special fluids found in the offshore oil industry and demanding hydraulic applications up to 1000 bar.

See the relevant table for compatibility on fluids.

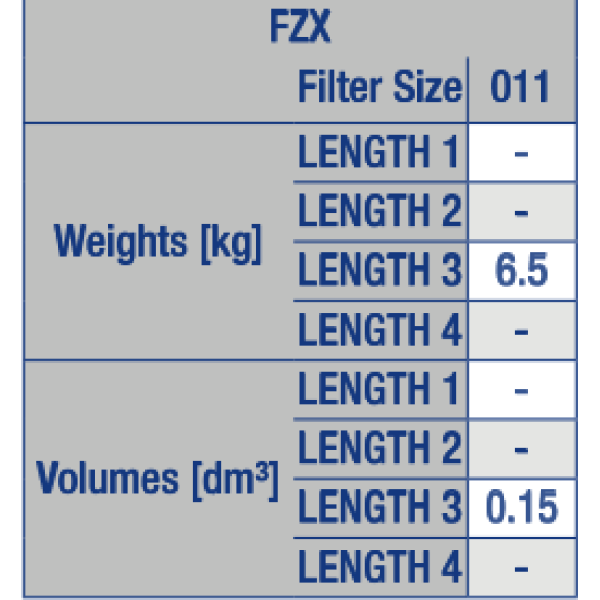

WEIGHTS AND VOLUMES

FZX

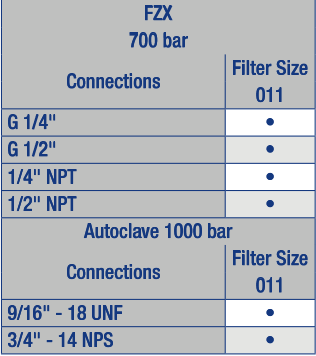

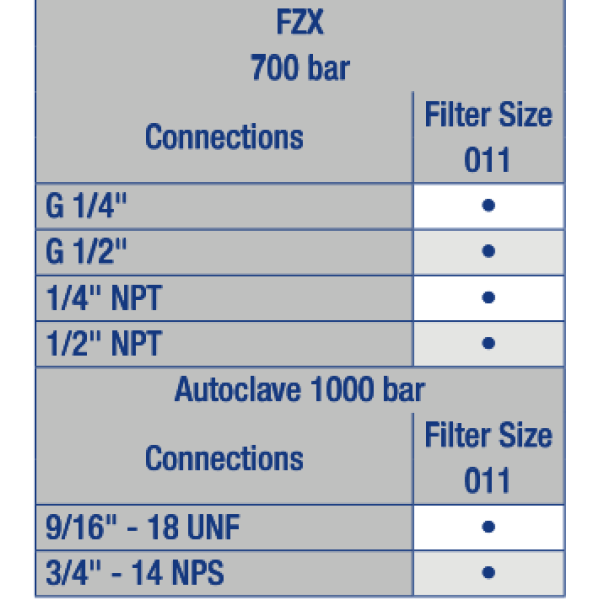

CONNECTIONS

FZX

BROCHURES

FILTER ELEMENT

Product range

Hydraulic Filtration

CATALOGS

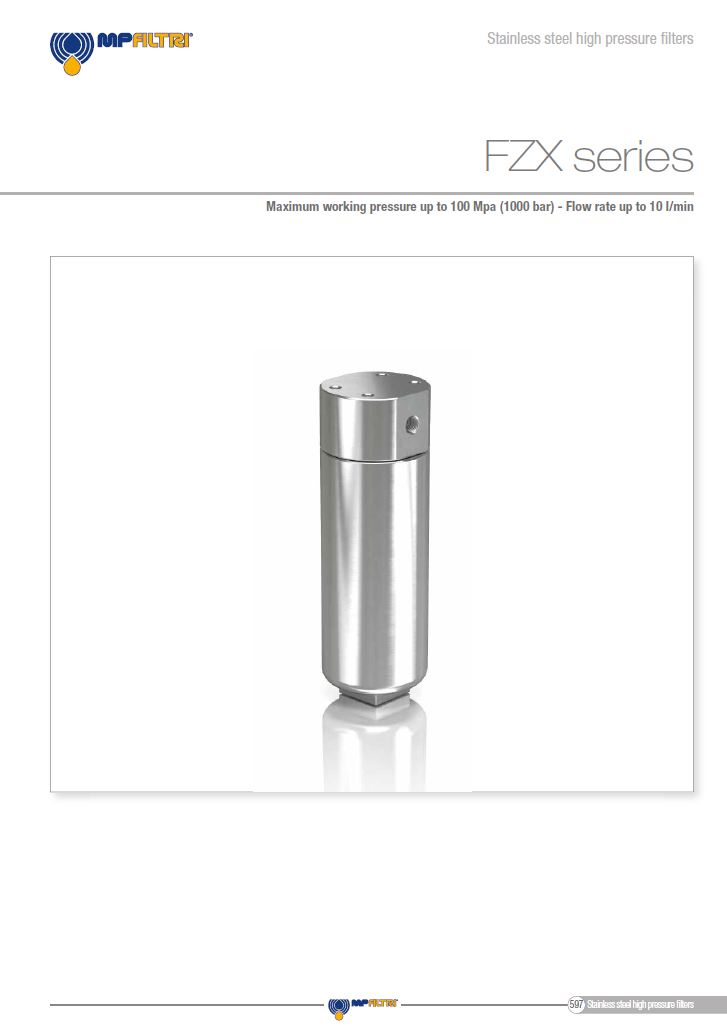

Stainless Steel filters

FZX stainless steel

Hydraulic Filtration
