FZD

In-line stainless steel duplex pressure filter for continuous operation. Working pressure up to 5075 psi (350 bar), flow rates up to 24 gpm (90 l/min), threaded connections from 3/8” to 1/2" BSP/NPT/SAE.

FILTER SIZING    3D DOWNLOAD   TECHNICAL BROCHURE
  • FEATURES & BENEFITS
  • TECHNICAL DATA
  • LITERATURE

In-line high pressure stainless steel duplex filter suitable for low temperature applications, corrosive environments and or special fluids found in the offshore oil industry and demanding hydraulic applications allowing element changeout in continuous duty machine operations.

See the relevant table for compatibility on fluids.

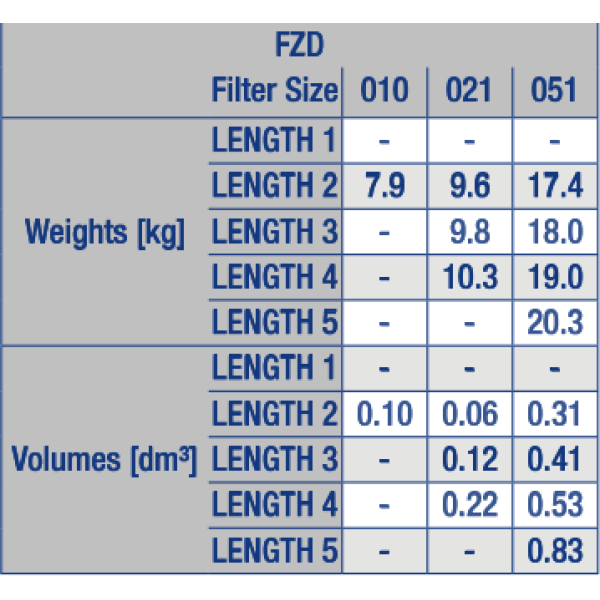

WEIGHTS AND VOLUMES
FZD

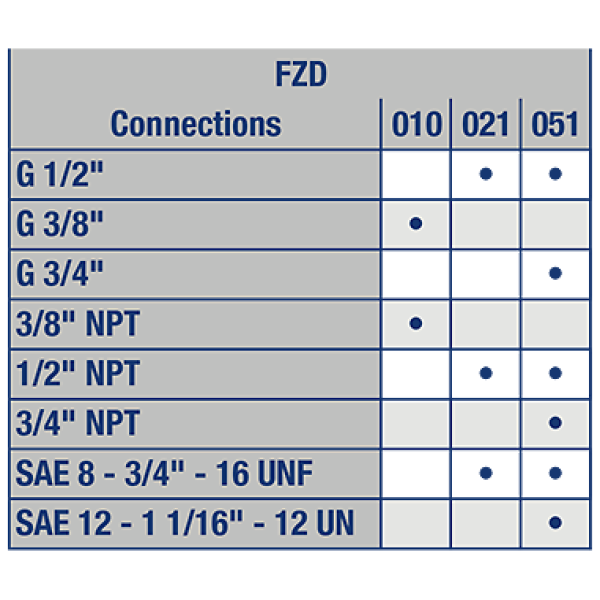

CONNECTIONS
FZD

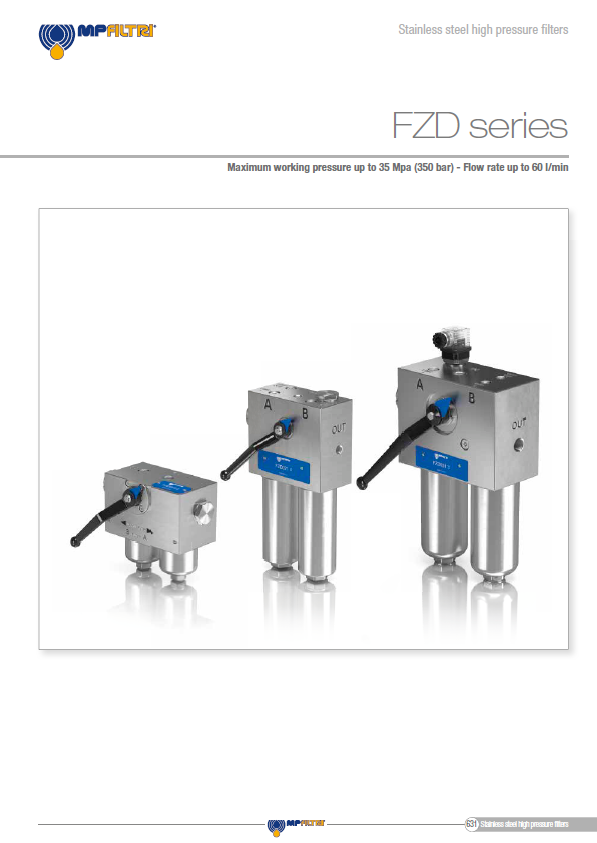

CATALOGS
Stainless Steel filters
FZD stainless steel
Hydraulic Filtration
BROCHURES
ATEX indicators
FILTER ELEMENT
Hydraulic Filtration
Product range
