High-pressure in-line filter with check and/or reverse flow valve

REGISTRATION

INFO

REQUEST INFO

FHP

In-line high pressure filter. Working pressure up to 6090 psi (420 bar), flow rates up to 198 gpm (750 l/min), threaded connections up to 1 1/2” BSP/NPT/SAE and SAE code 62 flanged connections up to 2".

FILTER SIZING 3D DOWNLOAD TECHNICAL BROCHURE

FEATURES & BENEFITS
TECHNICAL DATA
LITERATURE
VIDEO

High pressure filter with outlet check valve or reverse flow valve options, specifically designed for high pressure mobile or industrial applications.

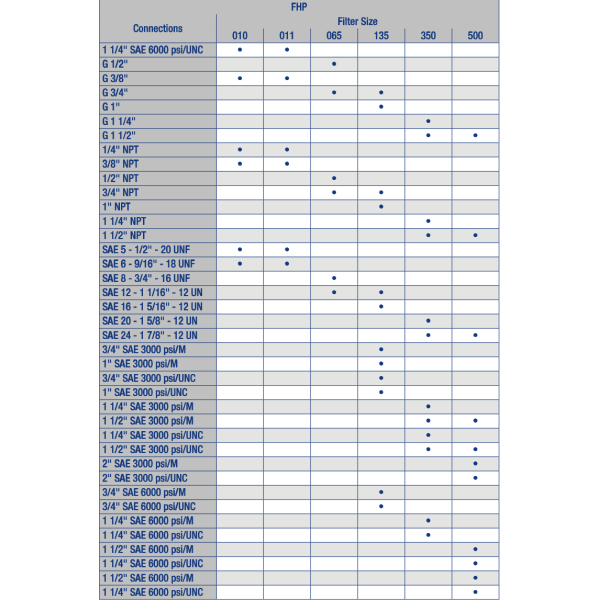

CONNECTIONS

FHP

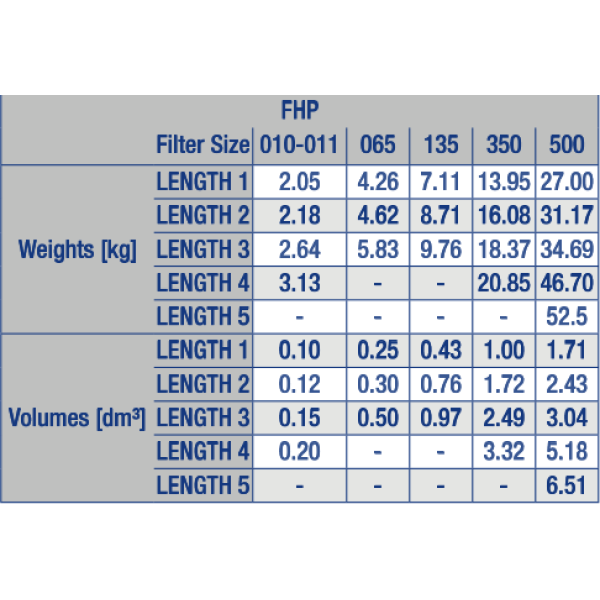

WEIGHTS AND VOLUMES

FHP

CATALOGS

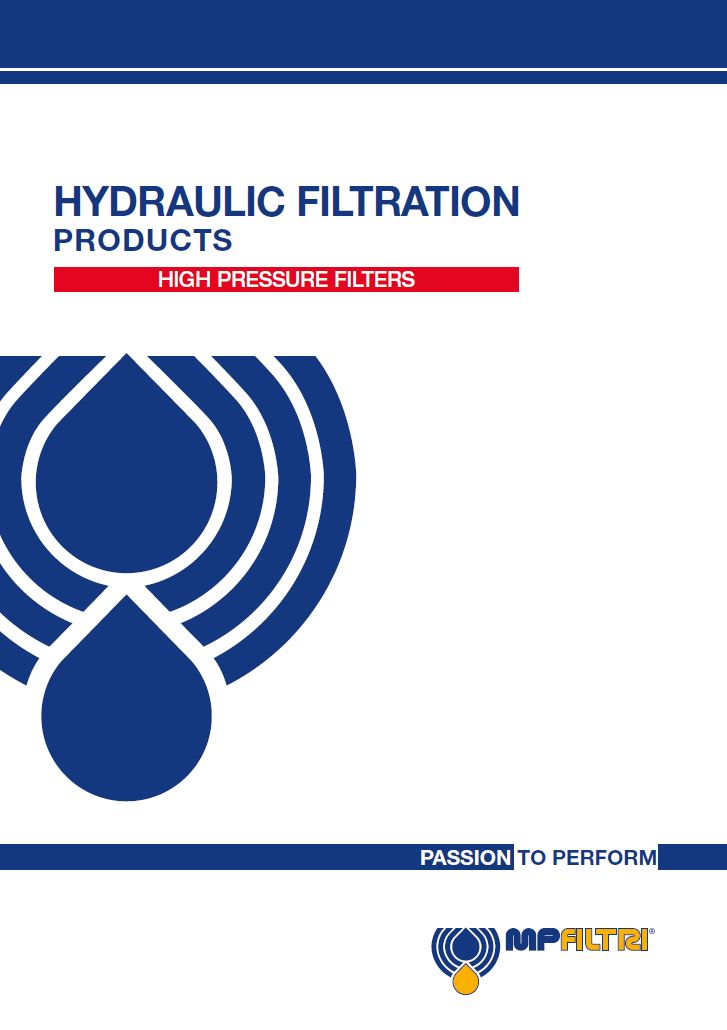

High Pressure Catalog

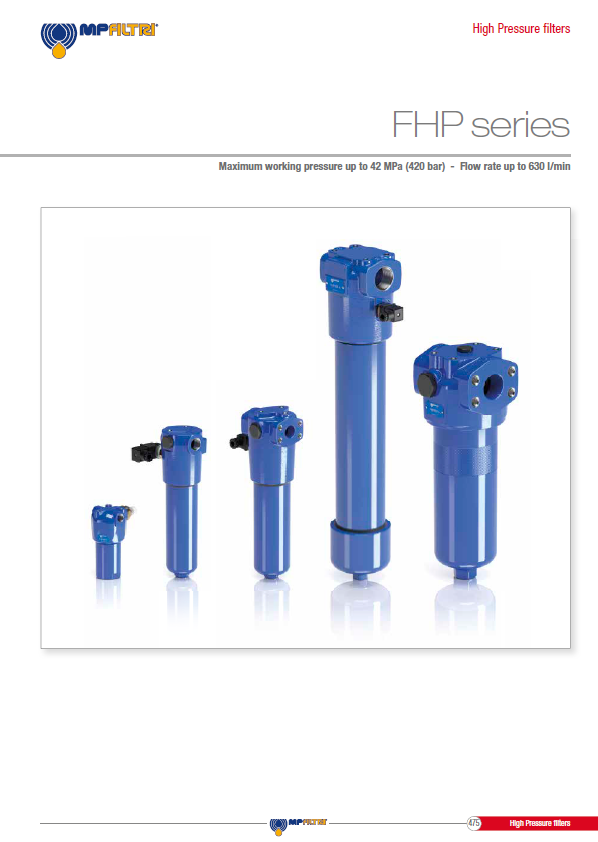

FHP high pressure

Hydraulic Filtration Catalog

BROCHURES

ATEX indicators brochure

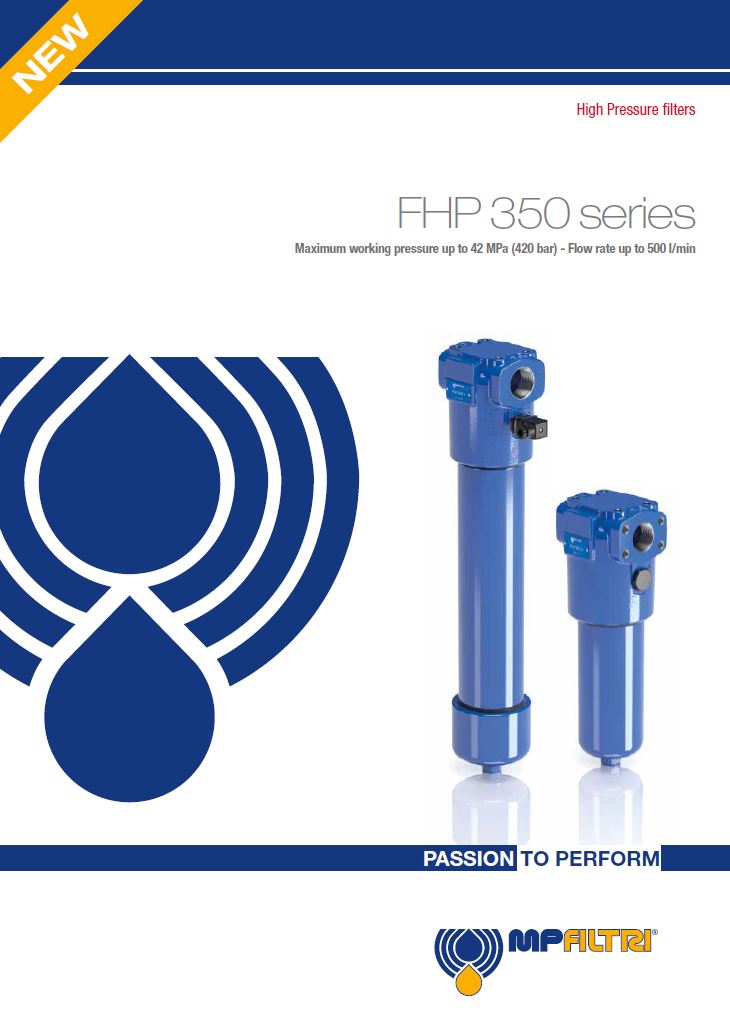

FHP350 high pressure brochure

FILTER ELEMENT

Hydraulic Filtration brochure

Product range brochure

zerospark THE ANTI-STATIC FILTER
