FHD

In-line duplex high pressure filter. Working pressure up to 5075 psi (350 bar), flow rates up to 91 gpm (345 l/min), threaded connections from 1/2” to 1 1/4” BSP/NPT/SAE and SAE code 62 flanged connections 1 1/2”.

FILTER SIZING    3D DOWNLOAD   TECHNICAL BROCHURE
  • FEATURES & BENEFITS
  • TECHNICAL DATA
  • LITERATURE

In-line duplex filter with a wide range of element media options, designed to allow element changeout in continuous duty machine operations.

See the relevant table for compatibility on fluids.

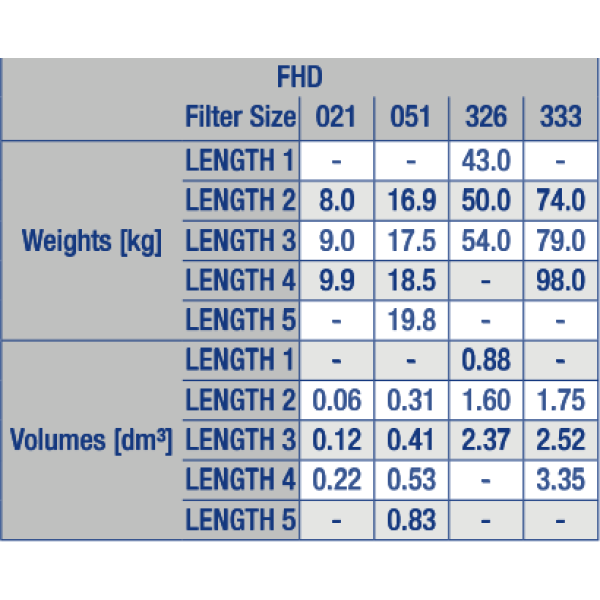

WEIGHTS AND VOLUMES
FHD

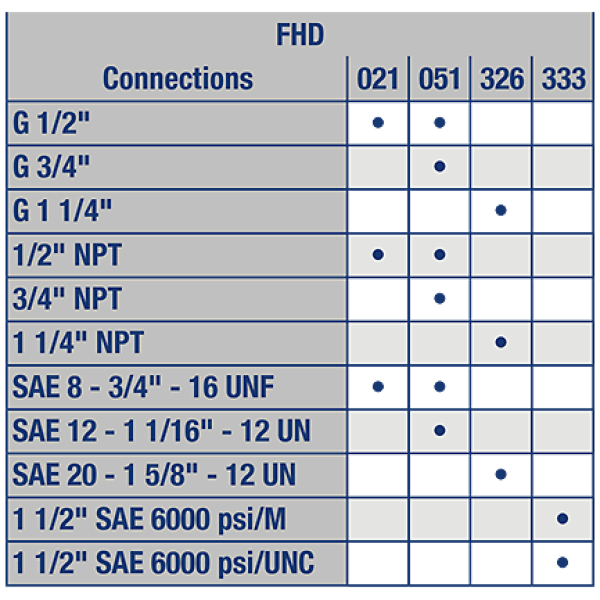

CONNECTIONS
FHD

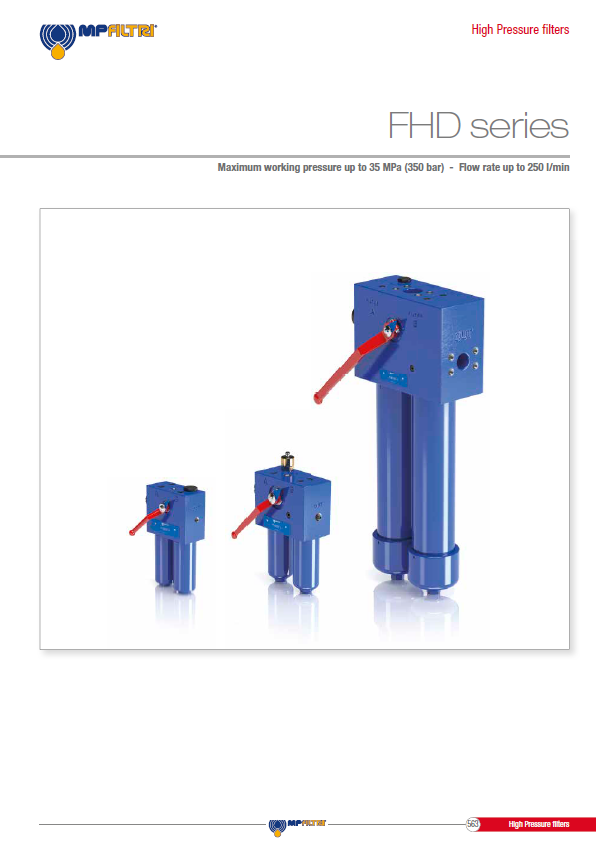

CATALOGS
High Pressure filters
FHD high pressure
Hydraulic Filtration
BROCHURES
FILTER ELEMENT
Hydraulic Filtration
Product range
zerospark THE ANTI-STATIC FILTER
