Contamination monitoring device, manifold mounted, ICU

REGISTRATION

INFO

REQUEST INFO

ICU

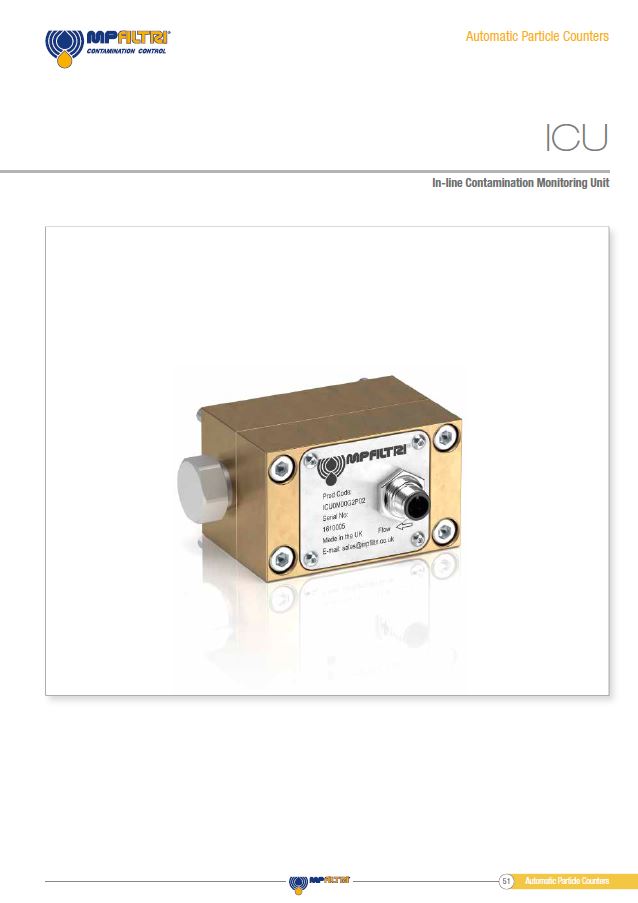

The ICU automatically measures particulate contamination levels in various hydraulic fluids and is designed for industrial applications. It is designed to be manifold mounded directly to systems, where ongoing measurement or analysis is required,and where space and costs are limited.

RECALIBRATION SERVICE TECHNICAL BROCHURE

FEATURES & BENEFITS
TECHNICAL DATA
LITERATURE
SOFTWARE

• Manifold mounting
• 3-channel contamination measurement
• Live real-time monitoring
• Manual, automatic and remote control flexibility
• Provides critical early-warning system
• Protects complex systems
• Industry 4.0 ready
• Measures ISO 4406:2017
• Robust design and construction
• LPA View software (included)
• Maximum operating pressure to 5075 PSI
• Environmental protection IP65/67 versatile
• 4-20mA analogue output as standard

Particle sizing
>4, 6, 14 μm(c) to ISO 4406:2017
Standard analysis
range ISO 4406:2017 Code 0 to 20
Accuracy
± ½ code for 4,6,14 μm(c) across the analysis range
Viscosity
range ≤ 1000 cSt
Fluid temperature
From +25 °C to +80 °C
Ambient temperature
From 0 °C to +60 °C
Pressure
Minimum: 50 bar
Maximum: 350 bar

CATALOGS

CMP Automatic Particle Counters

Contamination Control Solutions

ICU inline APC

MANUALS

CMP View-Software - Quick-start Guide

ICU Use and maintenance manual

LPA View Software Use and maintenance manual

BROCHURES

Contamination Control Solutions

CMP View Software

Product range

CMP View 0.2.8

LPA View: 5.101
