ACMU

Incorporating the ICM, hydraulic pump and valve circuit, the ACMU is specifically designed for viscous/ lubrication systems, where aeration is present.

TECHNICAL BROCHURE
  • FEATURES & BENEFITS
  • TECHNICAL DATA
  • LITERATURE
  • VIDEO
  • SOFTWARE

• Self contained particle counting via integrated pump and manifold system designed
  for use in aerated hydraulic, lubrication systems and gear
  boxes whereby suppressing air for improved contamination monitoring with ICM 2.0
• Variants for non pressurised/ pressurised systems of lube oil/ gear box applications
• Live real time monitoring



Particle sizing
As ICM: >4, 6, 14, 21, 25, 38, 50, 70 μm(c) to ISO 4406:2017
Standard fluid compatibility / Corrosion resistance
Hydrocarbon based & Synthetic hydraulic fluids
Circuit flow rate
40 ml/min to 400 ml/min
Viscosity range
Max. 1000 cSt - Min. 10 cSt
Fluid temperature (Start Up)
Minimum: Viscosity dependant. Not greater than 1000 cSt
Maximum: +80 °C
Fluid temperature (Continuous)
Minimum: Viscosity dependant. Not greater than 1000 cSt
Maximum: +80 °C
Ambient temperature (Start Up)
From -40°C to +50 °C Inlet Pressure Min. Positive pressure - Max. 50 bar gauge pressure (pump option dependant) Outlet Pressure Min. Atmosphere (1013mbar at sea level) - Max. 3 bar (gauge pressure)
CATALOGS

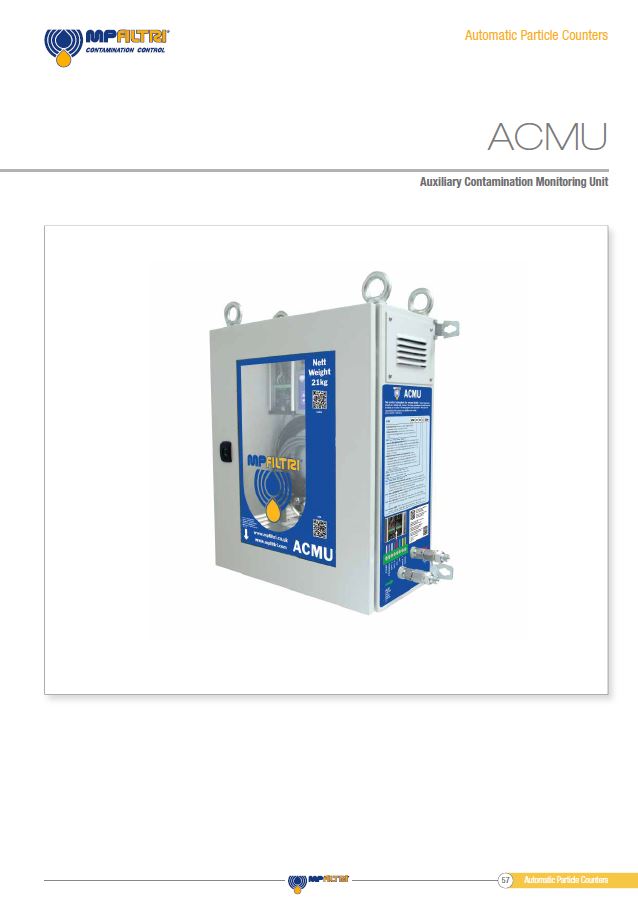

ACMU auxiliary APC
CMP Automatic Particle Counters

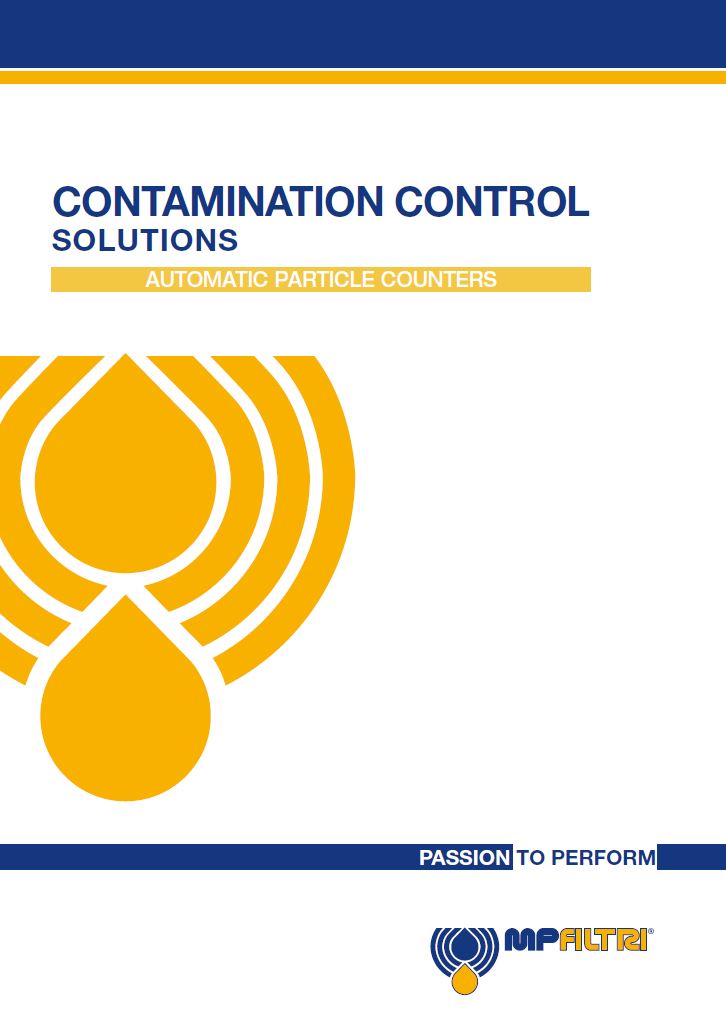

Contamination Control Solutions
MANUALS
ACMU Use and maintenance manual
CMP View-Software - Quick-start Guide

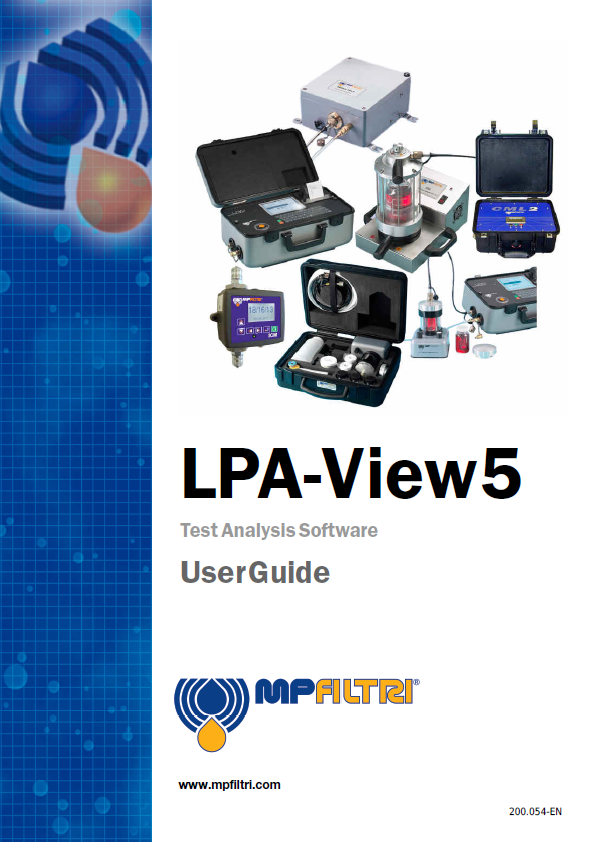

LPA View Software Use and maintenance manual
