Under head semi-immersed suction filter [SF2500]

REGISTRATION

INFO

REQUEST INFO

SF2 500

Semi-submerged positive head suction filter, tank side or bottom mounting. Flow rates up to 211 gpm (800 l/min), SAE code 61 flanged connections up to 4" with multi-port options.

FILTER SIZING 3D DOWNLOAD TECHNICAL BROCHURE

FEATURES & BENEFITS
TECHNICAL DATA
LITERATURE

High flow rate suction filter. Features an anti-drain valve allowing filter element change without draining the tank. An optional magnetic column captures ferrous particles and flexibility with multi-port supply.

See the relevant table for compatibility on fluids.

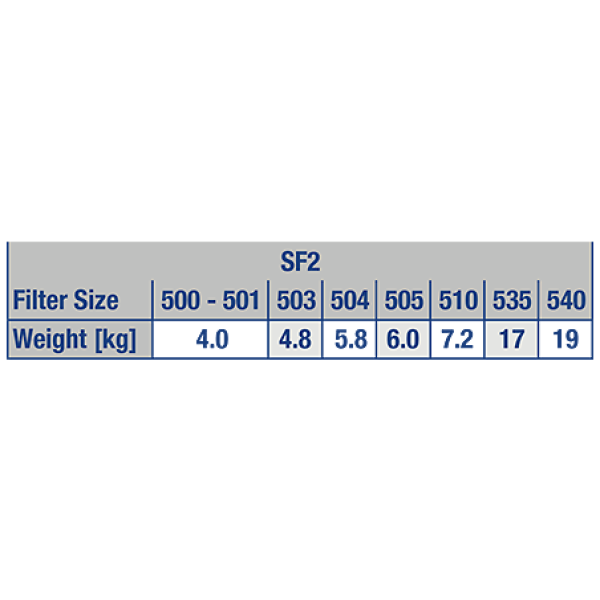

WEIGHTS AND VOLUMES

SF2500

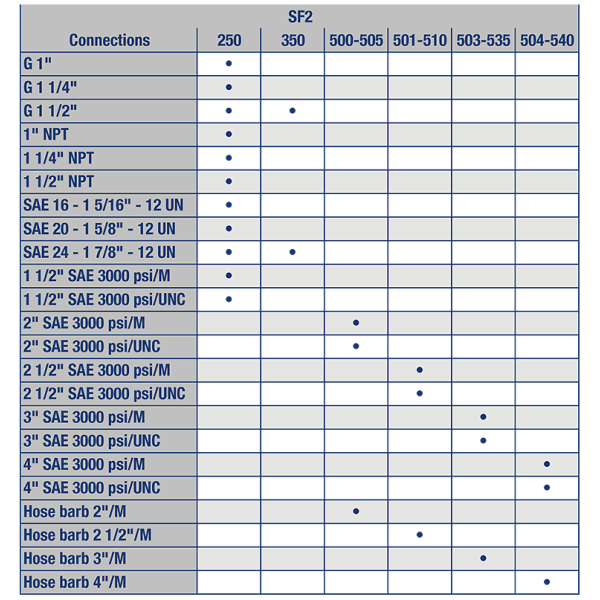

CONNECTIONS

SF2

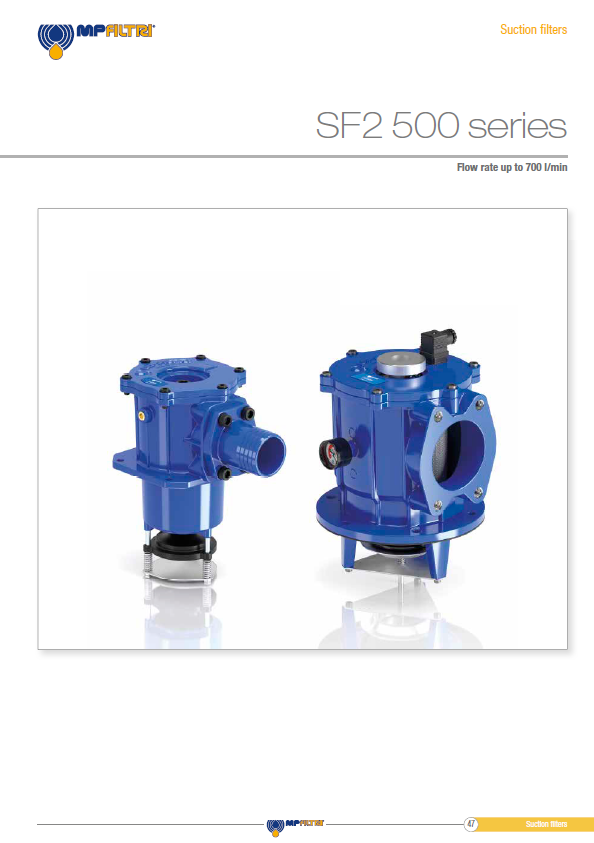

BROCHURES

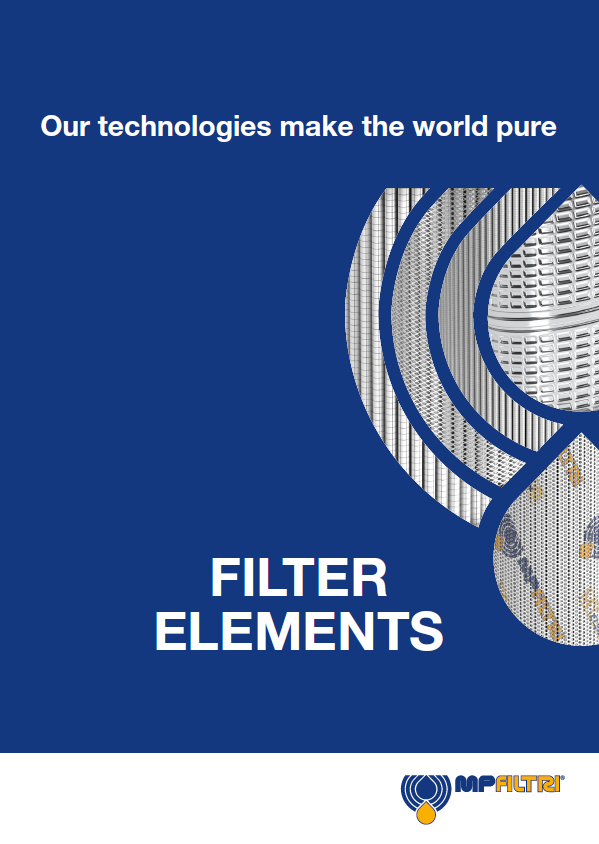

FILTER ELEMENT

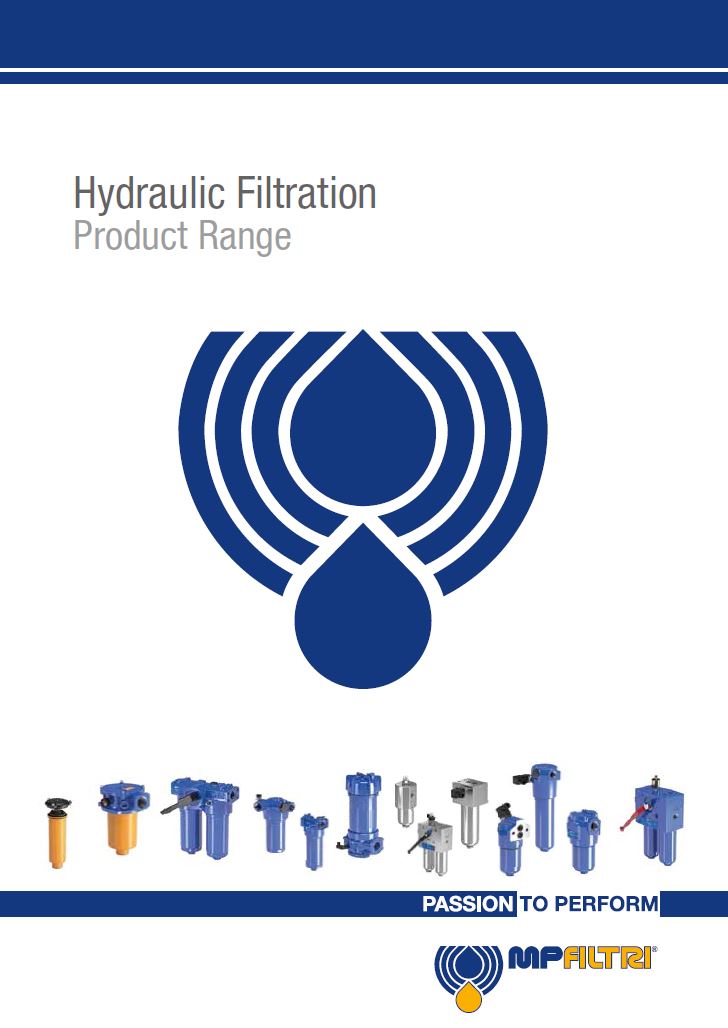

Product range

Hydraulic Filtration

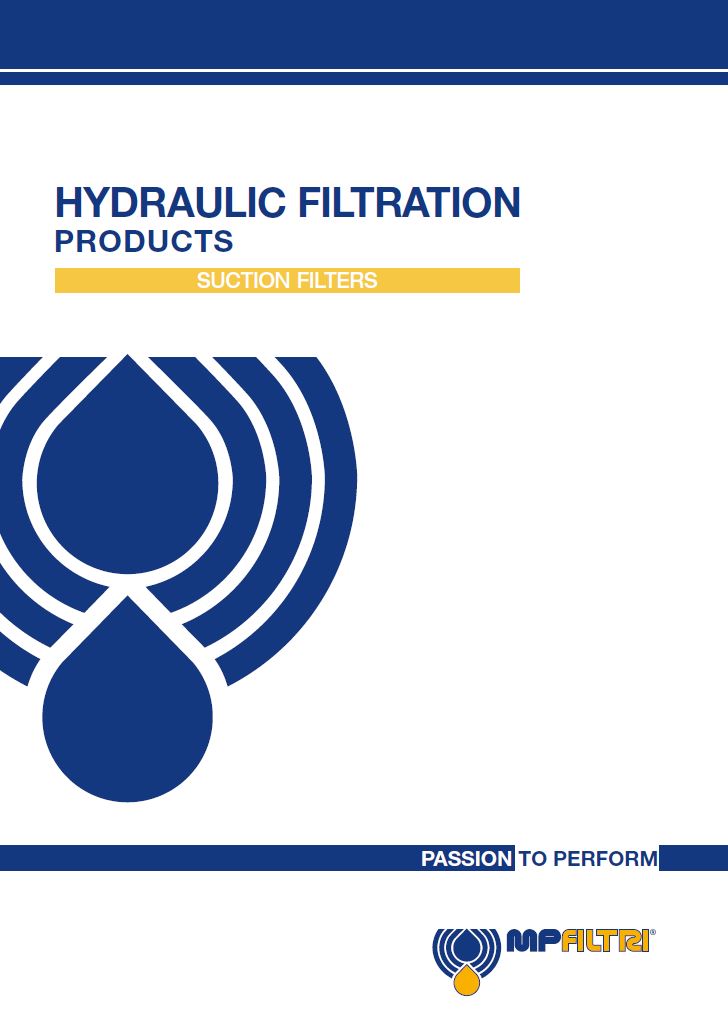

CATALOGS

SF2 500 suction

Suction filtes

Hydraulic Filtration
