MPS

Suction - return - in-line mounted Spin-On, available with single or dual cartridge. Working pressure up to 174 psi (12 bar), flow rates up to 96 gpm (365 l/min), threaded connections from 3/4” and 1 1/2” BSP/NPT/SAE and SAE code 61 flanged connections 1 1/2”.

FILTER SIZING    3D DOWNLOAD
  • FEATURES & BENEFITS
  • TECHNICAL DATA
  • LITERATURE
  • VIDEO
Classic spin-on filter for applications up to 175 PSI, with extended length element options as well as single and double head assemblies. Good performances/dimensions/costs ratio.

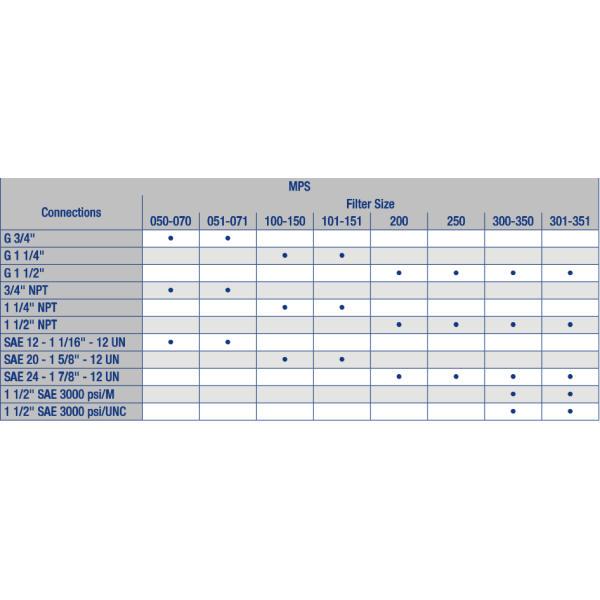

CONNECTIONS
MPS

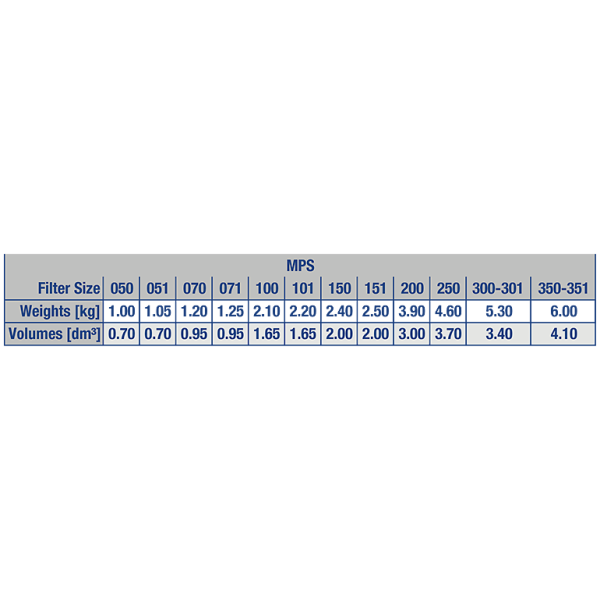

WEIGHTS AND VOLUMES
MPS
CATALOGS

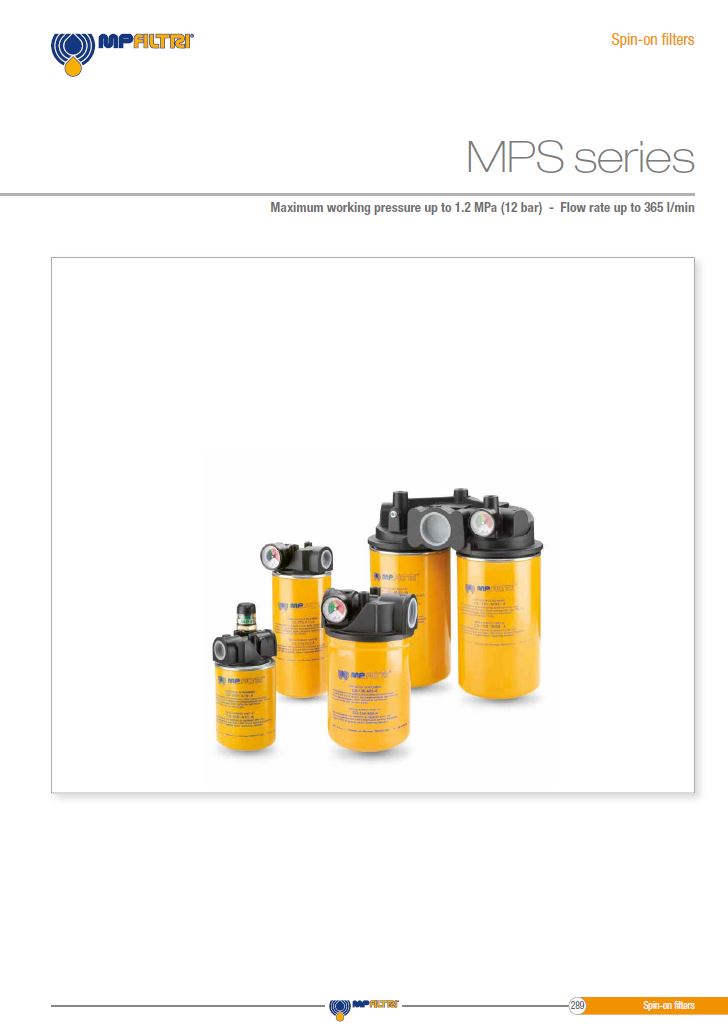

Spin-on Catalog
Spin-On FILTERS: MPS
Hydraulic Filtration Catalog
BROCHURES
FILTER ELEMENT
Hydraulic Filtration brochure
Product range brochure
