MRSX

Tank top Return/Suction filter for mobile machinery. Working pressure up to 145 psi (10 bar), flow rates up to 79 gpm (300 l/min), threaded connections from 3/4” to 1 1/4” BSP/NPT/SAE.

FILTER SIZING    3D DOWNLOAD   TECHNICAL BROCHURE
  • FEATURES & BENEFITS
  • TECHNICAL DATA
  • LITERATURE

MYclean design to ensure machine reliability, performance, efficiency and ROI by guarantee of original filter elements over the life of the machine. Featuring patented technology, private branding, multiple port and valve circuit options along with OEM specific design capability. Specifically designed for hydrostatic transmission applications with open loop auxiliary circuits, filtering the open loop return flow and provide the charge pump suction line with 7 PSI pre-charge to avoid cavitation during cold start conditions.

See the relevant table for compatibility on fluids.

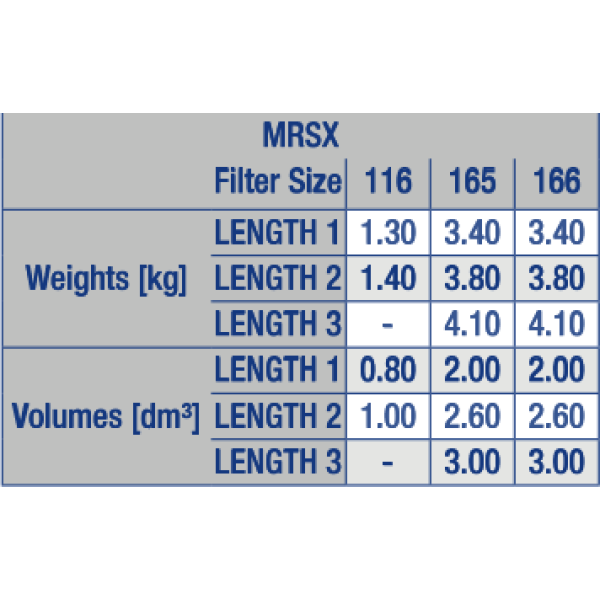

WEIGHTS AND VOLUMES
MRSX

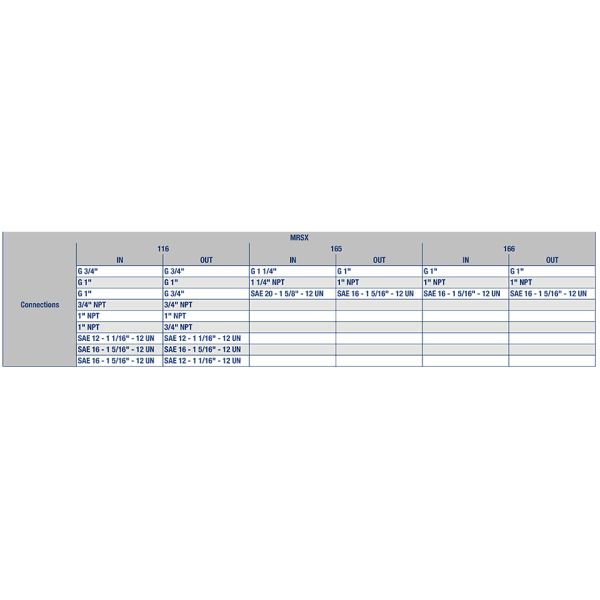

CONNECTIONS
MRSX

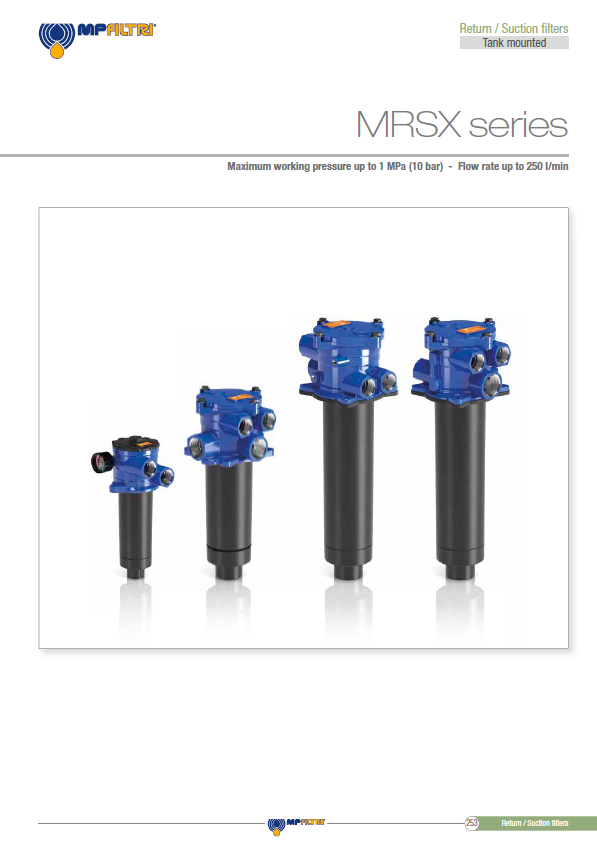

CATALOGS
