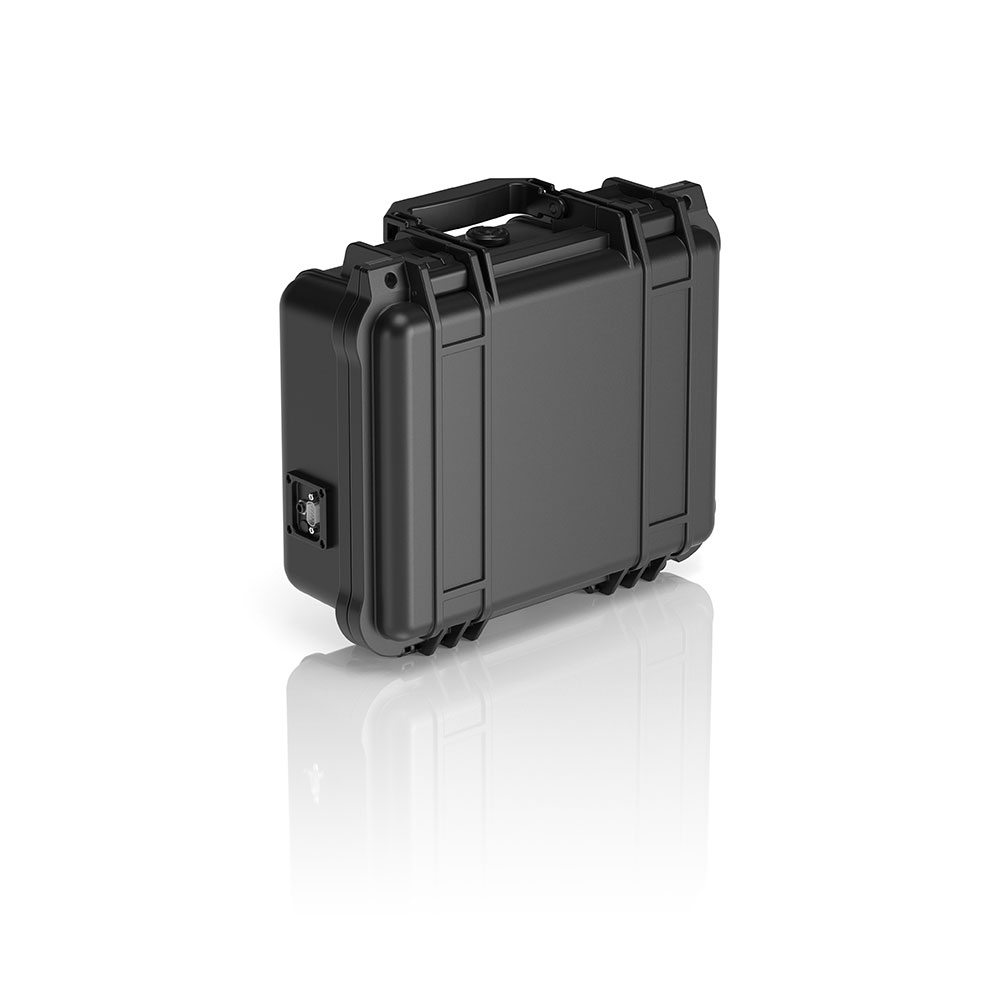

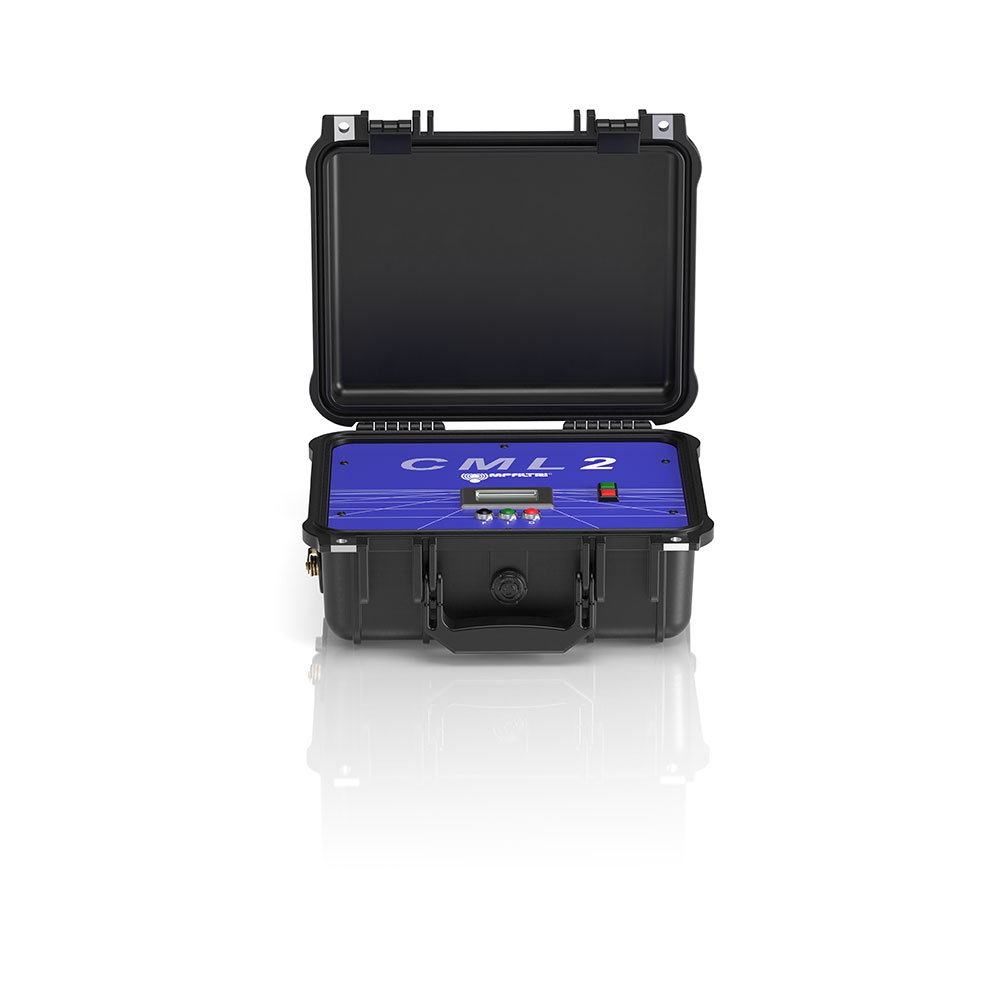

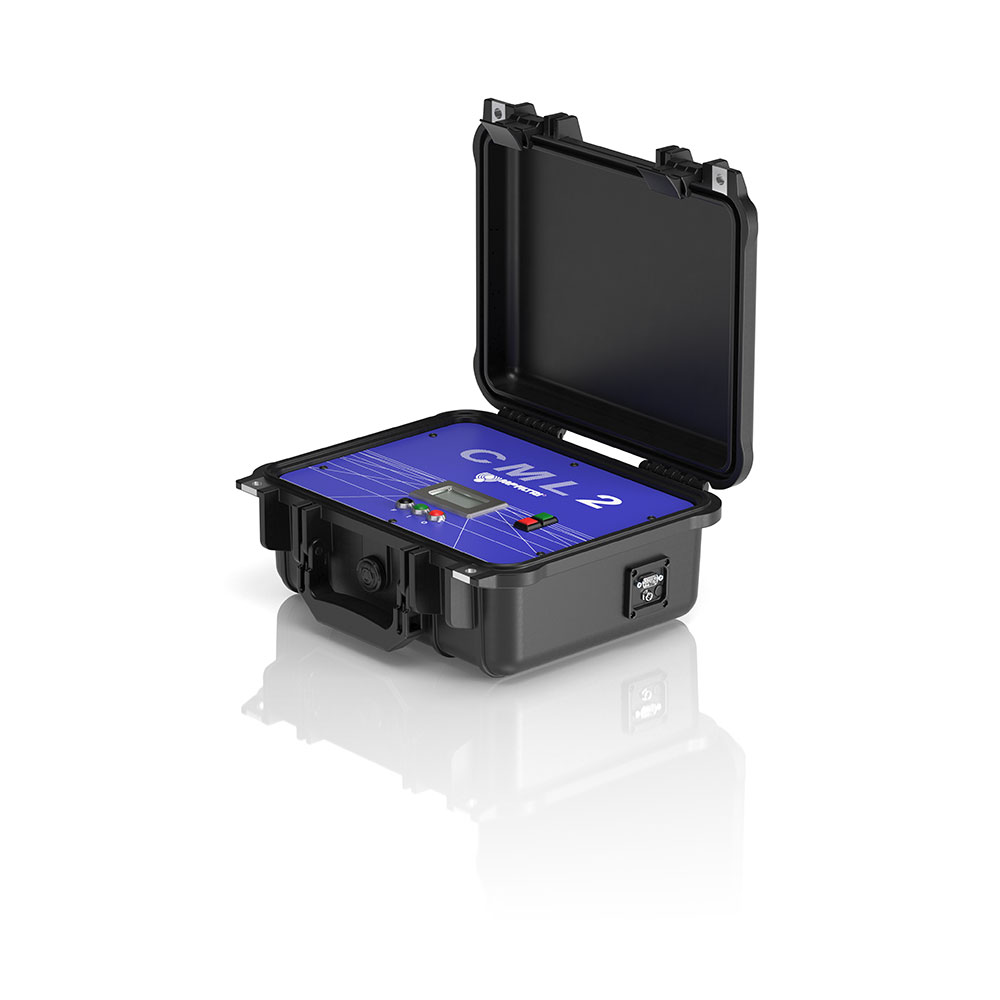

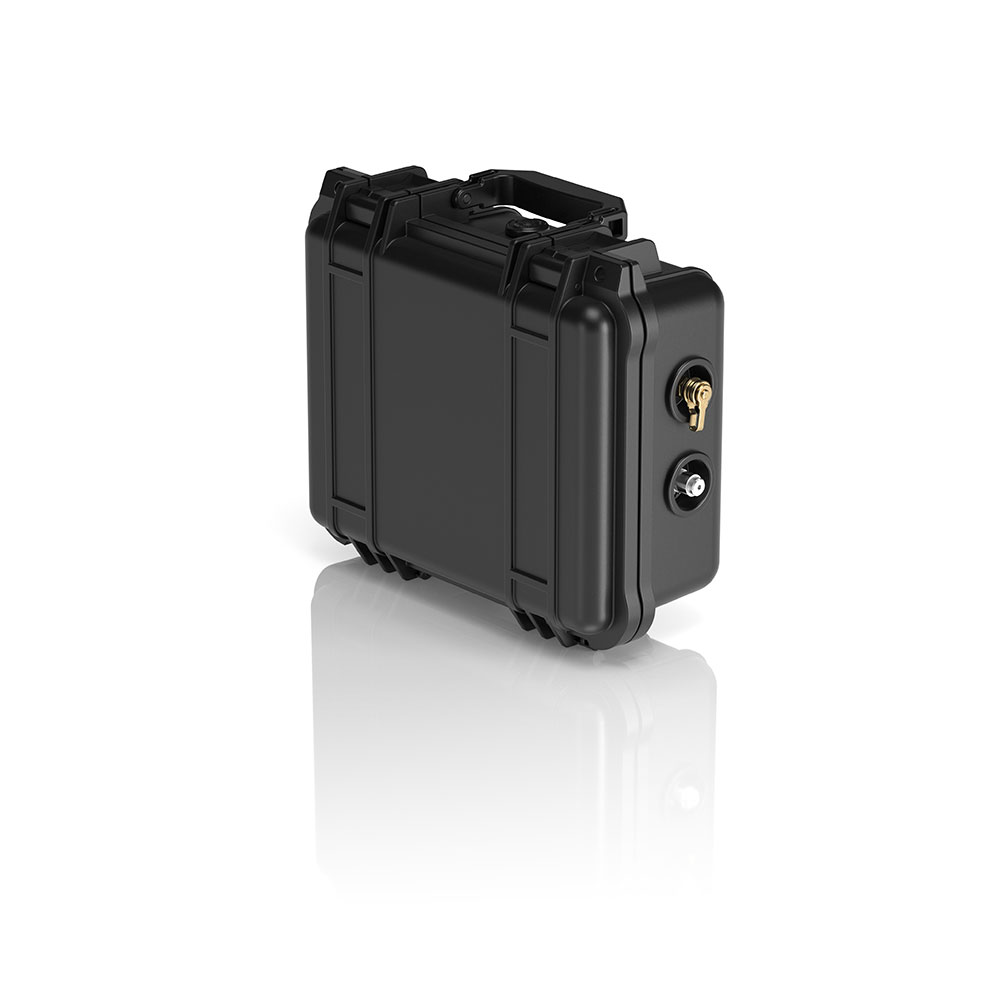

CML2

The CML2 is a portable, accurate laser particle analyser suitable for ‘on-site’ applications. It can automatically measure and display particulate contamination, moisture and temperature levels in various hydraulic fluids.

TECHNICAL BROCHURE
  • FEATURES & BENEFITS
  • TECHNICAL DATA

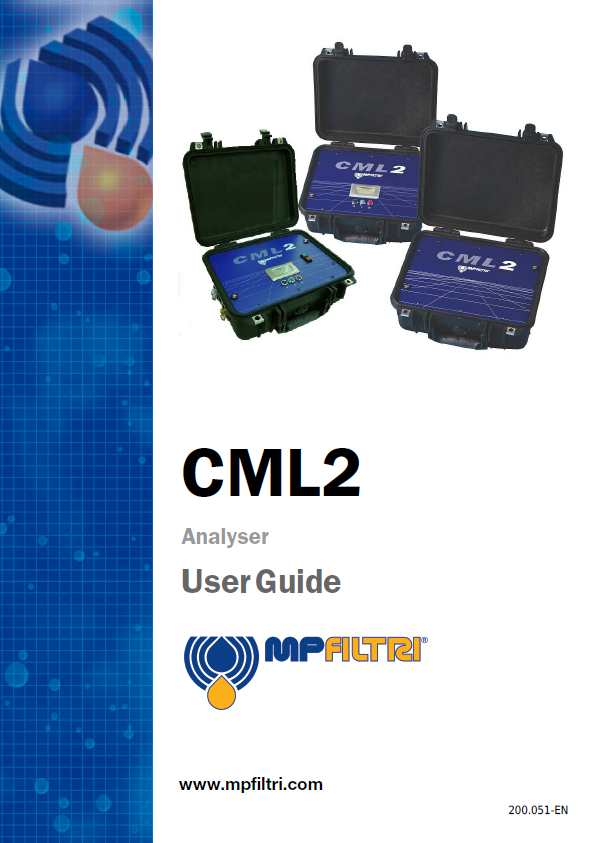

  • LITERATURE
  • SOFTWARE
• Compact, lightweight and rugged Calibrated to relevant ISO standards
• Compatible with various hydraulic fluids
• FREE Windows based LPA View software
• Accessories kit included
• Measures and displays the following international standard formats; ISO 4406:1999,
  NAS 1638, SAE AS 4059 revision E tables 1 & 2
• Data logging and 600 test result memory
• Manual and remote control flexibility
• Internal rechargeable battery
Particle sizing
>4, 6, 14, 21, 25, 38, 50, 70 μm(c) to ISO 4406:2017
Standard analysis range
ISO 4406:2017 Code 8 to 24
NAS 1638 Class 2 to 12
AS4059 Rev. E Table 1 Size Codes 2-12 AS4059 rev E, Table 2 Size Codes, A:000 to 12, B:00 to 12, C:00 to 12, D:2 to 12, E: 4 to 12,F: 7 to 12
Accuracy
Better than 3% typical
Viscosity range
Up to 400 cSt
Fluid temperature
From +5 °C to +80 °C
Ambient temperature
From -10 °C to +60 °C
Temperature measurement
±3 °C
Pressure
Minimum: 2 bar
Maximum: 400 bar
Sample volume / Test time
8 ml. (short): 2:50 15 ml. (normal): 5:00 30 ml. (dynamic): 10:00 24 ml. (bottle sampler): 8:00 15 ml. (continuous): 5:00
BROCHURES
Contamination Control Solutions Brochure
CATALOGUES
Contamination Control Solutions Catalogue

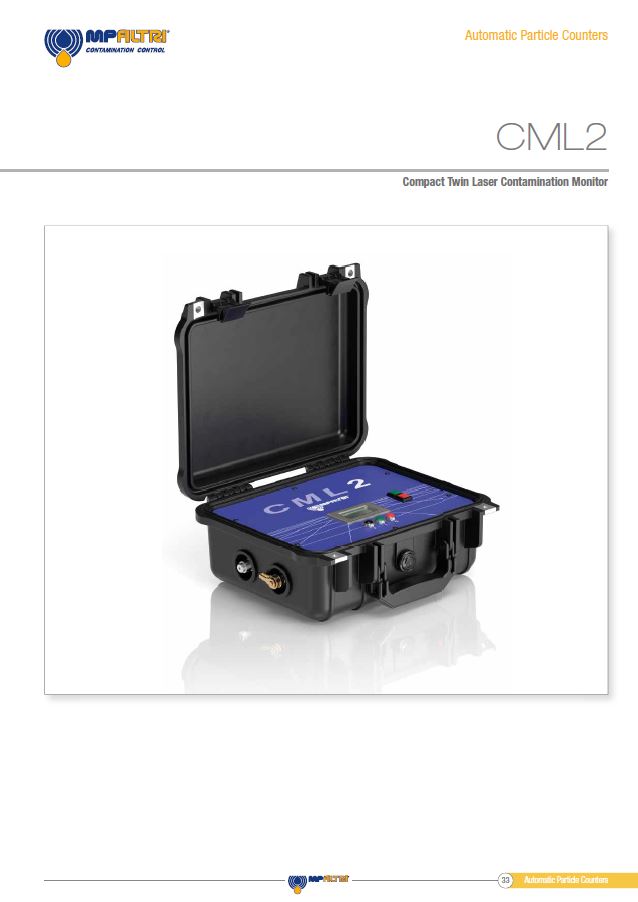

CML2 compact portable APC
CMP Automatic Particle Counters
LPA View: 5.93
