SGEA - SGEG - SGES - EGE

The flexible half couplings are used for the connection of IEC electric motors from size 63 to 400 and hydraulic pumps. They are available in different materials: aluminum, cast iron and steel. The spiders are available in NBR 75 Sh.A or in Polyurethane 95 Sh.A in function of the application.

POWER TRANSMISSION SOFTWARE    3D DOWNLOAD   TECHNICAL BROCHURE
  • FEATURES & BENEFITS
  • TECHNICAL DATA
  • LITERATURE

  • Total length shaft covered
  • Double key way
  • Grub screw to fit the coupling on the shaft
  • Spider covered by aluminum external ring - lower noise level
  • Complete range according to DIN740/2
  • Recovery of radial, angular and axial misalignment
  • Interchangeable with OMT – KTR – R+L HYDRAULICS

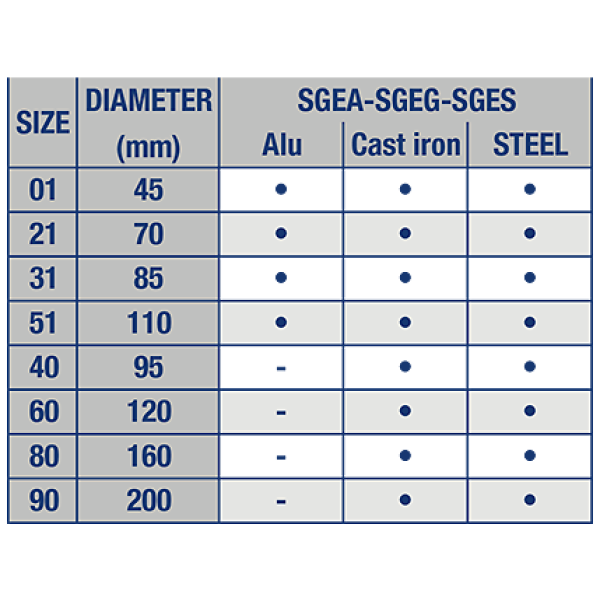

SIZE AND MATERIALS
SGEA_SGEG_SGES

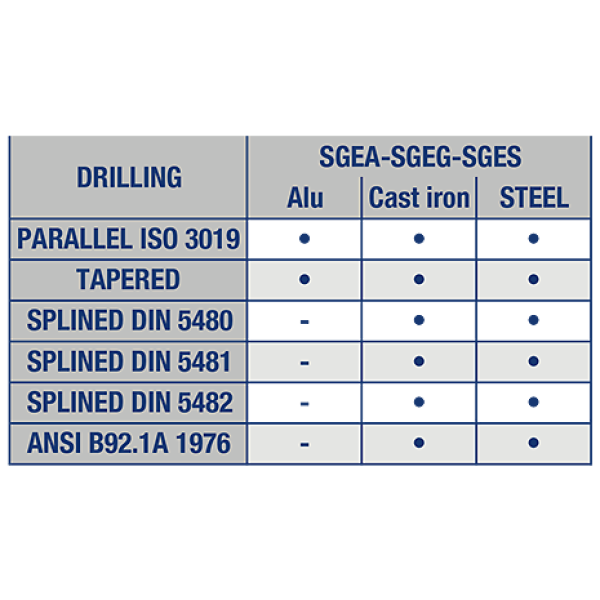

BORES AVAILABILITY
SGEA_SGEG_SGES
CATALOGS
Couplings

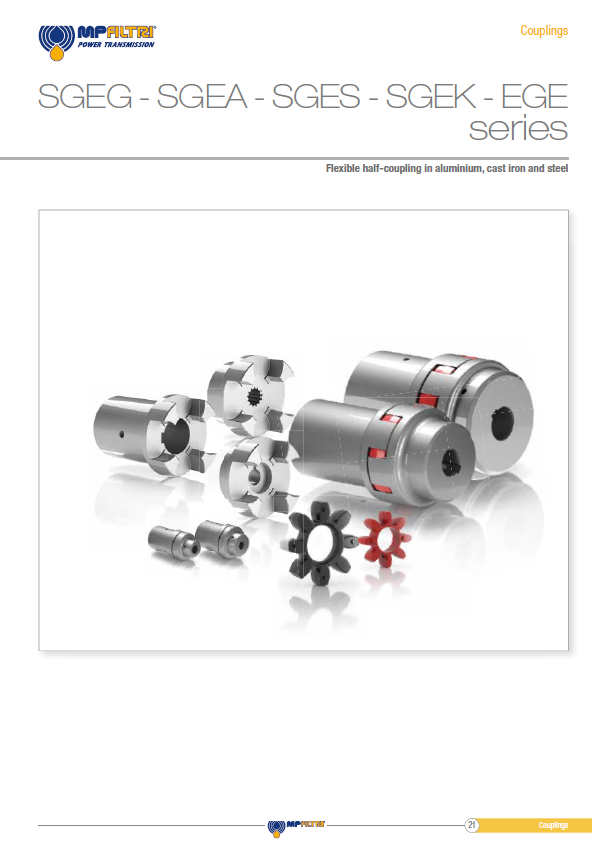

SGEA - SGEG - SGES flexible couplings
