AKG

Complete transmission couplings. Made of aluminum, cast iron, and steel, they are suitable for gear, piston, and screw pumps. Available for IEC electric motors from size 63 to 355, they can be mounted in potentially explosive areas and are ATEX2014/34/EU - Category 2G - Areas 1 - 2 certified and U.K. Regulation S.I. 2016 No. 1107.

POWER TRANSMISSION SOFTWARE    3D DOWNLOAD   TECHNICAL BROCHURE
  • FEATURES & BENEFITS
  • TECHNICAL DATA
  • LITERATURE

• Total length shaft covered. Double key way
• Grub screw to fit the coupling on the shaft
• Spider covered by aluminum external ring - lower noise level
• ATEX 2014/34/EU – category 2G – areas 1-2 & U.K. Regulation S.I. 2016 No. 1107
• Complete range according to DIN740/2
• Recovery of radial, angular and axial misalignment
• Interchangeable with OMT – KTR – R+L HYDRAULIC

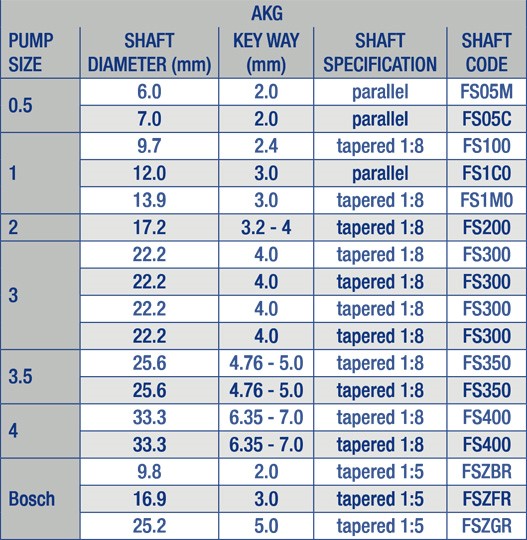

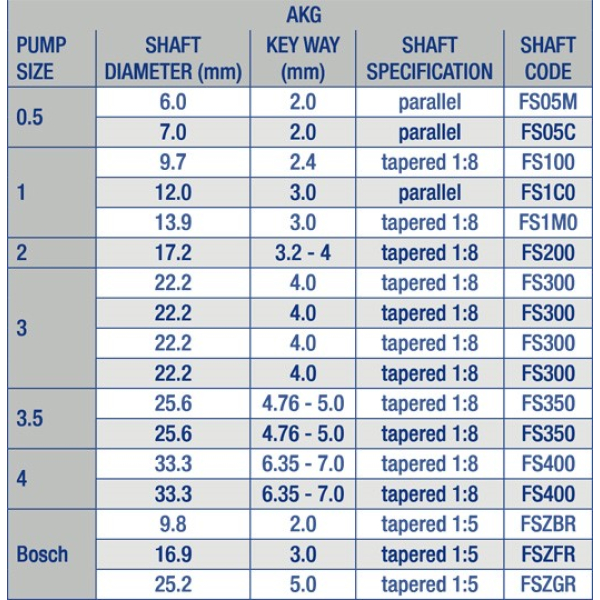

AKG couplings for gear pumps with cylindrical/conical shafts
AKG couplings for piston, vane or screw pumps with cylindrical and splined shafts
The codes of the AKG couplings for the above mentioned pumps are available on the site www.mpfiltri.com, in the tools section, by opening the software and selecting the combination of electric motor and hydraulic pump.
MANUALS
ATEX Drive Couplings Manual and Safety Instructions
CATALOGS

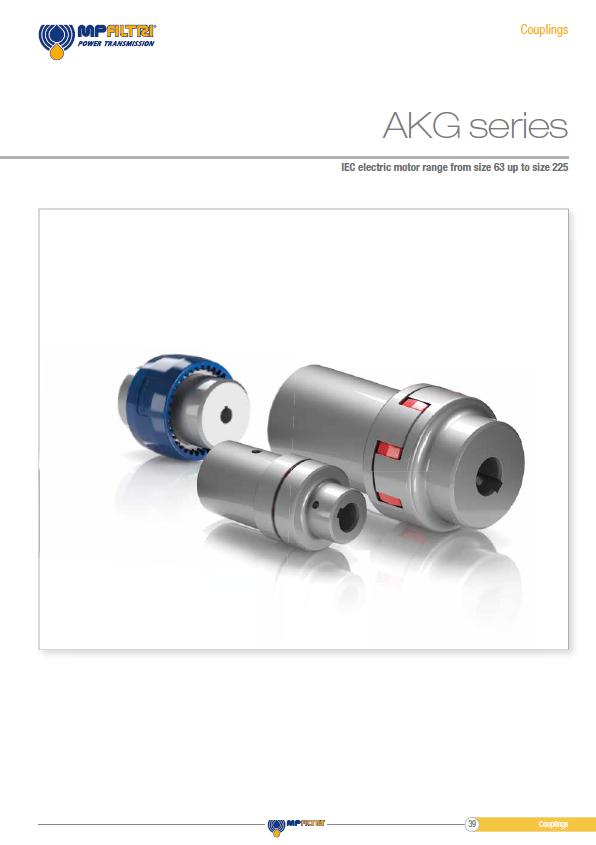

AKG Complete Coupling
