High-pressure in-line filter for mobile applications (FMM)

REGISTRATION

INFO

REQUEST INFO

FMM

In-line high pressure filter. Working pressure up to 6090 psi (420 bar), flow rates up to 66 gpm (250 l/min), threaded connections up to 1 1/4” BSP/NPT/SAE/ISO 6149.

FILTER SIZING 3D DOWNLOAD TECHNICAL BROCHURE

FEATURES & BENEFITS
TECHNICAL DATA
LITERATURE

In-line high pressure filter with compact dimensions and reduced weight, particularly suitable for mobile equipment applications and agricultural machines.

See the relevant table for compatibility on fluids.

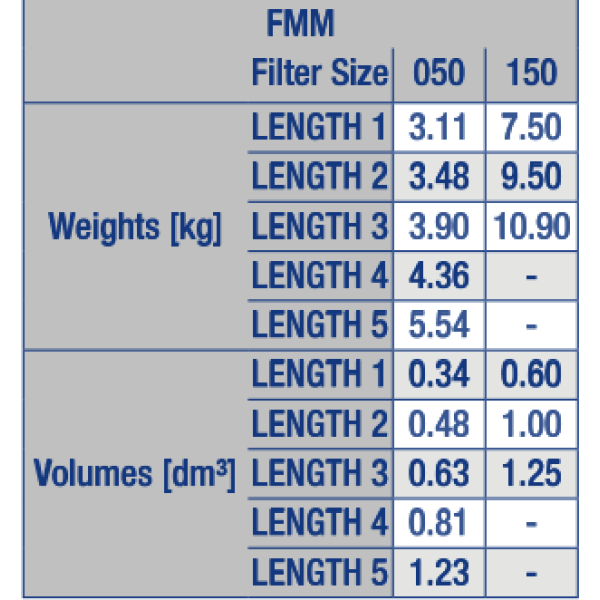

WEIGHTS AND VOLUMES

FMM

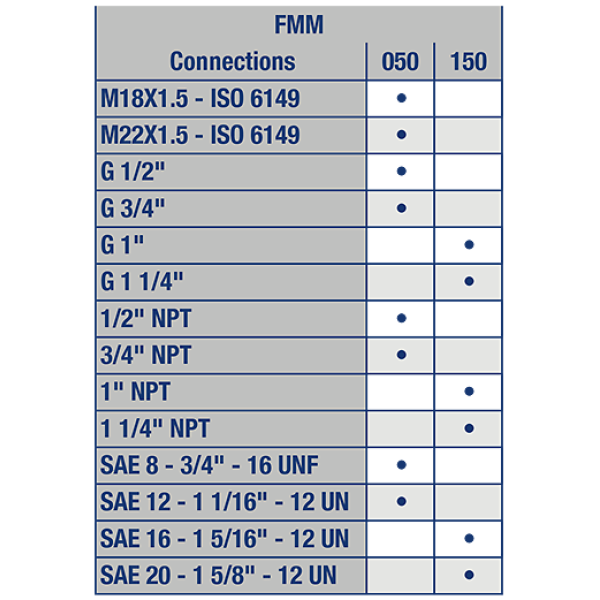

CONNECTIONS

FMM

BROCHURES

FILTER ELEMENT

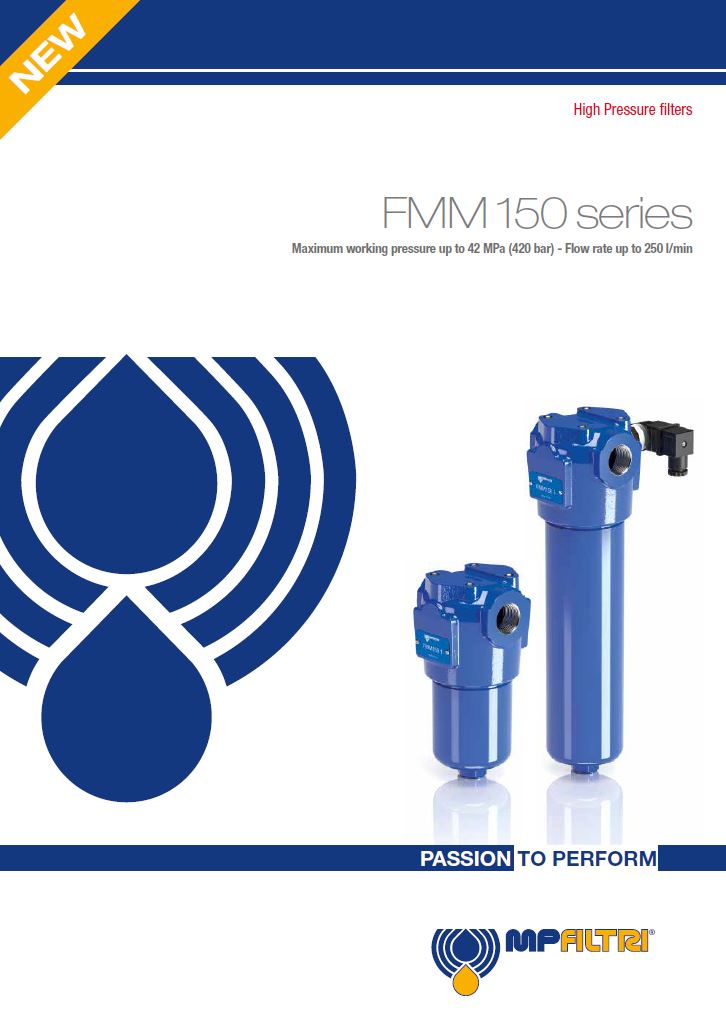

FMM150 high pressure

ATEX indicators

Product range

Hydraulic Filtration

zerospark THE ANTI-STATIC FILTER

CATALOGS

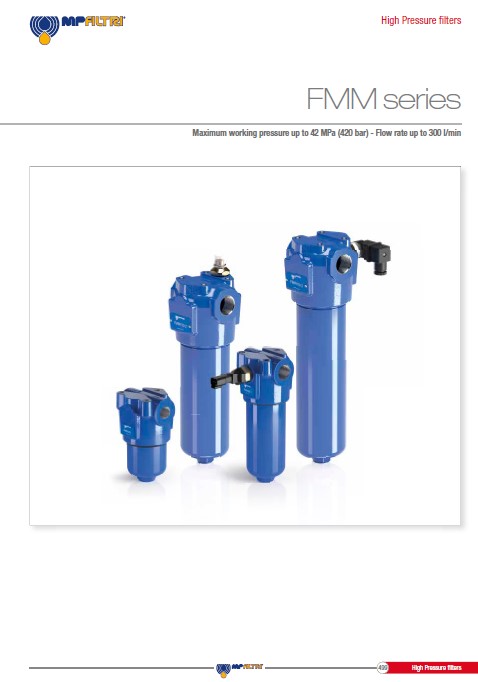

High Pressure filters

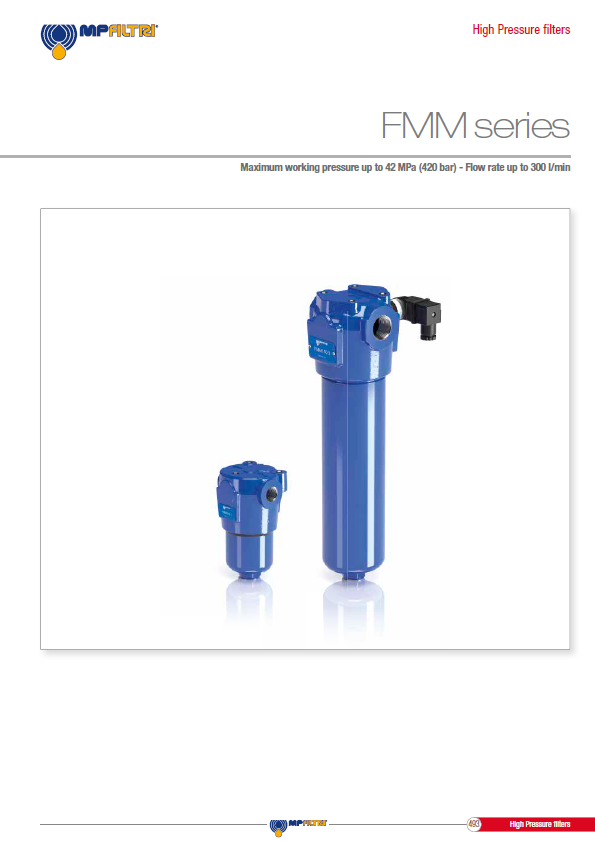

FMM high pressure

Hydraulic Filtration
